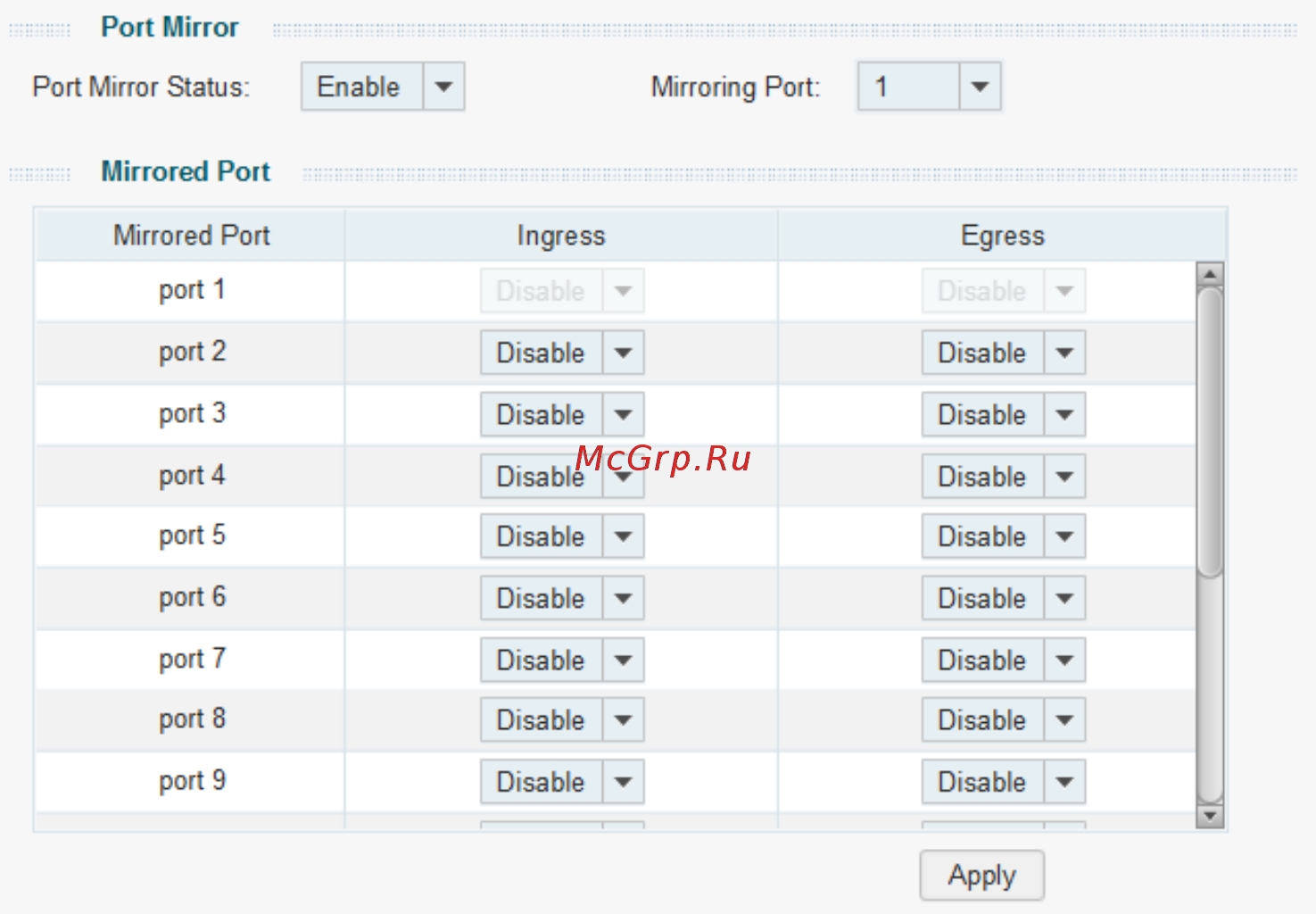

Figure 5-3 Port Mirror (for TL-SG1016DE/TL-SG1024DE/TL-SG1016PE)

The following entries are displayed on this screen:



Port Mirror

Port Mirror Status: Enable or disable the port mirror feature of the specified port.

Mirroring Port: Select a port from the drop-down list as the mirroring port.



Mirrored Port

Mirrored Mode: Select a mode as the mirrored mode.

Ingress: the incoming packets received by the mirrored

port will

be copied to the mirroring port.

Egress:

the outgoing packets sent by the mirrored port will be

copied to the mirroring port.

Both:

all the incoming and outgoing packets of the mirrored port

will be copied to the mirroring port.

Note: For TL-SG1016DE/TL-SG1024DE/TL-

SG1016PE, you can

choose enable or disable Ingress and Egress

to control the

packets to be copied.

Mirrored Ports: Click the port icon to select the corresponding port as

mirrored

port to monitor the traffic.

For TL-SG108E V1.0, with

only one port as mirrored port, it

supports ingress and egress monitoring; when two or more

ports is selected as mirrored ports, it only supports the ingress

monitoring.
