 QoS Mode

This switch implements three priority modes based on port, on 802.1P and on DSCP. By default,

the priority mode based on port is enabled and the other two modes are optional.

1. Port Based

When port-base QoS mode is enabled, the user can manually map the ingress packets of the

port to four different priority queues. After that, the switch will preferentially send packets in

the queue with higher priority, and only when the queue with higher priority is empty, packets in

the queue with lower priority are sent.

2. 802.1P Based

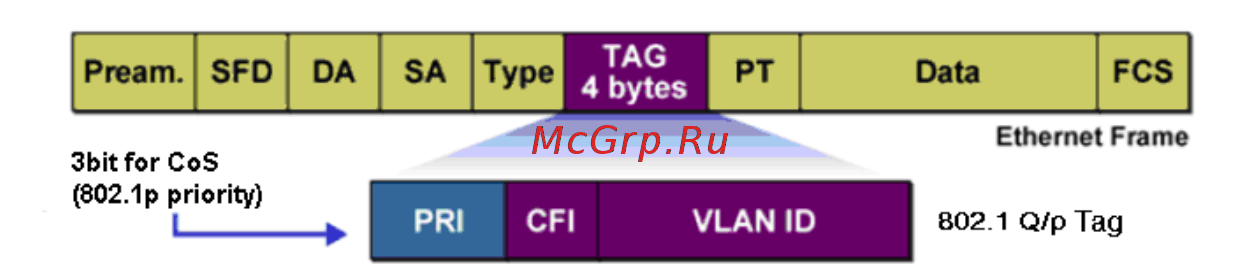

Figure 7-2 802.1Q Frame

As shown in the figure above, each 802.1Q Tag has a Pri field, comprising 3 bits. The 3-bit

priority field is 802.1p priority in the range of 0 to 7. The 802.1p priority value determines how

the switch maps the ingress packets to the priority queues. The mapping relationship between

eight 802.1p priority value and priority queues is shown as follows:

 Priority 1 and 2 are assigned to the 1 (Lowest) priority queue.

 Priority 0 and 3 are assigned to the 2 (Normal) priority queue.

 Priority 4 and 5 are assigned to the 3 (Medium) priority queue.

 Priority 6 and 7 are assigned to the 4 (Highest) priority queue.

When 802.1P QoS mode is enabled, the switch will automatically map the ingress packets to

priority queues based on the 802.1p priority and the above mapping relationship. After that,

packets in all the queues are sent in order based on the weight value for each queue. The

switch implements four scheduling queues, TC1, TC2, TC3 and TC4. TC1 has the lowest priority

while TC4 has the highest priority. The weight value ratio of TC1, TC2, TC3 and TC4 is 1:2:4:8.

As for the untagged packets, the switch will forward it according to the default priority mode.
