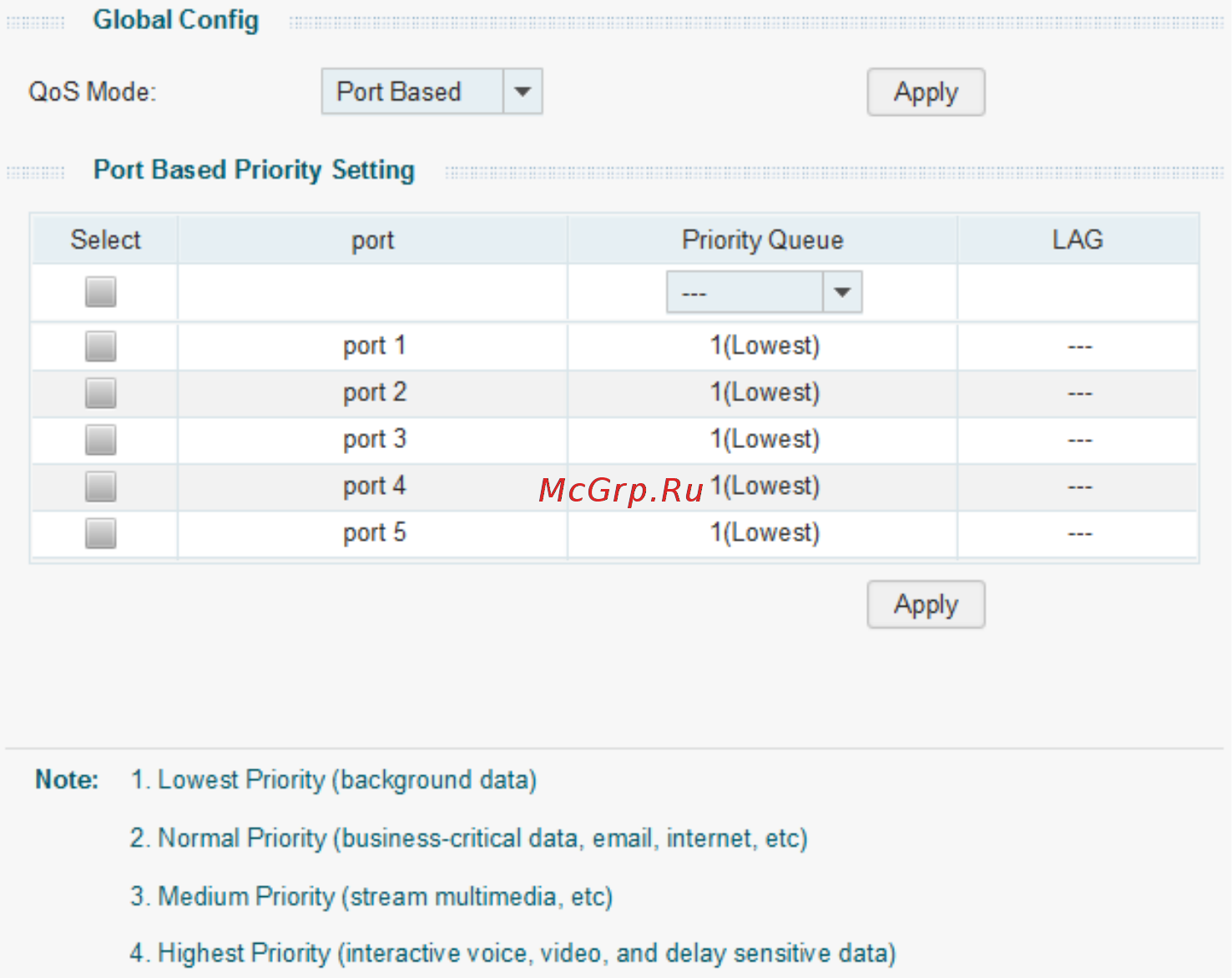

Figure 7-4 QoS Basic

The following entries are displayed on this screen:



Global Config

QoS Mode:

Select the desired QoS mode.

• Port Based:

The packets are mapped to 4 priority levels based on

ingress port.

• 802.1P Based:

The switch classifies the ingress packets

and maps the packets to different priority queues based

on the 802.1p priority field in the 802.1Q tag.

• DSCP Based:

The switch classifies the ingress packets

and maps the packets to different priority queues based

on the DSCP priority field in the IP ToS field.



Port Based Priority Setting

Select:

Select the desired port for configuration. It is multi-optional.

Port:

Displays the port number.

Priority Queue:

Specify the priority queue the packets from the port are

mapped to. The priorities are labeled as 1~4 and among them

the bigger the value, the higher the priority.

LAG:

Displays the LAG number which the port belongs to.
