RIGOL
User’s Guide for DS1000B Series
2-85

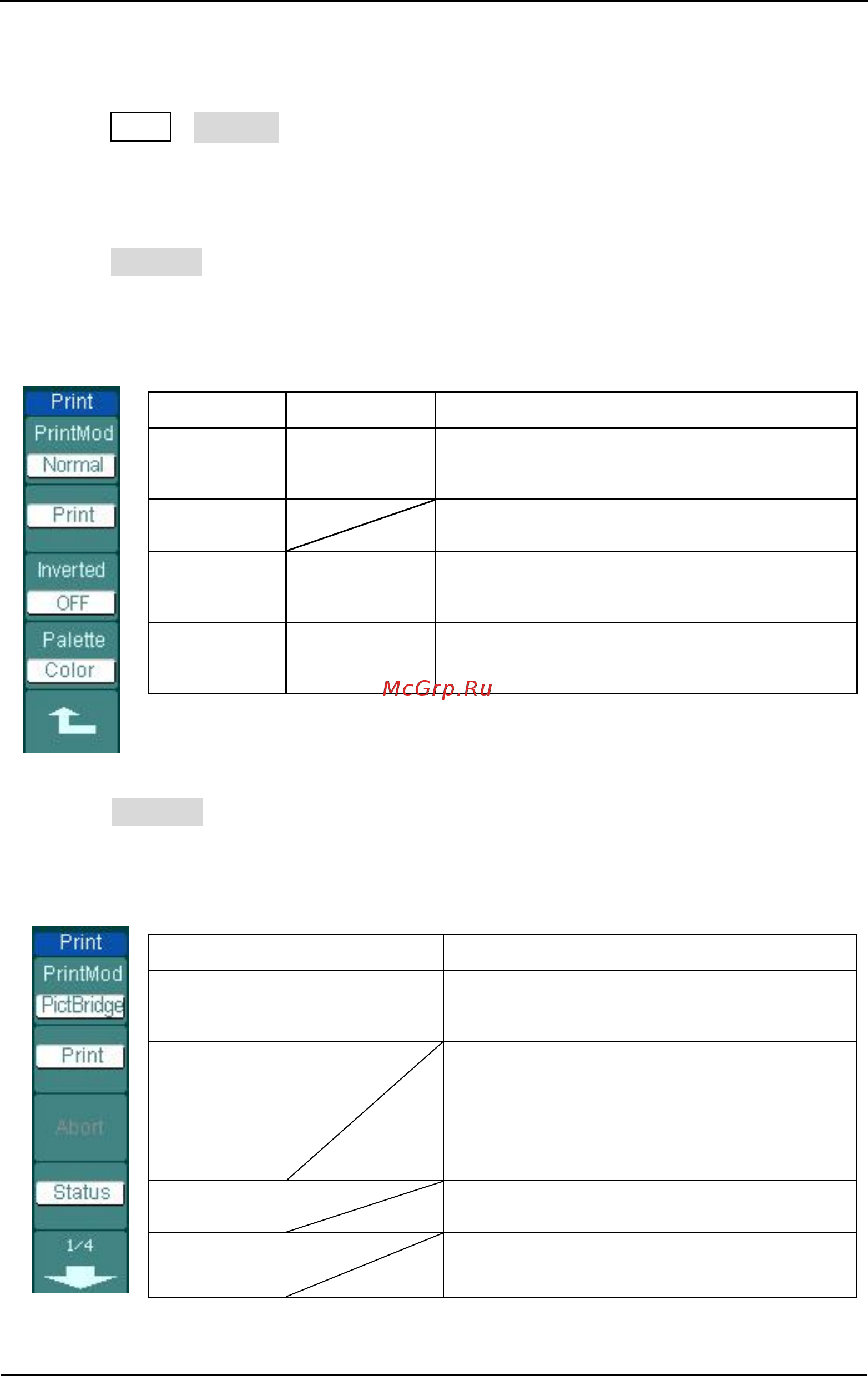

2. To set up print parameters:
Press Utility→Print set to into a setting menu. Please setup the printer type and
the print mode as the case may be, or else the instrument will refuse printing if
they can’t match well.
Press PrintMod button, choose the print mode as Normal, and navigate into the
following menu.
Figure 2-116 Table 2-68 Print Set menu (Normal mode)
Menu
Settings
Comments
PrintMod
Normal
PictBridge
Set the print mode as normal.
Set the print mode as PictBridge.
Print Execute the print operation.
Inverted
ON
OFF
Invert the color for print.
Print original color.
Palette
Gray scale
Color
Set up the print color.
Press PrintMod button, choose the print mode as PictBridge, and navigate into
the following menu.
Figure 2-117 Table 2-69 Print Set menu (PictBridge mode, Page 1/4)
Menu Settings Comments
PrintMod
Normal
PictBridge
Set the print mode as normal.
Set the print mode as PictBridge.
Print
Continue
Execute the print operation.
The menu will turn to “Continue” once
appears recoverable error
. To print
continuously, press this button.
Abort
Abort the printing.
Status
Inquire about the current status of the
printer.
