Functional Check

Perform this quick functional check to verify that the instrument is operating

correctly.

1. Turn on the instrument

Use the power cord designed for the oscilloscope only to connect the instrument

and AC power which delivers 100 to 240 VAC

RMS

, 45Hz to 440Hz. Press the

power switch to turn on the instruments, waiting until the display shows the

waveform window.

2. Recall factory setting

Press Storage → Storage → Factory → Recall, to recall factory setting.

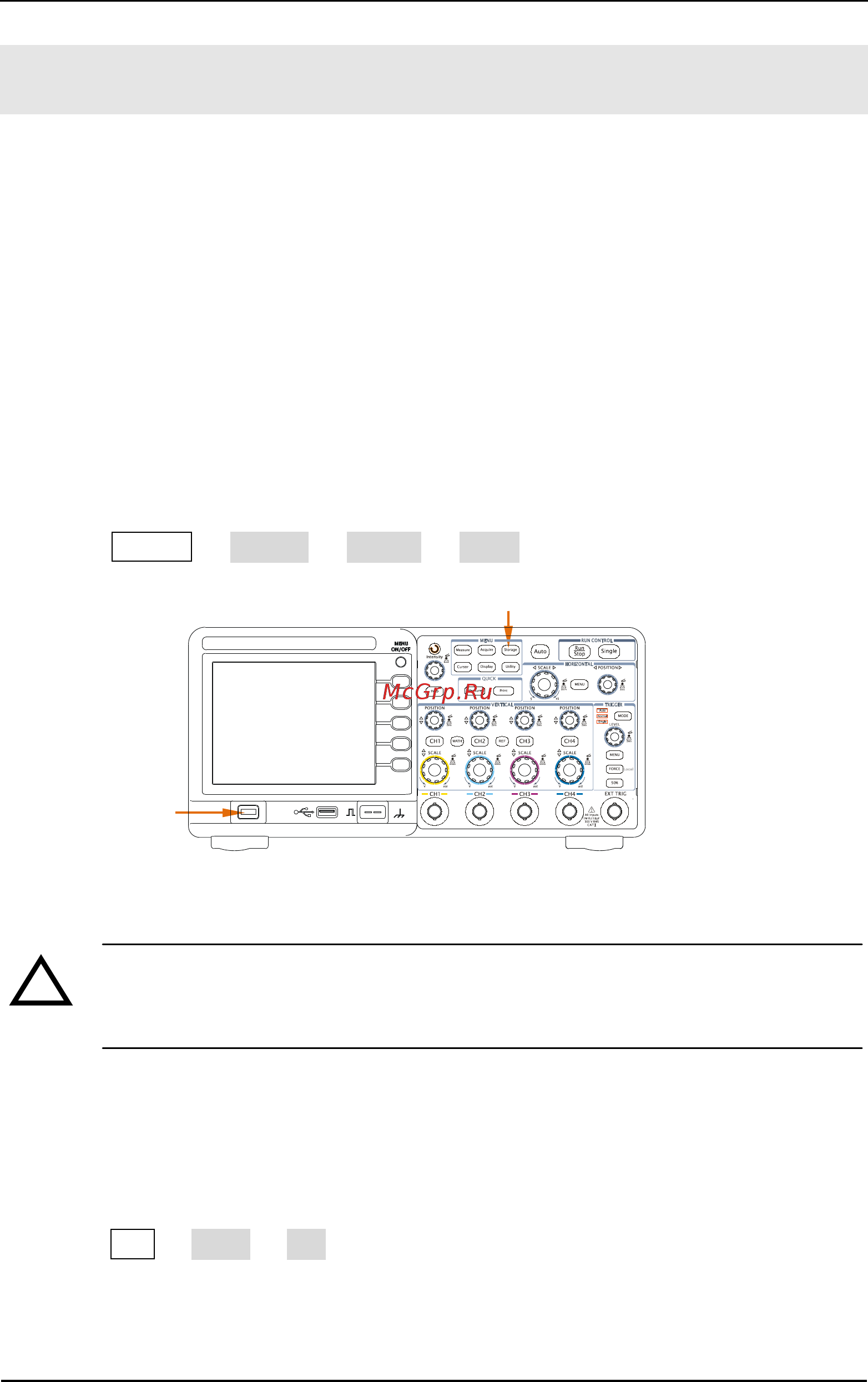

Figure 1-4 Button explanation

WARNING

To avoid electric shock, be sure the oscilloscope is properly grounded.

3. Input a signal to a channel of the oscilloscope

 Push BNC plug of probe into CH1 BNC connector, then twist the BNC cable to

right to lock the probe in place. Switch on the probe to 10X.

 Press CH1 → Probe → 10X to set probe attenuation of the oscilloscope, so as to

make sure the measurement result is correct. (Default probe attenuation scale is

1X.)

Storage Button

Power

Switch
