Rigol DS1104B [92/168] U disk selection

RIGOL

User’s Guide for DS1000B series

2-62

U-disk Selection

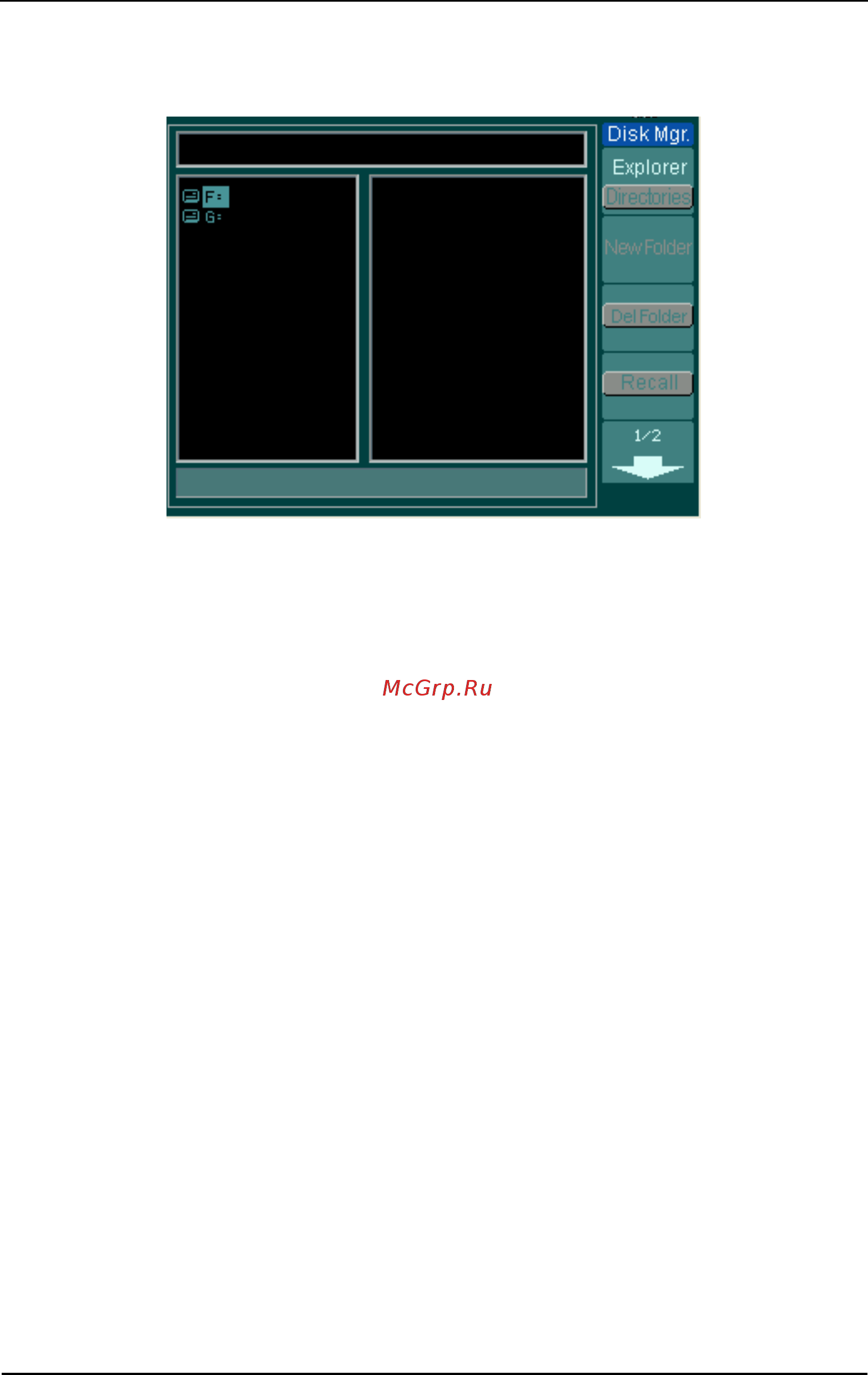

Figure 2-78 U-disk selection

DS1000B series have two USB Host ports on the front and rear panel. When both

ports were inserted USB flash drive, the screen will appear a U-disk selection

interface as Figure 2-78. Turn the multifunction knob to choose the driver. The front

one marked “F:” and the rear one “G:”.
