RIGOL

User’s Guide for DS1000B Series

1-17

To Understand the Quick Function

The following figure shows that there are two buttons in the QUICK function area.

The exercise below will gradually conduct you to familiarize the settings of the

buttons.

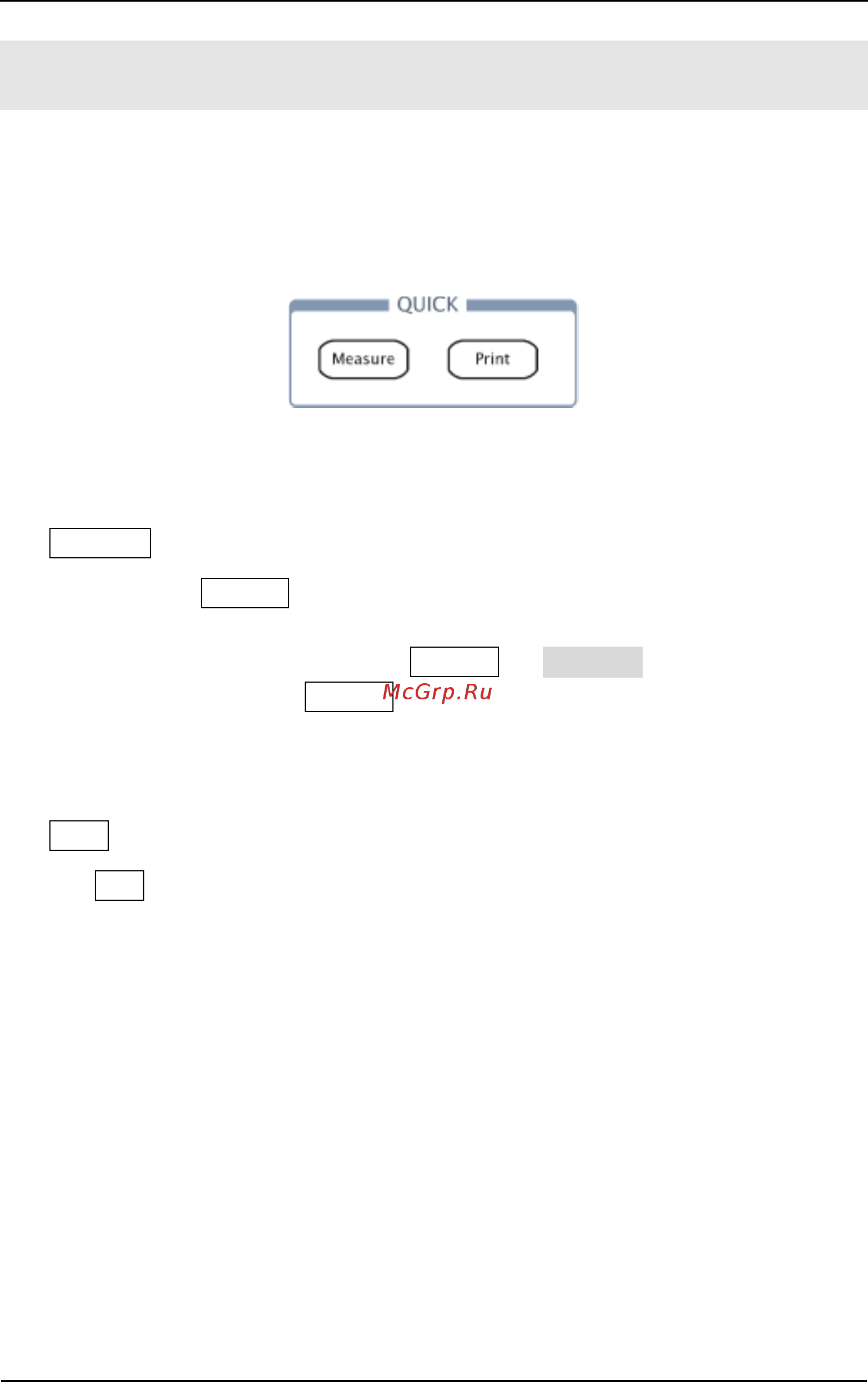

Figure 1-12

The quick function menu

1. Measure

There are two Measure buttons on the front panel, belonging to Function Menu

area and Quick Function area respectively. Firstly, you need to pre-set up three

items from 22 measurements via Measure → QuickMea from Function Menu

area, and then press Measure as shown in figure 1-12 to enter quick

measurement, three measuring parameters pre-defined will be displayed on the

screen.

2. Print

Use Print button to perform a quick print or store data to USB flash device.

 To execute print operation if connecting the printer since it has a higher priority.

 To store the measurement results to USB flash device in current format such as

Waveform, Setups, 8 Bitmap, 24 Bitmap, PNG or CSV. Furthermore, it will be

stored as 8-Bitmap automatically when selecting “Factory”.
