Rigol DS1104B [91/168] External memory

RIGOL

User’s Guide for DS1000B Series

2-61

External Memory

Press Storage→ External to go to the following interface.

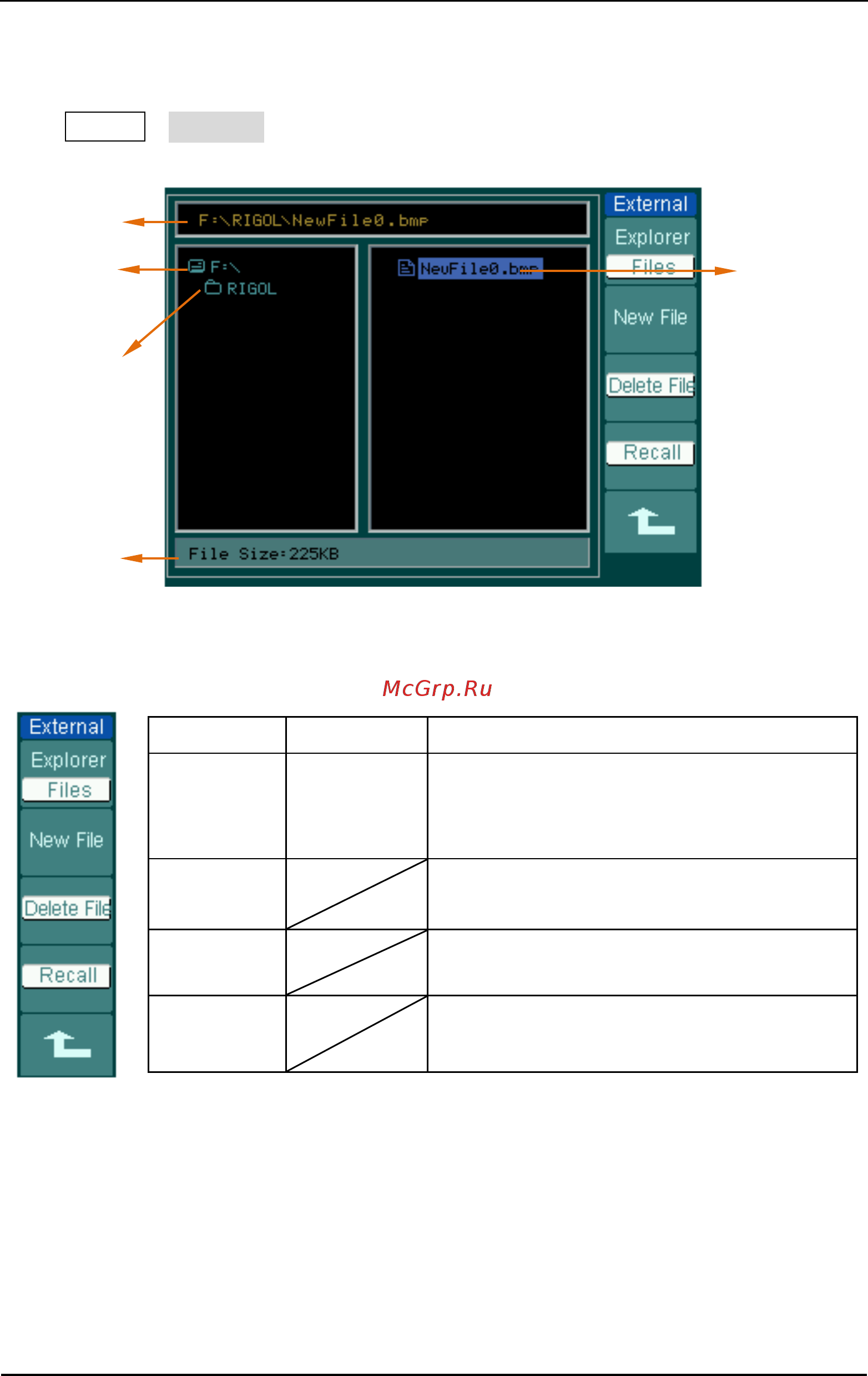

Figure 2-76 External memory interface

Figure 2-77 Table 2-47 The Memory menu

Menu Settings Comments

Explorer

Path

Directories

Files

Switch among Path, Directory and File.

New File

(Folder)

To create new file or folder.(see table

2-18)

Delete File

(Folder)

Delete file (Folder).

Recall

Recall waveform and setup

from USB

flash device.

Current

Folder

Path

File

Back to

Folder

File Info.
