User’s Guide for DS1000B series

2-100

Key Points:

1. Select the signal channel for measuring. CH1, CH2, CH3, CH4 according to the

interest. Press soft buttons as follows: Measure→Source→CH1, CH2, CH3 ,

CH4.

2. To see all measurement values, Press No.2 button to set the Display All to ON.

18 measurement parameters will be displayed on the screen.

3. Select parameters page for measuring; press No.2 or No.3 button to select

voltage or time parameters pages by pressing soft button as follows: Measure

→Voltage or Time →Vmax, Vmin……

4. To get the measured value on the screen; select the parameters of interest by

pressing the soft button on the right of the menu, and read the data on the

bottom of the screen.

If the data is displayed as “*****”, it means the parameter cannot be measured

in current condition.

5. Clear the measure values: press No.4 button Clear to clear away all of the auto

measure values would disappear from the screen.

6. In Display All mode, there are 18 types of parameters could be used and the

measuring result up to 3 are shown below the screen. When the display area are

filled up 3 results, the new one will be displayed on the very right instating of the

earliest, meanwhile the other two results removed left in turn.

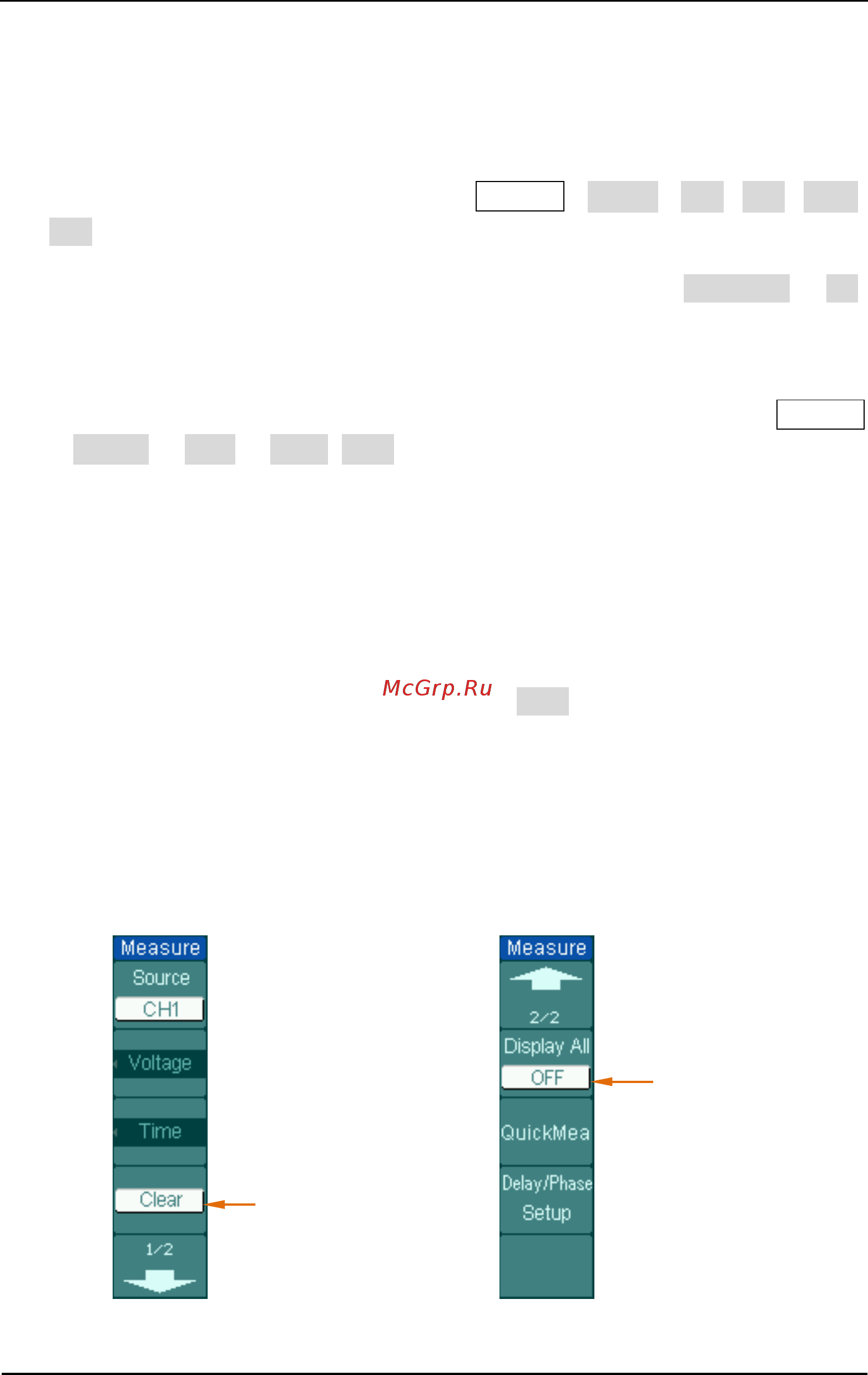

Figure 2-139 Explanation of the menu

Clear Measured

Parameters

Turn on/off the mass

measurement
