RIGOL
User’s Guide for DS1000B series
2-38

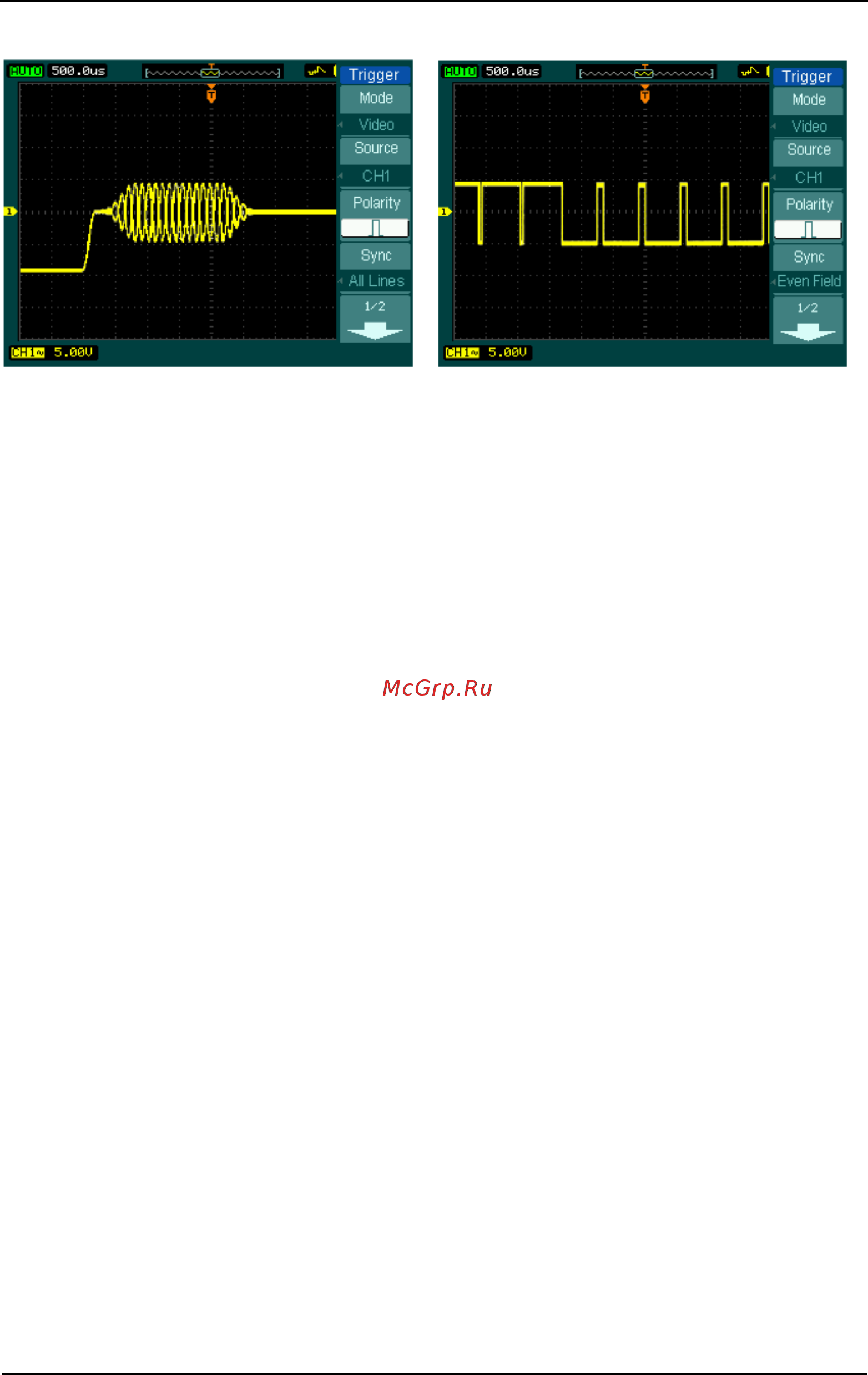

Select “Line Synchronization”: Select “Filed Synchronization”:
Figure 2-45 Figure 2-46
Video Trigger: Line Synchronization Video Trigger: Field Synchronization
