User’s Guide for DS1000B Series

2-45

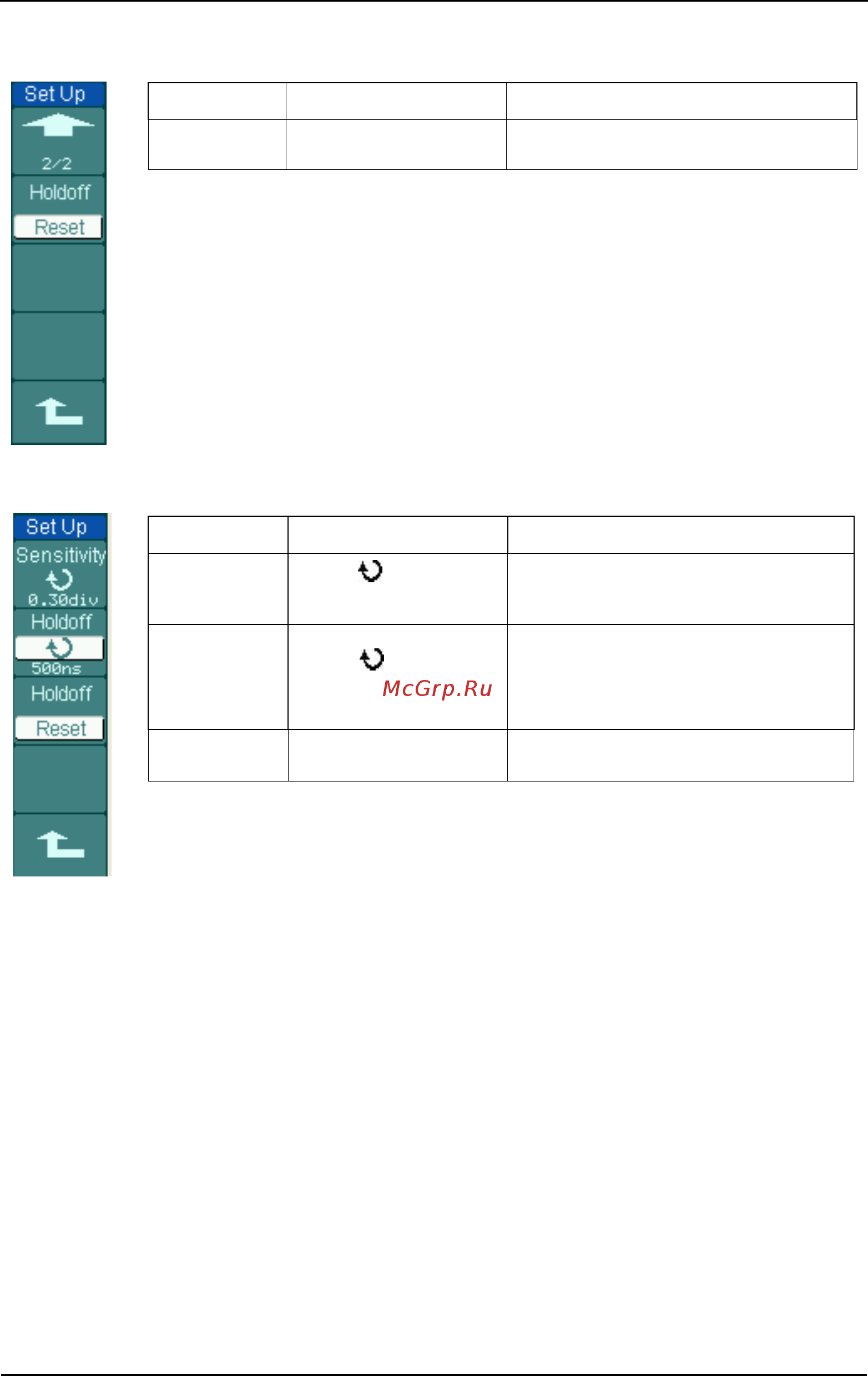

Figure 2-56 Table 2-35 Page 2/2 Settings for Edge, Pulse and Pattern Triggers

Menu Settings comments

Holdoff

Reset Reset Holdoff time to 500ns.

Figure 2-57 Table 2-36 Settings for Video Trigger

Menu Settings Comments

Sensitivity

Set trigger sensitivity between

0.1div to 1.00div.

Holdoff

Set time slot before another

trigger event between 100ns to

1.5s.

Holdoff Reset Reset Holdoff time to 500ns.
