Gigabyte GA-8ID2003 [17/96] Power supply
![Gigabyte GA-8ID2003 [17/96] Power supply](/views2/1047422/page17/bg11.png)
Hardware Installation Process
English
- 13 -
Step 4: Connect ribbon cables, cabinet wires and
power supply

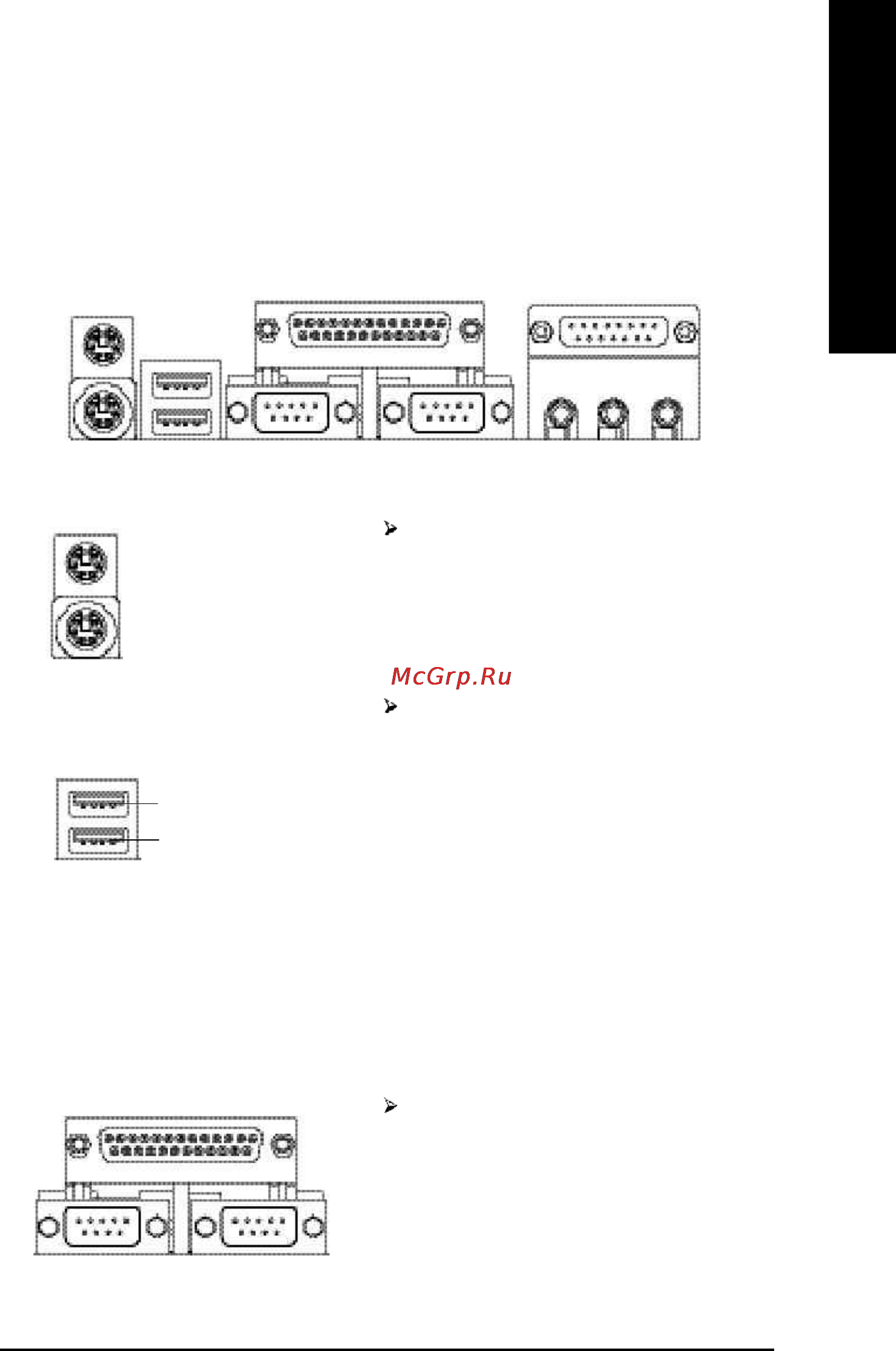

Step 4-1: I/O Back Panel Introduction
u PS/2 Keyboard and PS/2 Mouse Connector
This connector supports standard PS/2
keyboard and PS/2 mouse.
PS/2 Mouse Connector
(6 pin Female)
PS/2 Keyboard Connector
(6 pin Female)
u
v
w
x
y
w Parallel Port and Serial Ports (COMA / COMB)
This connector supports 2 standard COM ports
and 1 Parallel port. Device like printer can be
connected to Parallel port; mouse and modem
etc. can be connected to Serial ports.
Parallel Port
(25 pin Female)
COMA COMB
Serial Port (9 pin Male)
v USB Connector
Before you connect your device(s) into USB
connector(s), please make sure your device(s)
such as USB keyboard,mouse, scanner, zip,
speaker...etc. Have a standard USB interface.
Also make sure your OS supports USB controller.
If your OS does not support USB controller, please
contact OS vendor for possible patch or driver
upgrade. For more information please contact your
OS or device(s) vendors.
USB 0
USB 1
