Hardware Installation Process
English
- 25 -

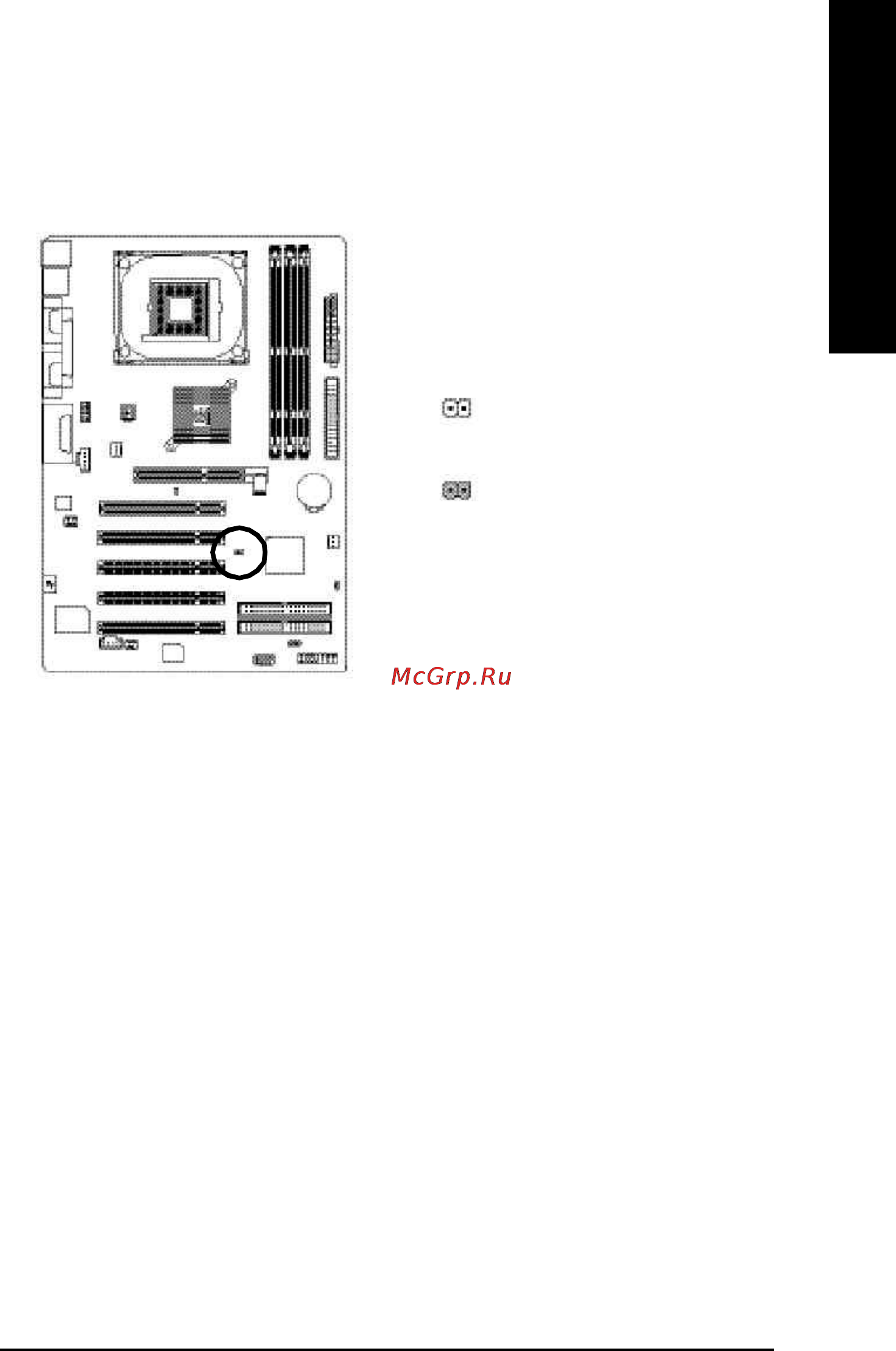

18) CLR_PWD
When Jum per is set to "open" and system is restarted, the password that is set will be cleared.
On the contrary when Jumper is set to "close", the current status remains.
open: Clear password
close: Normal
