Hardware Installation Process
English
- 23 -

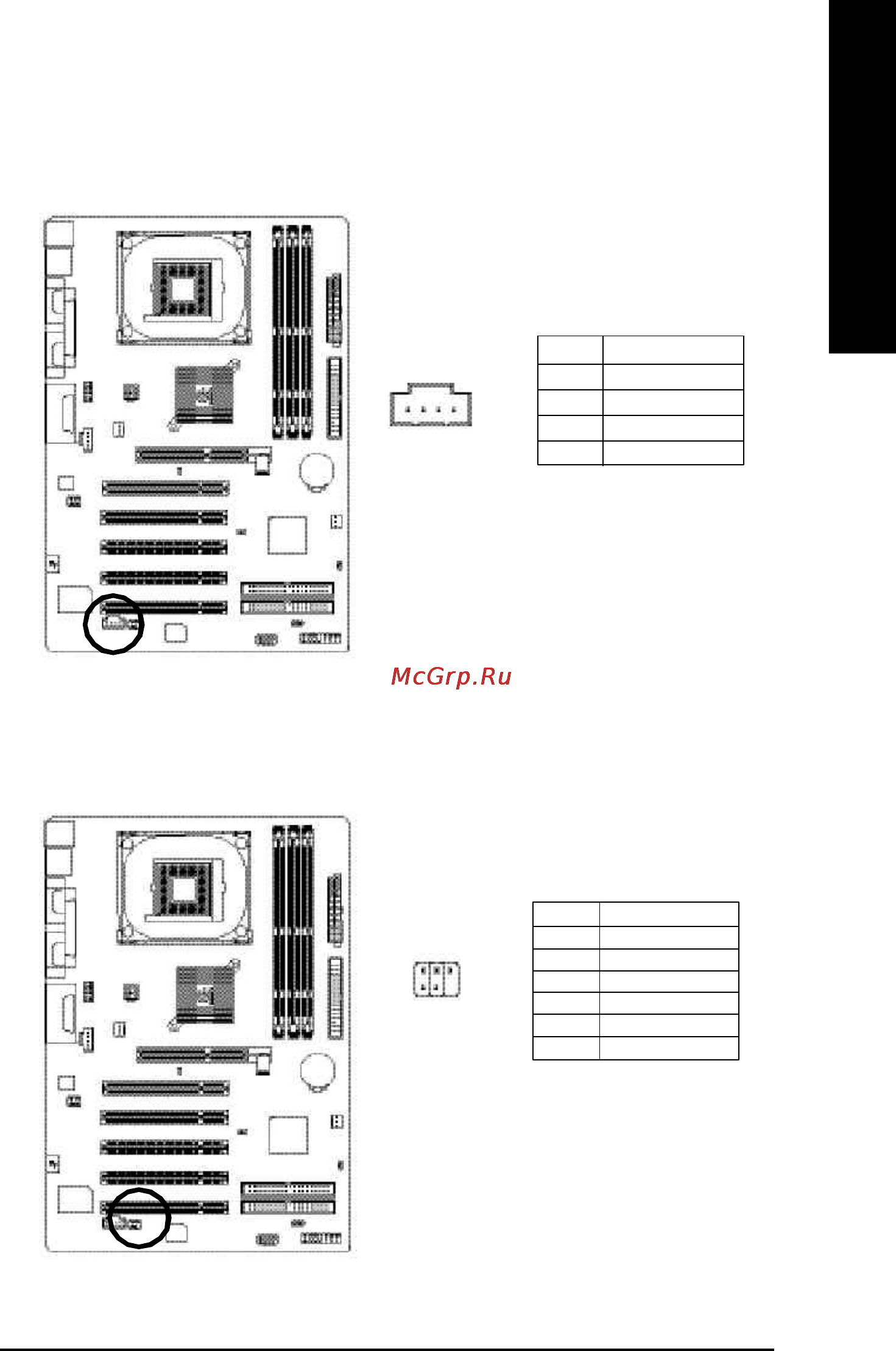

15) SPDIF_IO (SPDIF In/Out)*
The SPDIF output is capable of providing digital audio to external speakers or compressed AC3 data
to an external Dolby Digital Decoder. Use this feature only when your stereo system has digital input
function. Use SPDIF IN feature only when your device has digital output function.
Pin No. Definition
1 VCC
2 No Pin
3 SPDIF
4 SPDIFI
5 GND
6 GND
15
2
6
14) AUX_IN (AUX In Connector)
Connect other device (such as PCI TV Tunner audio out) to the connector.
Pin No. Definition
1 AUX-L
2 GND
3 GND
4 AUX-R
1
"*" For GA-8ID2003-P only
