- 24 -
GA-8ID2003 Series Motherboard
English

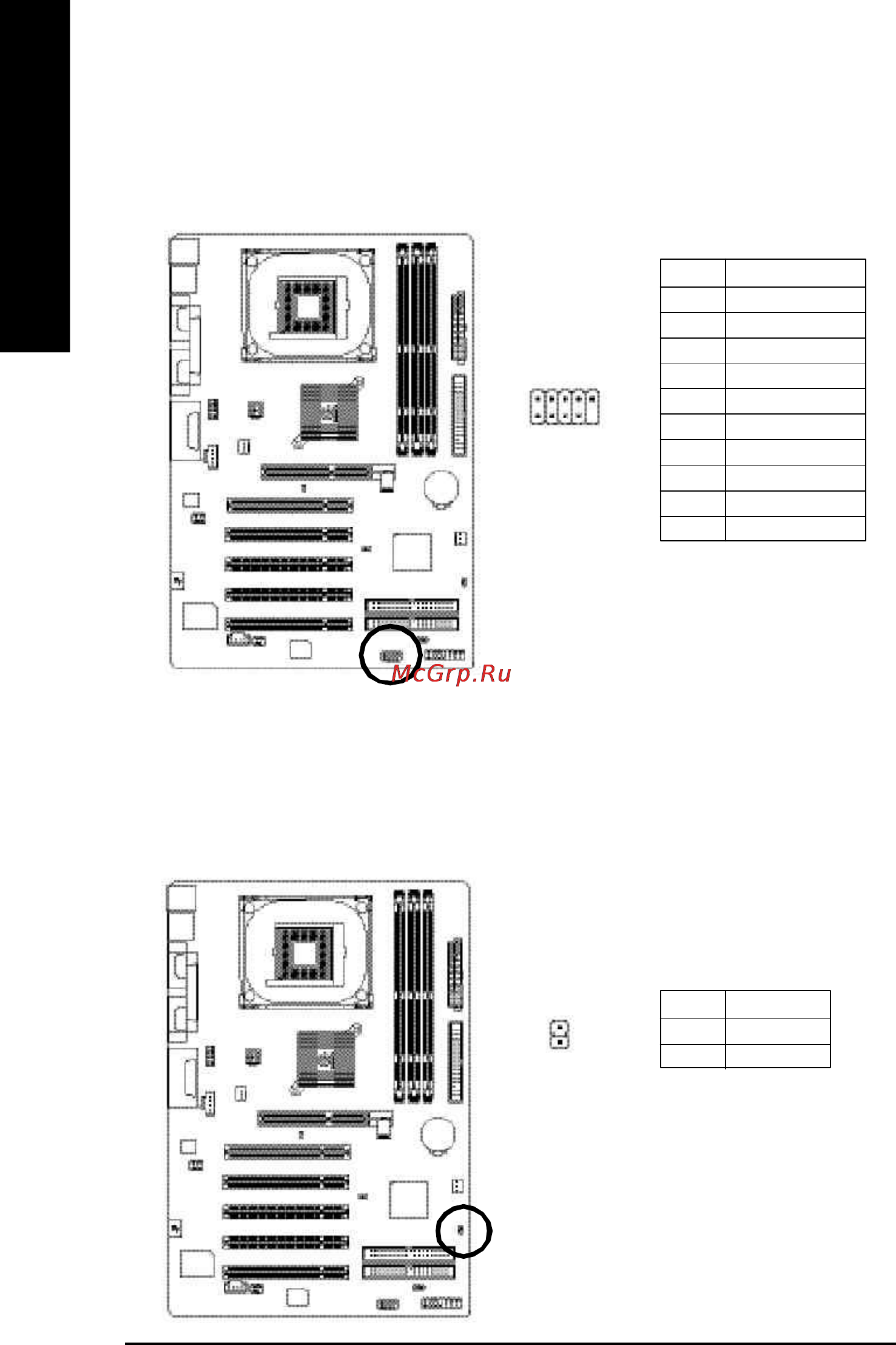

17) CI (CASE OPEN)
This 2-pin connector allows your system to enable or disable the "Case Open" item in BIOS, if the
system case begin rem ove.
Pin No. Definition
1 Signal
2 GND
1
16) F_USB1 (Front USB Connector, Yellow)
Be careful with the polarity of the front USB connector. Check the pin assignment while you
connect the front USB cable. Please contact your nearest dealer for optional front USB cable.
Pin No. Definition
1 Power
2 Power
3 USB Dx-
4 USB Dy-
5 USB Dx+
6 USB Dy+
7 GND
8 GND
9 No Pin
10 NC
1 9
2 10
