Gigabyte GA-8ID2003 [67/96] English

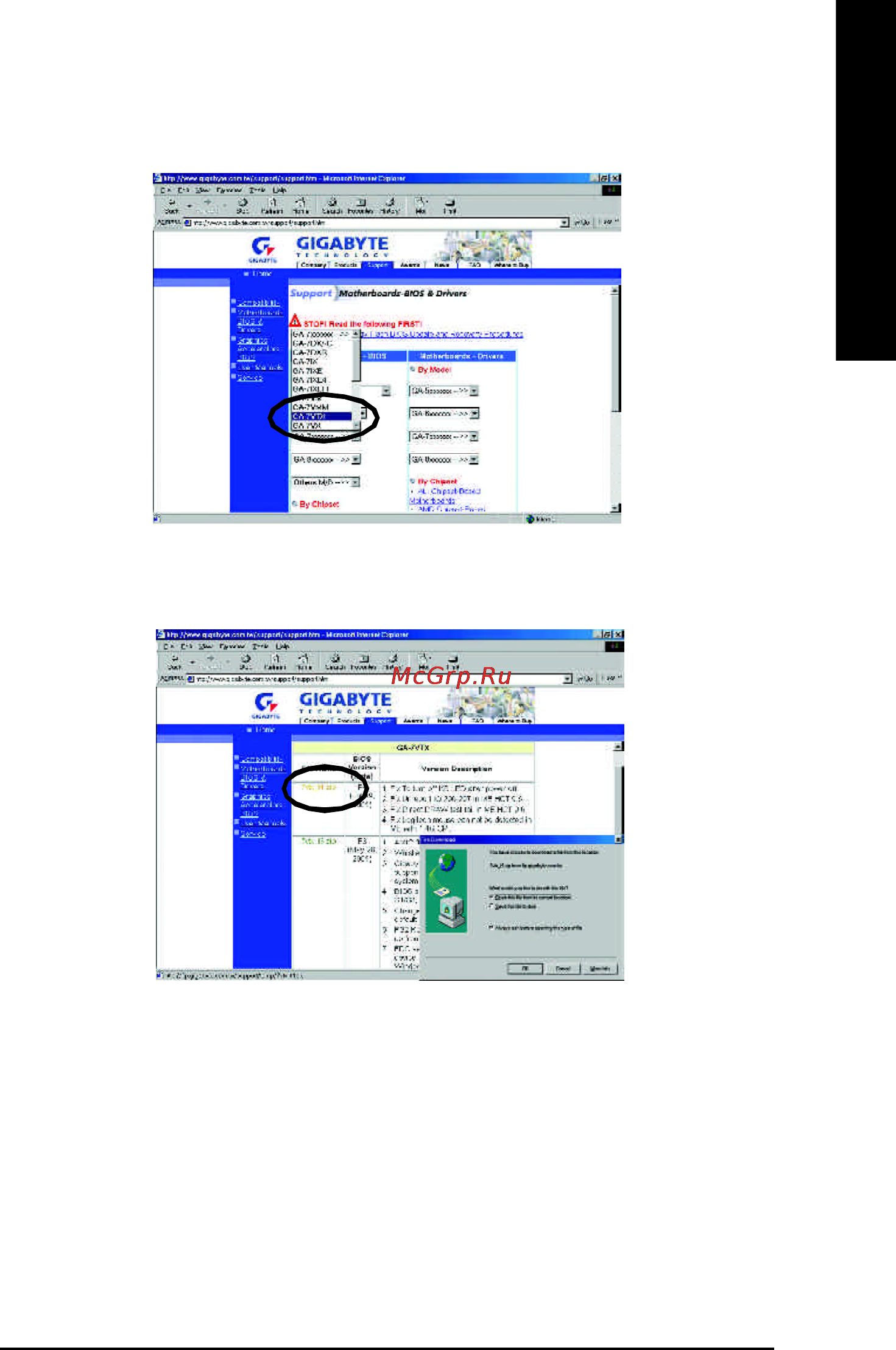

![Gigabyte GA-8ID2003 [67/96] English](/views2/1047422/page67/bg43.png)
Technical Reference
- 63 -
English
(3) We use GA-7VTX motherboard as example. Please select GA-7VTX by Model or Chipset optional
menu to obtain BIOS flash files.
(4) Select an appropriate BIOS version (For example: F4), and click to download the file. It will pop up
a file download screen, then select the "Open this file from its current location" and press "OK".
8id2003_2002_t.p65 2003/3/14, 上午 11:1863
