Technical Reference
- 73 -
English
Revision History2-/4-/6-Channel Audio Function Introuction *

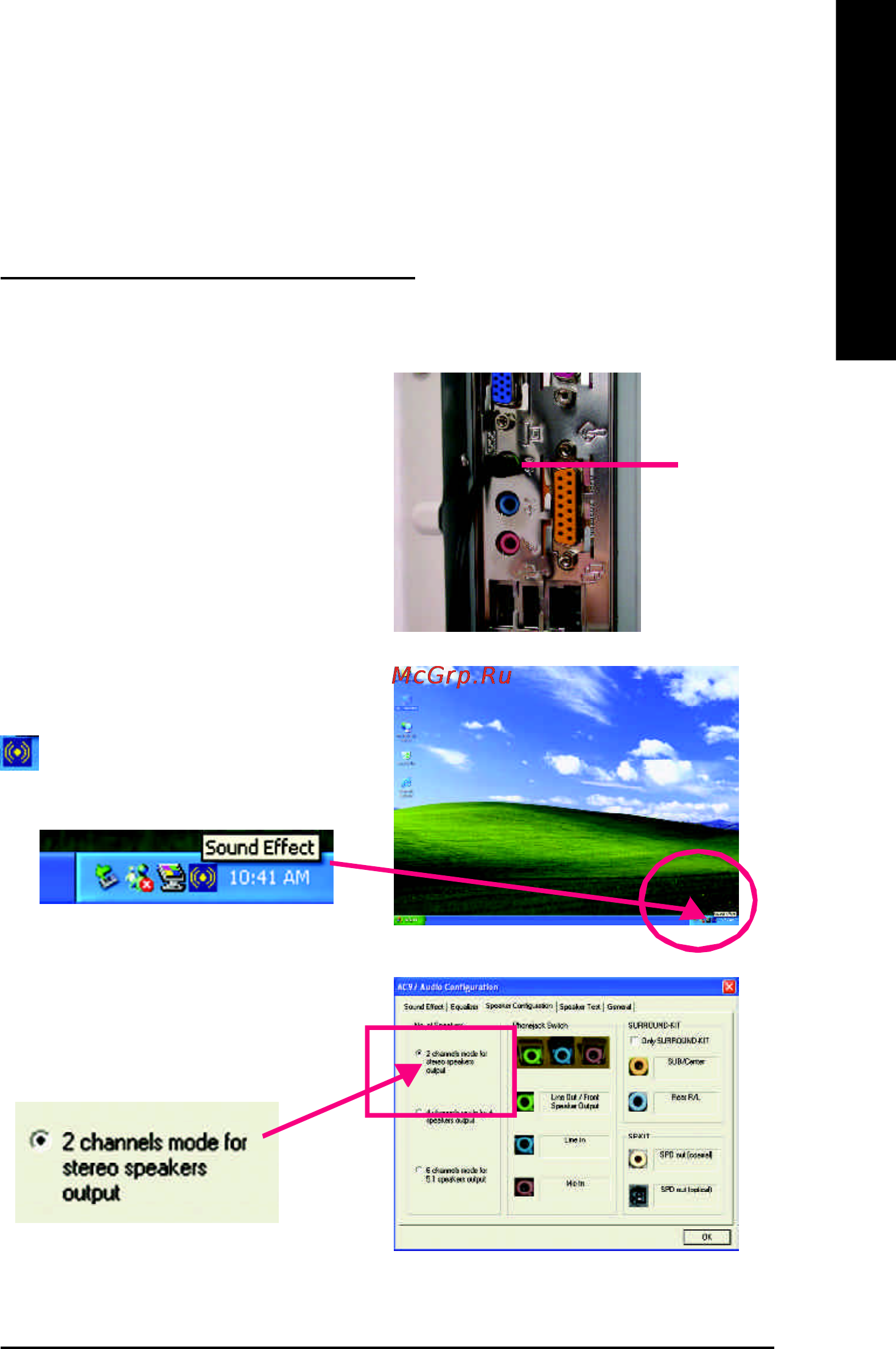

Stereo Speakers Connection and Settings:
STEP 3:
Select "Speaker Configuration", and choose the
"2 channels for stereo speakers out put".
We recommend that you use the speaker with amplifier to acqiire the best sound effect if the stereo output
is applied.
STEP 1:
Connect the stereo speakers or earphone to "Line
Out".
STEP 2 :
After installation of the audio driver, you'll find an
icon on the taskbar's status area. Click the
audio icon "Sound Effect" from the windows tray at
the bottom of the screen.
The installation of windows 98SE/2K/ME/XP is very simple. Please follow next step to install the
function!
Line Out
"*" For GA-8ID2003-P only
8id2003_2002_t.p65 2003/3/14, 上午 11:1873
