Magicard Rio Pro [24/33] Cleaning the printhead using the cleaning pen

ID Card Printer – User Manual

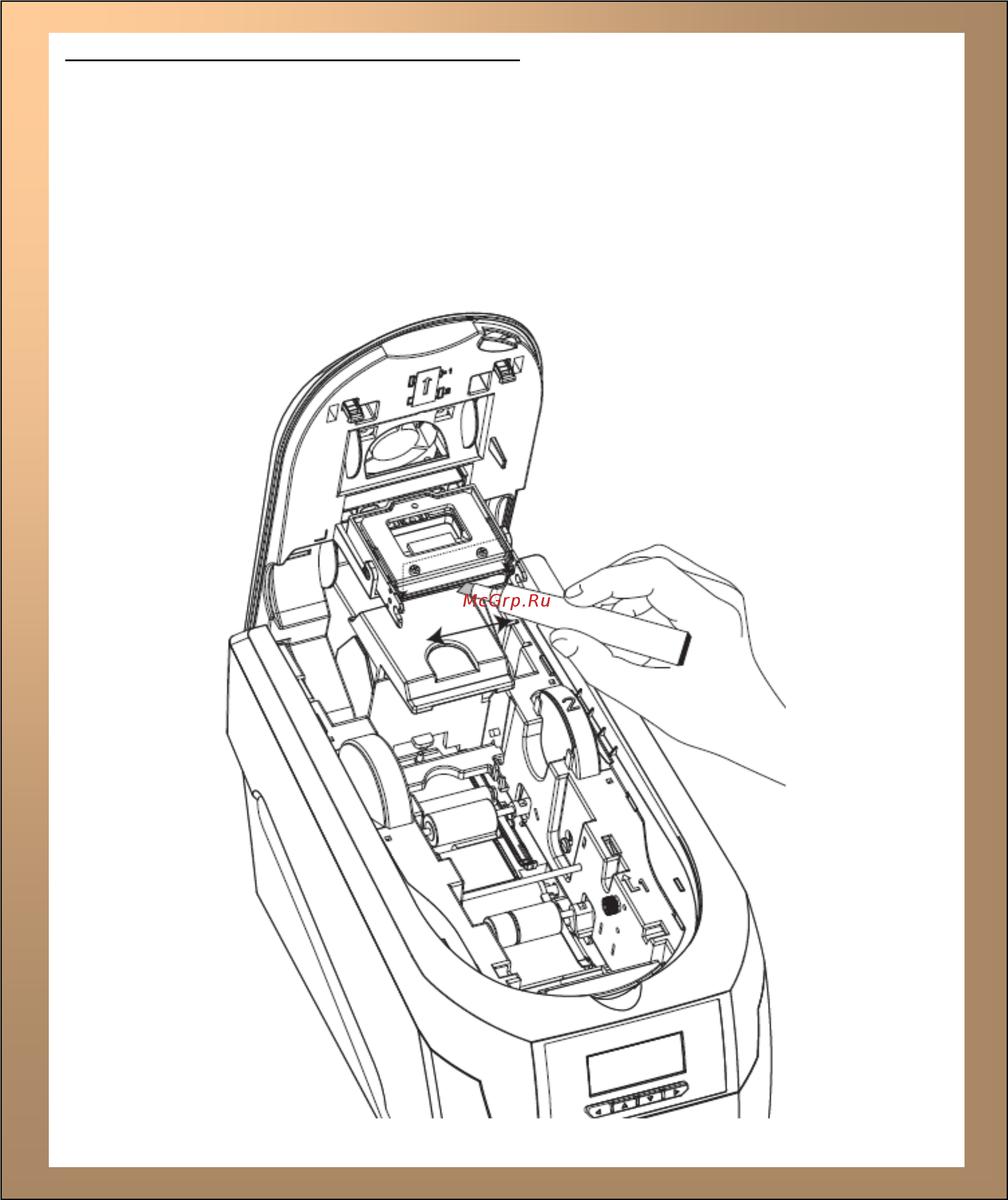

Cleaning the printhead using the Cleaning Pen

We recommend that you clean the print head each time you replace the dye-film.

 Take

the cleaning pen from your cleaning kit.

 Op

en the printer and carefully rub the pen several times, along the complete length of the print

head.

ID Card Printer – User Manual

- 24 -
