UPGRADING TO DOUBLE-SIDED:

For users with a single-sided ID Card Printer, a double-sided upgrade kit can be purchased from your

ID Card Printer’s.

With this simple dr

op-in kit you can change your single-sided printer into a double-sided printer

and be printing double-sided (duplex) cards in seconds!

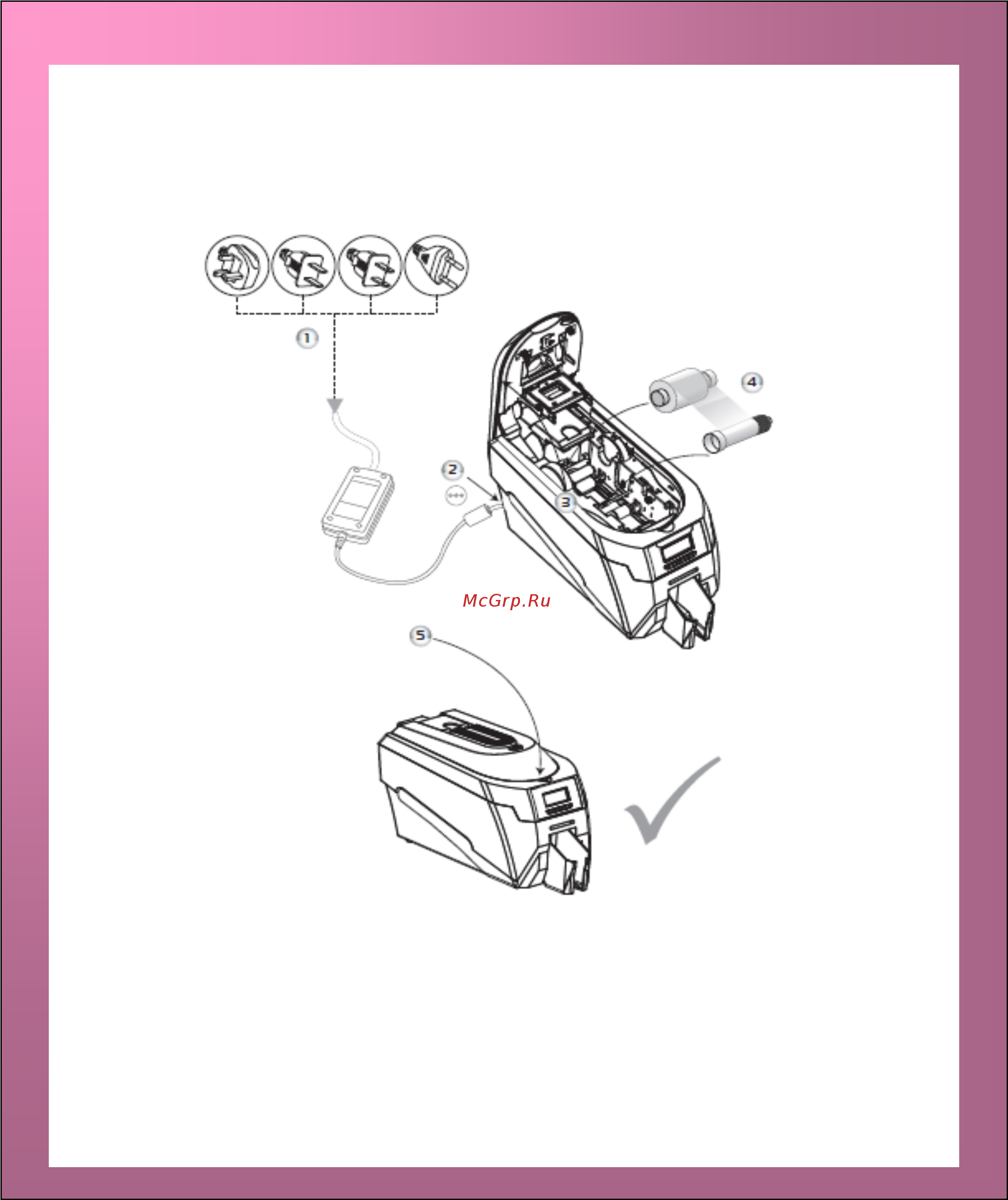

STEP 1 - Conn

ect Power Unit to Mains supply.

STEP 2 - Plug Supply Lead into Printer.

STEP 3 - Op

en the lid and remove any dye film that may have been previously installed

(this can be used again after the upgrade has been completed).

STEP 4 - Load the special dye film supplied with the Upgrade Kit.

STEP 5 - Close t

he lid.

The display now shows “Duo”. Start duplex printing!
