Earth Ground Tester
Operating Instructions
13
AC Resistance Measurement
To perform an ac resistance measurement:
1. Set the rotary switch to OFF.
2. Plug a test lead into jack H/C2 and a test lead into jack E/C1. See
Figure 5.
3. Connect the test leads to each end of the conductor under test. See
Figure 5.
4. Set the rotary switch to 2 pole and press START. The ACTIVE icon
displays to indicate that the measurement is in progress.
When the measurement is complete, the resistance (R) automatically
displays.
R
evp05.eps

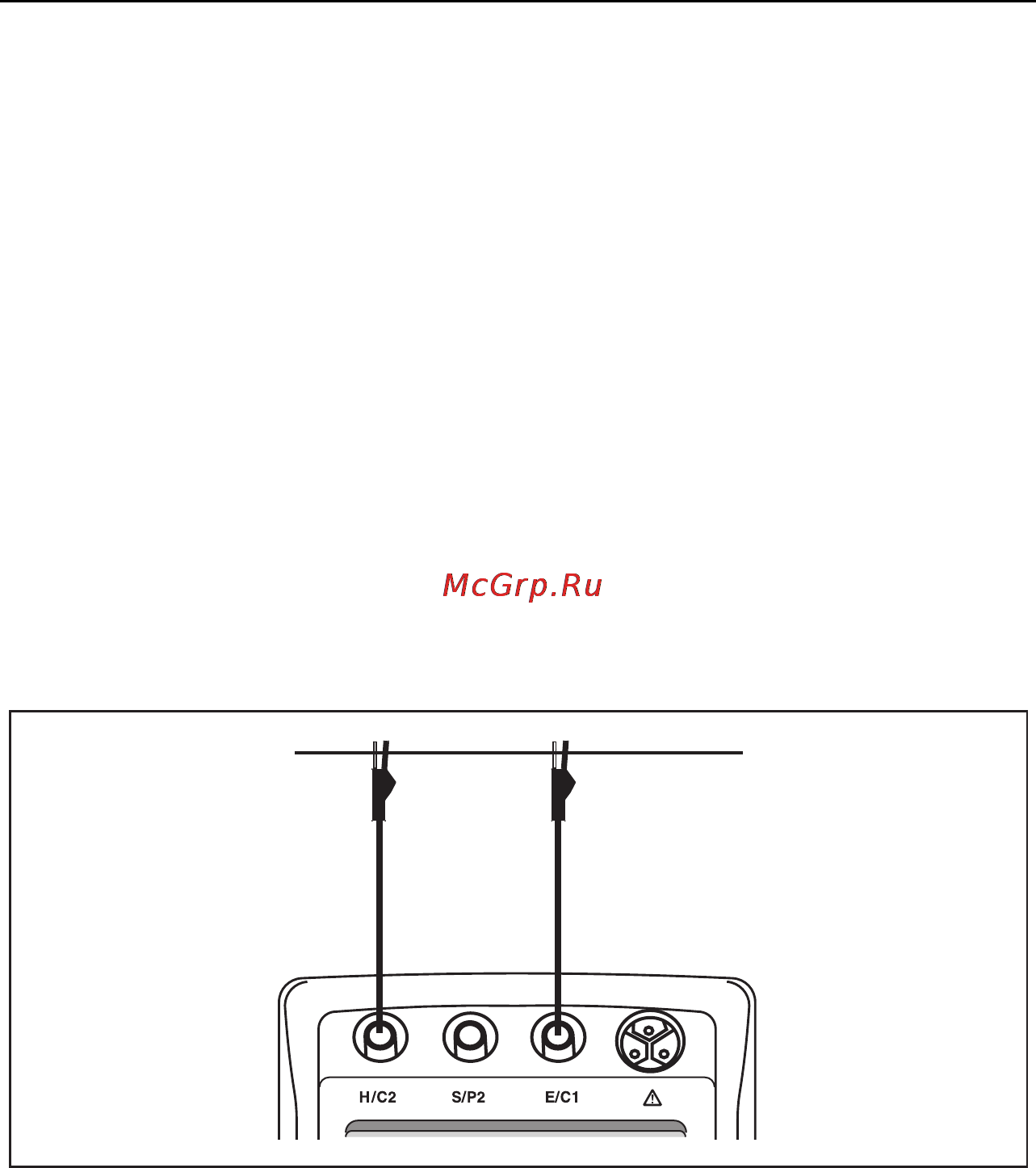

Figure 5. AC Resistance Measurement
