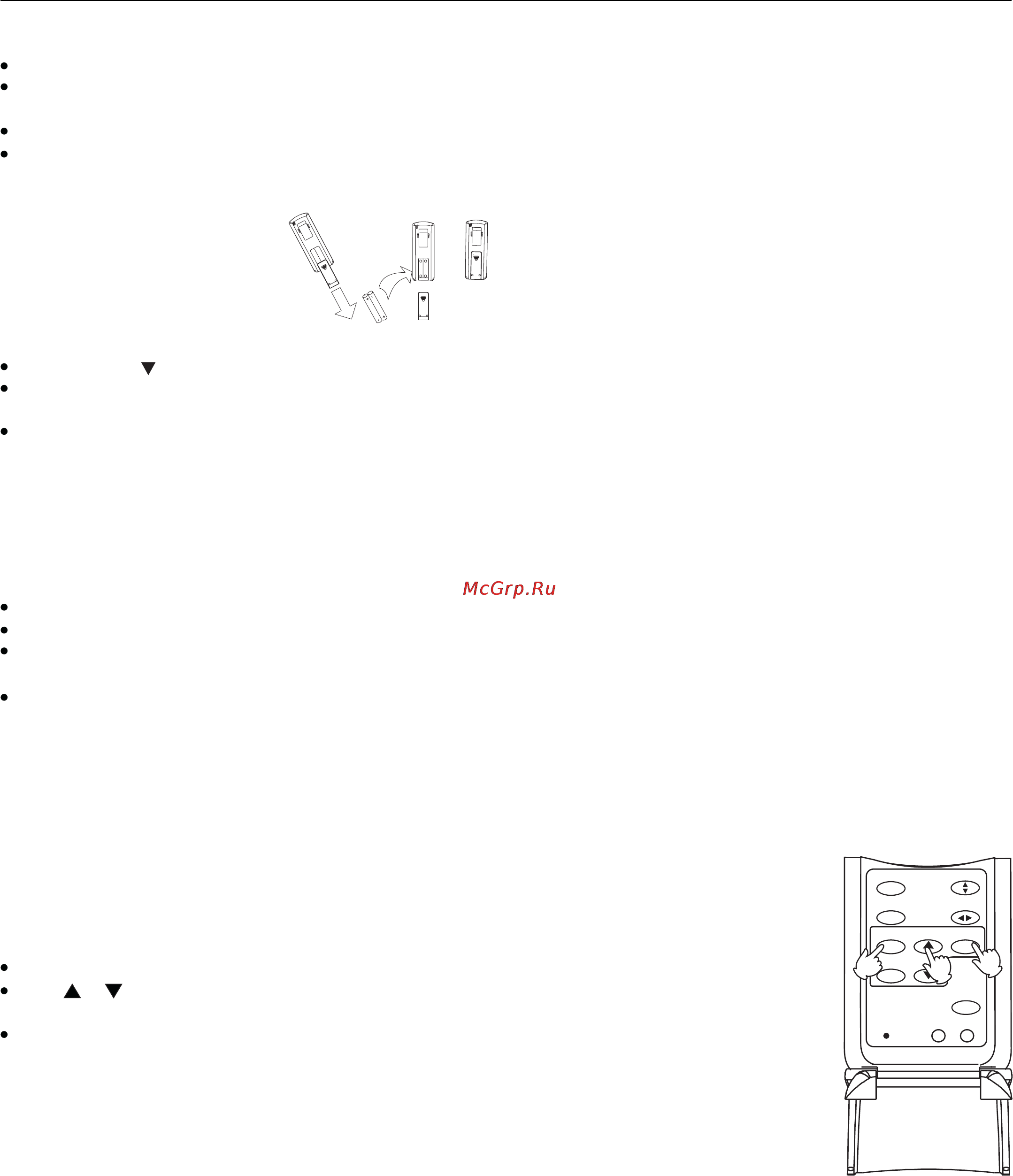

8
Parts and Functions
Remote controller's operation
When in use, put the signal transmission head directly to the receiver hole on the indoor unit
The distance between the signal transmission head and the receiver hole should be within 7m without any obsacles as
well.
Don't throw the controller to prevent it from being damaged.
When electronic-started type fluorescent lamp or change-over type fluorescent lamp or wireless telephone is installed in
the room, the receiver is apt to be disturbed in receiving the signal so the distance to the indoor unit should be shorter.
2R-03 dry batteries
M
I
N
U
T
E
S
Confirmation indicator:
In disorderation, reload the batteries or load the new batteries after 5 mins.
Note:
The waster batteries should be disposed properly, use two new same type batteries when loading.
If the remote controller can't function normally or doesn't work at all, use a sharp-pointed item to press the reset key.
Remove the batteries in case unit won't be in usage for a long period. If there are any displays after taking out, just need
to press reset key.
When throw away the waste batteries, please perform in accordance with the local regulation.
Loading of the battery
Slightly press " " and push down the cover.
Load the batteries as illustrated. 2 R-03 dry batteries, (cylinder). Be sure that the loading is in line with the "+"/"-" pole
request as illustrated.
Put on the cover again.
Clock set
Press CLOCK button, "AM"or "PM" flashes.
Press or to set correct time. Each press the time will increase or decrease by 1 min.
If the button is kept pressed, the time will change quickly.
Press "SET" button to confirm the time setting. "AM" or "PM" stop flashing, while clock
starts working.
MODE
SLEEP
SWING
CLOCK
TIMER
SET
LOCKLIGHT
RESET
HEAT
1
2
3
When the unit is started for the first time or after replacing batteries in remote controller,
clock should be adjusted as follows:
