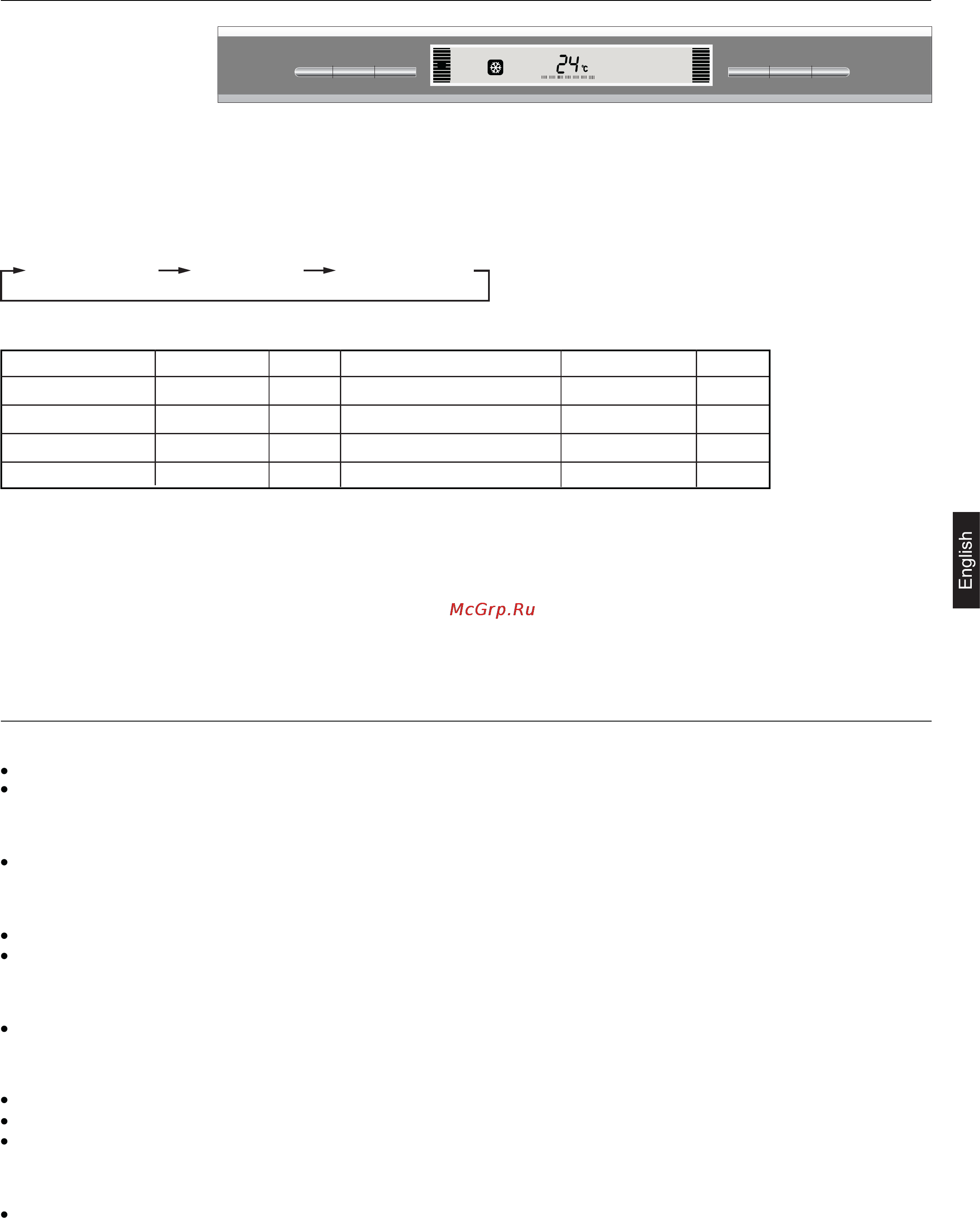

Operation
Control Panel Display
Display function
1.Control panel display control:
Press the LIGHT button, the LCD will display according to the following sequence when press once:
2.LCD color control:
When the LCD bright, the color will display according to the above standard color, when two or more than two kinds of
functions operate, the color will display according to the priority class (Sequence from High to low 3 2 1 ).
When cut off the power and restart the power, the room temperature will be displayed after full screen display lasting 5
seconds.
Press the panel button or remote control, the air conditioner will send out music sound.
Control panel
Operation Hints
3-min delay protection
Unit will not restart until 3 min. have elapsed for the protection of the unit.
Unit operation
Protection devices inside the unit will activate to stop unit operation, when ambient temp. is extremely low or high.
When unit is running under high humidity in cooling or dehumidifying mode, condensate might appear at outlet grill.
Fan speed changes
When Fan speed is set at Auto in cooling mode, it will be automatically reduced as room temp. is approaching temp. setting.
In dry mode, fan speed will change automatically.
Cold draft prevention
In heating mode, indoor fan will not run for the first 2-5 min. due to cold draft prevention.
Defrosting
When frost accumulates on heat exchanger in heating mode, unit will start defrosting automatically.
During defrosting, both indoor and outdoor fan stop.
After defrosting, unit resumes running.
Use objectively
Heat pump works by means of absorbing outside heat to warm room air, so outdoor temp. degree will affect unit's heating
efficiency.
LCD bright
Buzzer not act
LCD bright
Buzzer act
LCD not bright
Buzzer act
ON/OFF
MODE
FAN
TEMP
TEMP+ TEMP- HEALTH
Function
Auto
Cooling
Heating & Auxillary
Dehuimidy
Color
White & Pink
Blue
Red
Light blue
Priority
1
1
1
1
Function
Blowing
Negativeion & Anti-bacterial
Double fresh air
Color
Yellow & Green
Green
Pink
Priority
1
2
3
