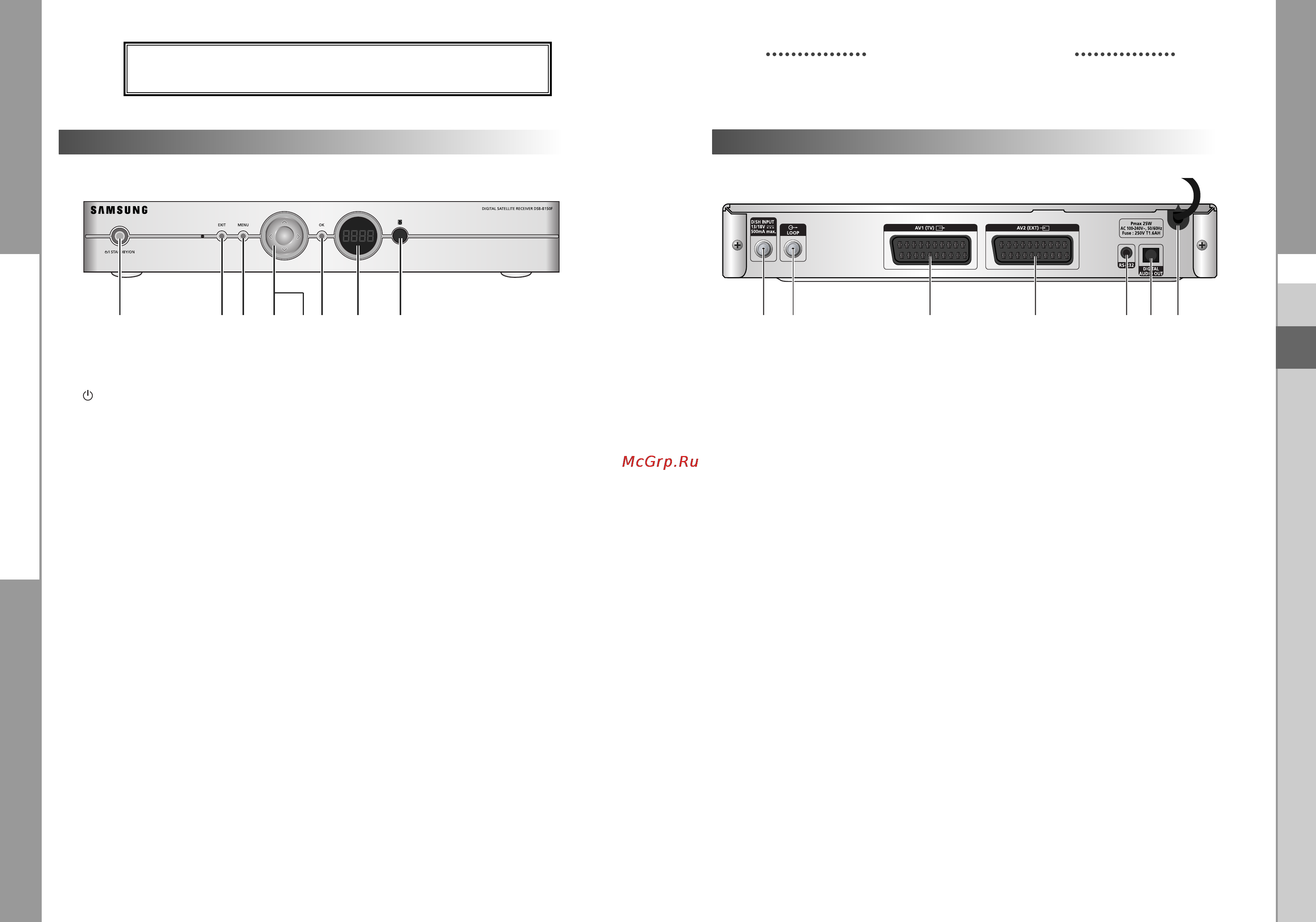

DESCRIPTION
1. DISH INPUT This port is to connect the coaxial cable from LNB of your dish.
The IF input is provided through this port and the input frequency
range is 950-2150 MHz. Also the voltage switching 13V and
18V is passed through this port.
2. LOOP To enable the connection of an Analog receiver.
The receiver is provided with this ‘
LOOP
’ port.
3. AV1 (TV) This is for connecting to your TV.
YUV format is supported.
4. AV2 (EXT) This is for connecting to your VCR or other equipment.
5. RS 232 DATA PORT This is for connecting your receiver to a computer for reading
and loading data information.
6. DIGITAL AUDIO OUT Output for connection to a digital amplifier.
7. AC MAINS This is to plug in the AC mains power cord.
The input AC voltage range is 100V to 240V~, 50Hz/60Hz supply.
Rear Panel
Front Panel
1. /I STANDBY/ON
This is for turning the receiver on and Standby.
2. EXIT
This is for exiting a menu or returning to the previous menu or exiting
some banners.
3. MENU
This is for opening up the menu or returning to the previous menu.
4.
,
These are for changing the channels during watching TV and for
moving the highlight bar for selecting options on the menu.
5.
œ
,
These are for increasing and decreasing the volume level manually
during watching TV and for moving the highlight bar for selecting
options on the menu.
6. OK
This is for entering and confirming any data to the receiver in the
menu system. This key is for selecting the item. Press while viewing
TV and a list of channels is displayed.
7. 7
Segment Display This LED display will show the current channel number.
While the receiver is in Standby mode, the display will show the
current time.
8. Infrar
ed Sensor This is to receive the IR commands from the Remote Control Unit.
6432157
DESCRIPTION
123 7456
8
