Clarion NX505E [2/7] General cautions

NX505E 55

English

❏

Connection Notes

WARNING

• Loom all cables according to the

instruction manual, so as not to

hinder operation.

• Wire the connecting cords/cables

away from high temperature areas.

If the coatings of the cables melt,

it could cause an accident/fire by a

short circuit. Take care when wiring

in the engine compartment.

• When wiring the connecting cables

in a vehicle with an airbag system,

never feed the cables through

a place where it may affect the

operation of the airbag.

An airbag not operating correctly in

an emergency may cause increased

injury.

CAUTION

• Verify wires with a digital multi-meter

prior to making any connections.

Many new vehicles use multiplexed

and/or low voltage circuits that can

be damaged if a test light or logic

probe is used.

• Connect cables appropriately. If a

wrong connection is made, this may

cause a fire or accident.

• When passing cables through

the body of the vehicle, use non-

conductive grommets.

If the coatings of the cables are

worn out by rubbing, this may cause

an accident, fire or a short circuit.

• After wiring cables, fix them with

insulation tape.

• Be sure to switch off the vehicle

when connecting or disconnecting

cables to/from the unit, otherwise

an electric shock, injury or accident

may occur.

2. PACKAGE CONTENTS

Main unit

Quick Start Guide & Installation

Manual

CD-ROM

•Owner's manual

•Owner's manual - Navigation

Power supply cable

RCA pin cable (6ch)

RCA pin cable (Rear AUX-IN/Rear

Video Out)

Bag for accessories

•Flat head screw (M5 × 8 mm)

............................................................8

•Hexagonal bolt (M5 × 8 mm)

............................................................8

•Rubber cap (for RCA pin cable)

............................................................5

•Cable holder .......................................1

•Double-sided tape for fastening GPS

antenna ...............................................1

•Cable tie ..............................................1

Warranty card

GPS antenna

USB Cable

Notice

•Theprovideddisc(CD-ROMmanual)

cannotbeplayedbackonthisunit.

3. GENERAL CAUTIONS

●

Do not open the case. There are no user-

serviceable parts inside. If you drop

anything into the unit during installation,

consult your dealer or an authorized

Clarion service center.

4. CAUTIONS ON INSTALLATION

●

Prepare all articles necessary for

installing the main unit before starting.

●

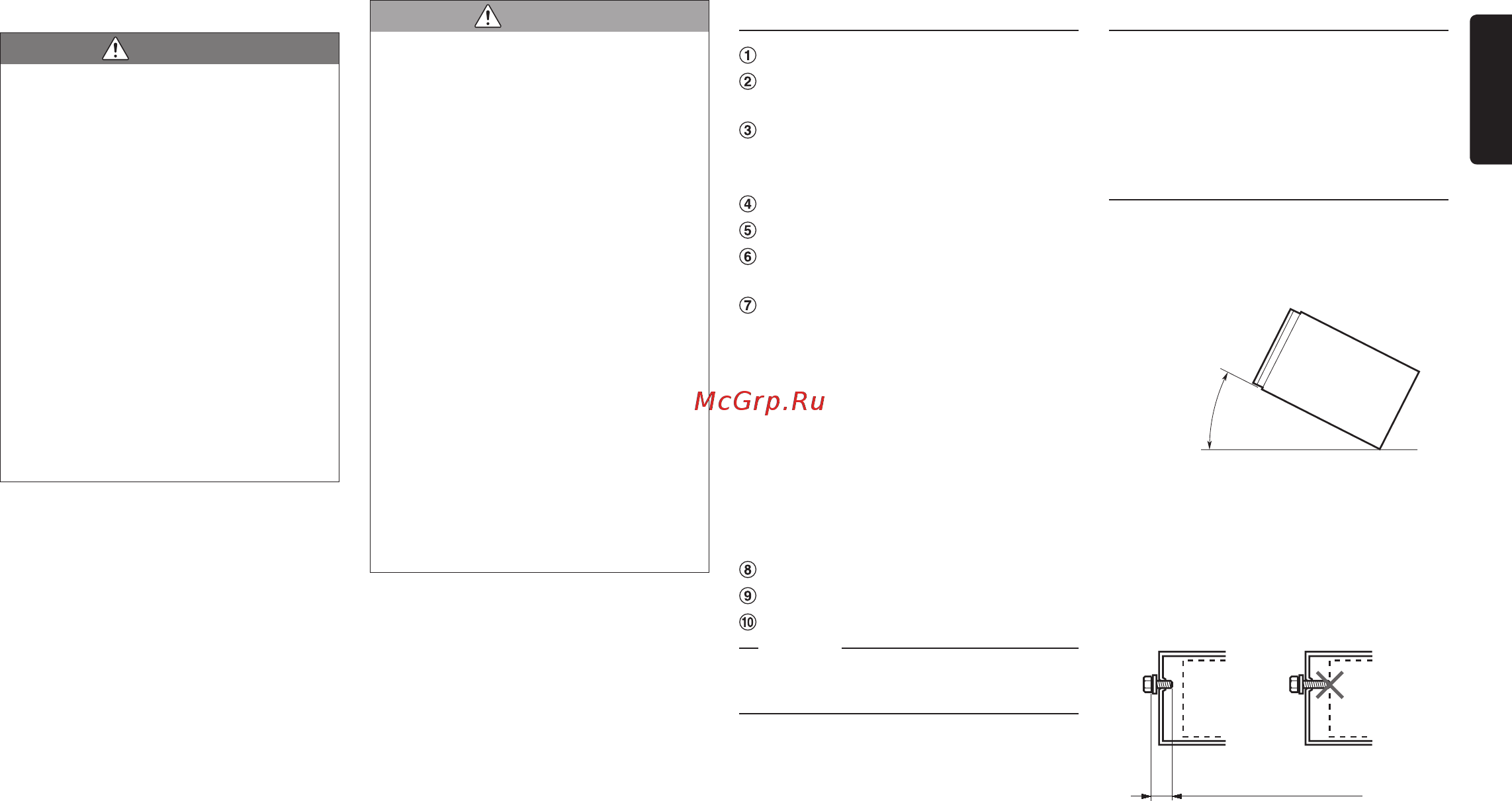

Install the unit within 35° of the horizontal

plane. (Figure 1)

Max. 35°

Figure 1

●

If you have to do any modification on the

car body, such as drilling holes, consult

your car dealer beforehand.

●

Use the included screws for installation.

Using other screws can cause damage.

(Figure 2)

Figure 2

Chassis Chassis

Damage

Max. 3 mm (M4 screw)/

Max. 8 mm (M5 screw)
