8. INSTALLING THE GPS ANTENNA

WARNING

• Do not install the GPS antenna in a place where it may interfere with the operation

of the airbag or hinder the driver’s visual range.

• Do not use the navigation system with the GPS antenna cable cut off. The power

line in the cable may be short-circuited.

●

The supplied GPS antenna is for installation inside the vehicle. Do not install it outside the

vehicle.

●

Install the GPS antenna more than 50 cm away from the main unit, other audio devices

such as CD player, and a radar detector. If it is installed near these devices, GPS

reception may be impaired.

●

To improve the GPS signal reception, install the GPS antenna horizontally on a flat plane.

●

Do not wax or paint the cover of the GPS antenna. This may reduce the performance of

the GPS antenna.

●

Install the GPS antenna at least 10 cm away from the windshield.

●

Wipe off the dirt of the mounting surface before installing the GPS antenna.

●

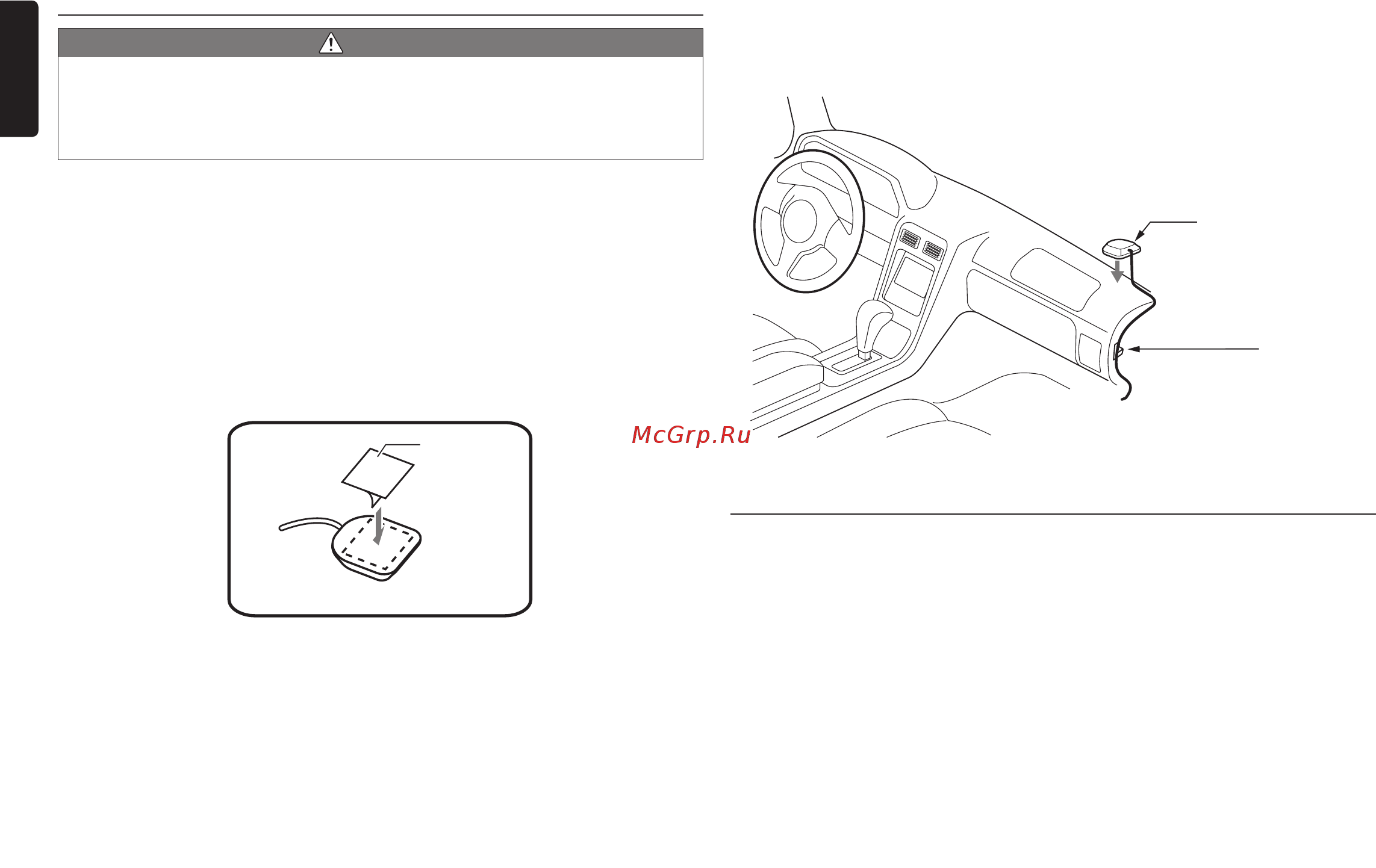

Stick the double-sided tape to the bottom face of the GPS antenna.

Double-sided

tape

Bottom face of the GPS antenna

●

Mount the GPS antenna.

Stick it surely on a flat plane of the passenger-side dashboard where GPS signal

interruption is minimized.

●

Wire the GPS antenna cable.

Fasten the cable using the Cable holder.

GPS antenna

Cable holder

(Shows an example in case of the left-hand traffic.)

9. DAB ANTENNA CONNECTION

For details on how to attach the antenna film, refer to the installation supplied with the

antenna.
