Clarion NX505E [4/7] Cautions on wiring

NX505E 57

English

❏

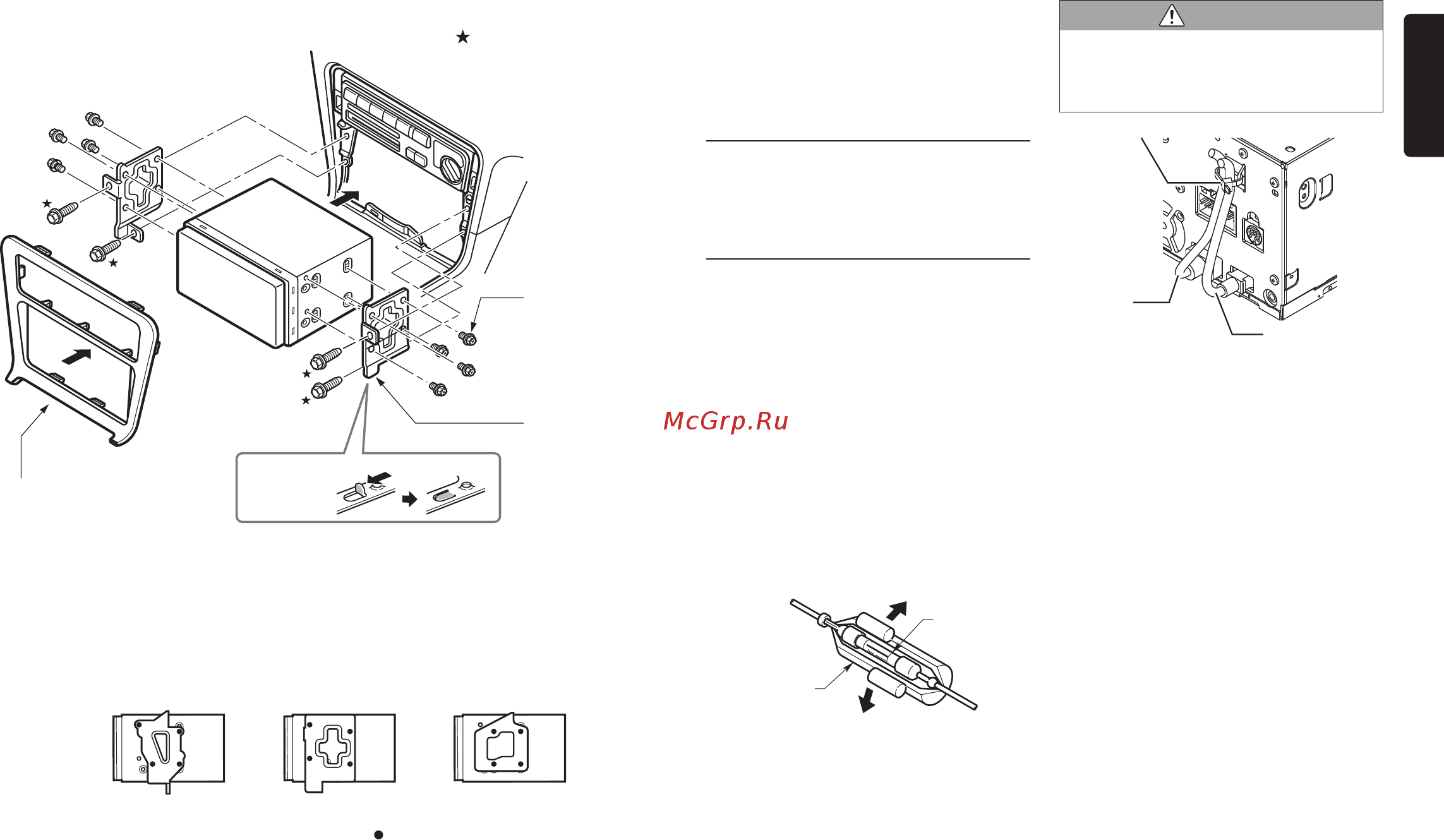

Installing the Main Unit in a TOYOTA Vehicle

Install by using parts attached to the vehicle. (Screws marked are attached to the vehicle.)

Figure 4

Mounting bracket

(1 pair for the left

and right sides)

8-Hexagonal screw

(M5 x 8)

Main Unit

Center Panel *1

*1 Some panel openings are too small for the unit depending on the vehicle type and model. In

such a case, trim the upper and lower sides of the panel frame by about 0.5 to 1.5 mm so the

unit can be inserted smoothly.

*2 If a hook on the installation bracket interferes with the unit, bend and flatten it with a nipper or

similar tool.

Typical Mounting Brackets

Example 1 Example 2 Example 3

Affix the screws to the

marks.

❏

Vehicles other than NISSAN

and TOYOTA

In some cases the center panel may require

modification. (Trimming, filing, etc.)

6. REMOVING THE MAIN UNIT

When the main unit is to be removed,

disassemble it in the reverse of the order in

“INSTALLING THE MAIN UNIT”.



P.56

7. CAUTIONS ON WIRING

●

Be sure to turn the power off before

wiring.

Be particularly careful where you route

the wires.

●

Keep them well away from the engine,

and exhaust pipe, etc. Heat may damage

the wires.

●

If the fuse should blow, check to see if

the wiring is correct.

If a fuse is blown, replace it with a new

one of the same specification as the

original.

●

To replace the fuse, remove the old fuse

of the power supply cable and insert the

new one. (Figure 5)

Fuse holder

Fuse (15A

FUSE)

Figure 5

●

There are various types of fuse holder.

Do not let the battery side touch other

metal parts.

CAUTION

• After connecting the HDMI and USB

cables to the unit, use a cable tie to

tie them down. (Figure 6)

Cable tie

USB Cable

HDMI

Cable

Figure 6
