Clarion NX505E [7/7] Connecting the accessories

60 NX505E

English

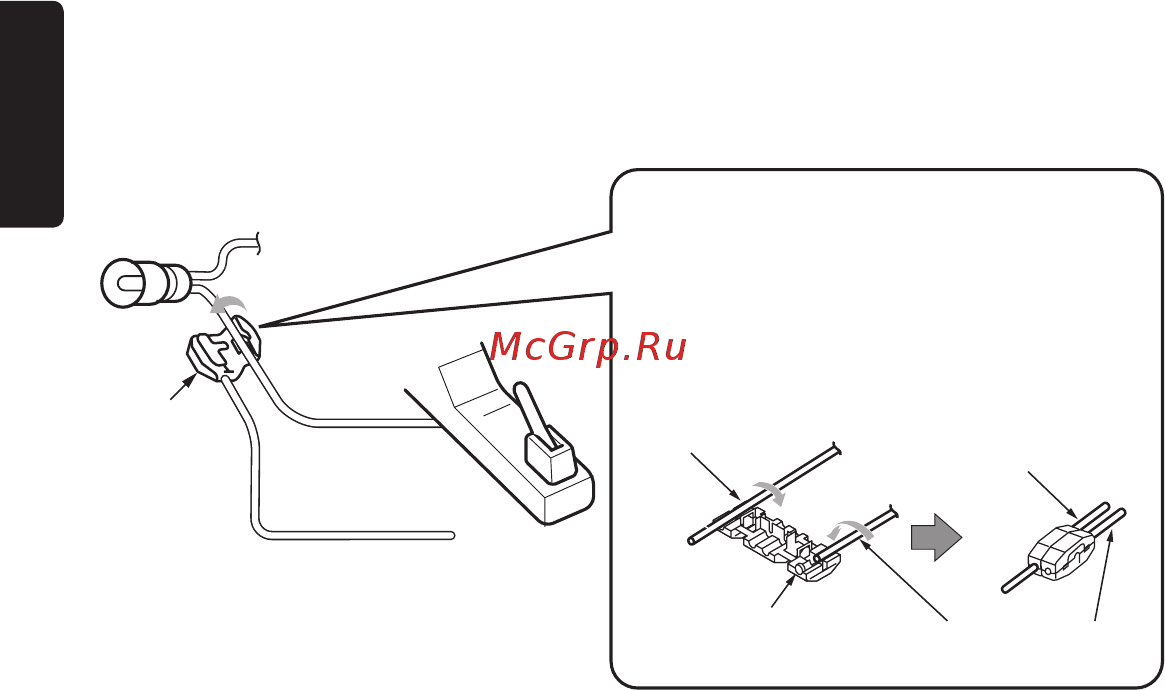

Connecting the parking brake lead

Connect the lead to parking brake lamp ground in the meter panel.

●

Connecting the parking brake lead to lamp ground allows you to watch video images

when the parking brake is engaged.

●

When the parking brake lead is not connected, the monitor will not display video images.

Parking brake lamp

Electro-tap

(sold

separately)

Parking brake lead

(Grass-green)

Parking brake

signal lead

Parking brake

lead to battery

●

How to attach the electro-tap

1. Place the Parking brake lead at the stopper,

and fold it back in the direction of the arrow.

2. Pass the Parking brake signal lead through,

and fold it back in the direction of the arrow.

Parking brake

signal lead

Stopper

Parking brake

signal lead

Parking brake lead

(Grass-green)

❏

Connecting the Accessories

Connection to the Rear Vision Camera for vehicle

The Rear Vision Camera for vehicle can be connected to optional Rear Vision Camera input

cable (CCA-644) with RCA pin cable. For detailed information, refer to the instruction sheet

or manual for the Rear Vision Camera.

●

Be sure to connect the reverse gear lead to the vehicle’s relevant terminal.

●

Connect the Rear Vision Camera to the RCA pin cable; if not, the screen turns black while

the gearshift lever is in the reverse gear position.
