5. INSTALLING THE MAIN UNIT

This unit is designed for fixed installation in

the dashboard.

●

When installing the main unit in NISSAN

vehicles, use the parts attached to

the unit and follow the instructions in

Figure 3.

When installing the main unit in TOYOTA

vehicles, use the parts attached to the

vehicle and follow the instructions in

Figure 4.

●

Wire as shown in Section 10.



P.59

●

Reassemble and secure the unit in the

dashboard and set the face panel and

center panel.

❏

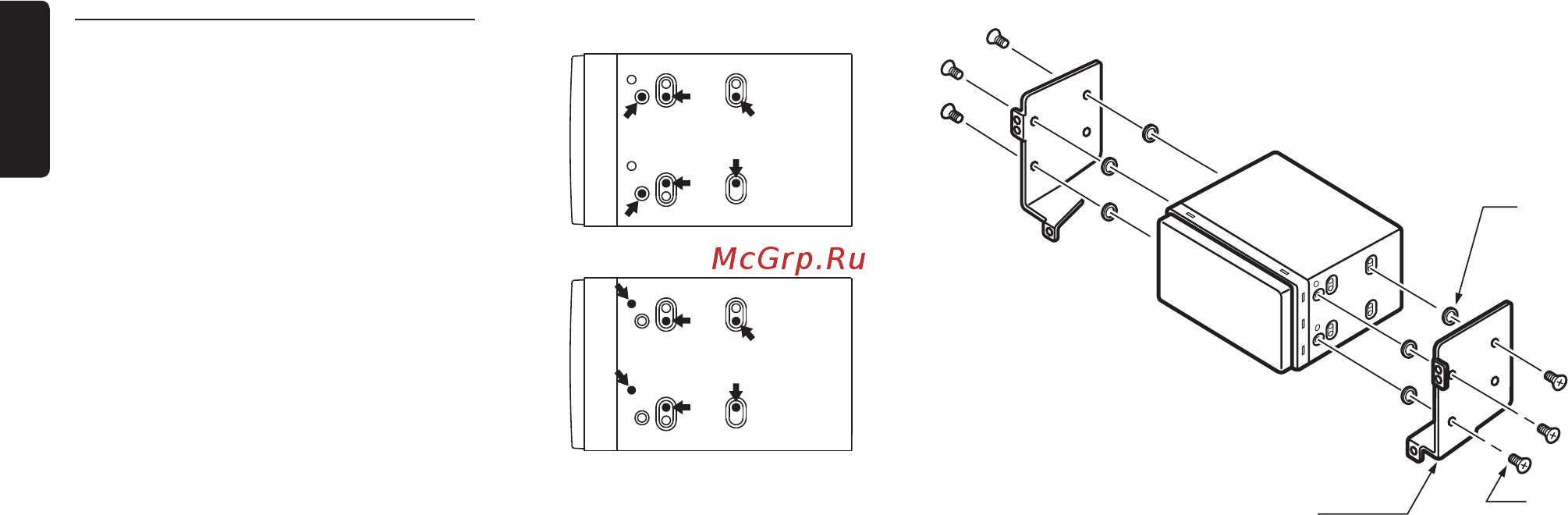

Installing the Main Unit in a NISSAN Vehicle

Figure 3

Mounting bracket

(1 pair for the left and right sides)

6-Spacer (thickness: 1 mm)

6-Flat head screw

(M5 x 8)

(attached to the main unit)

Main Unit

Mounting Screw Holes (Side View of

the Main Unit)

For NISSAN vehicle

For TOYOTA vehicle
