2.4 Change between vertical and

horizontal brushing

Warning!

The brush head can move when the

locking pin is lifted. Keep your distance

from the brush head when the handle

is used. The brush is abrasive. We

recommend the use of protective gloves.

Changing from horizontal to vertical brushing:

1. Lift the weed brush, engage the transport lock (see

section 2.2) and stop the machine.

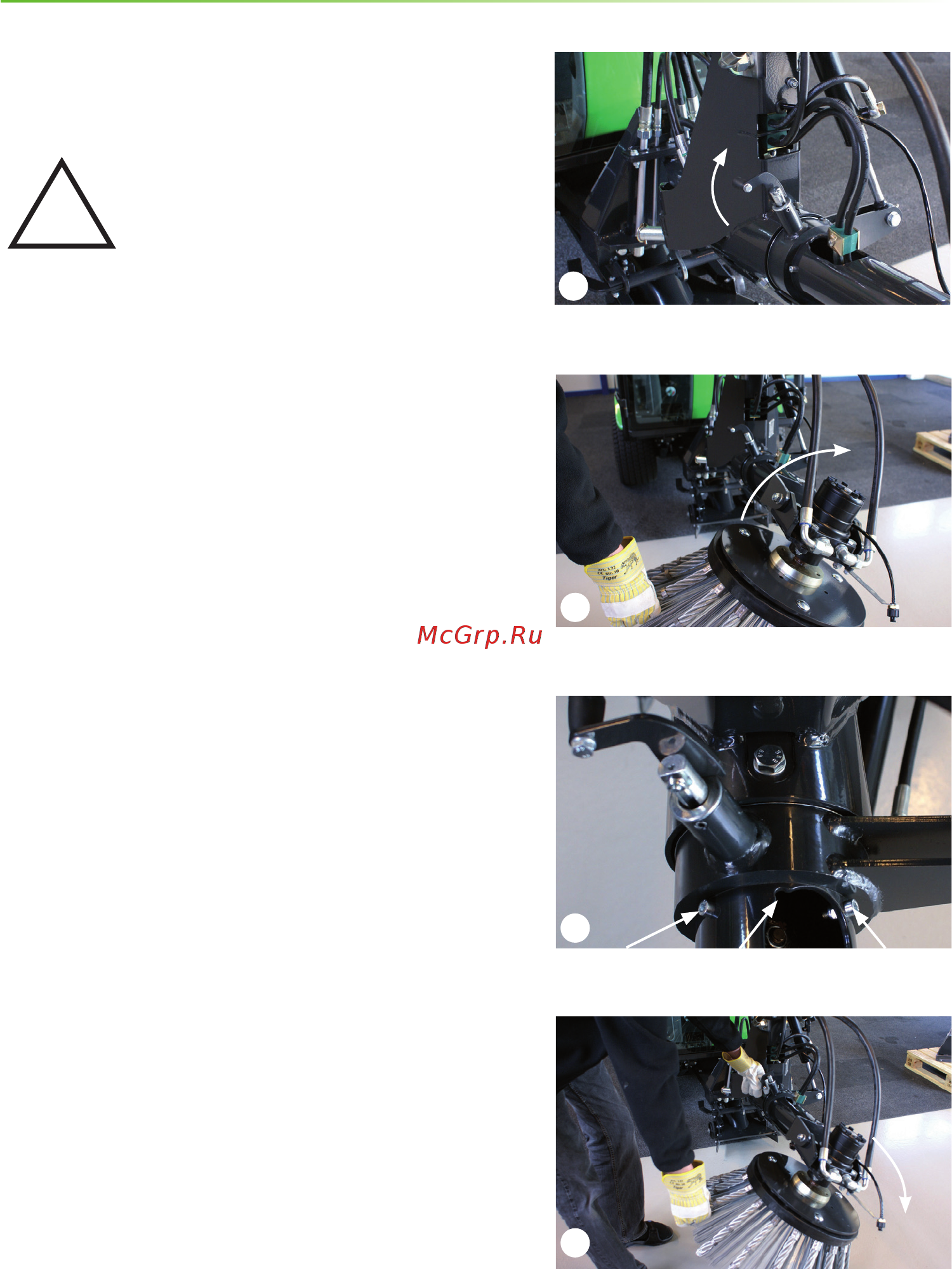

2. Lift the locking pin to the open position. (Picture 1)

3. Turn the brush head manually to the desired position.

(Picture 2)

See weed brush ‘Three applications’ for positions.

(Picture 3)

4. Free the handle so the locking pin is again engaged.

(Picture 4)

5. Continue to turn the brush head to the desired position

until the locking pin falls into position with a click.

(Picture 4)

Positioning the brush completely vertically requires extra

adjustment using the joystick. (See Section 2.7)

Locking pin open position

Turn brush head

3. Vertical left – 1. Horizontal– 2. Vertical right

Free/continue turning
