Operator’s Manual City Ranger 2250 Weed brush
Operator’s manual
2.1 Assembly/Disassembly

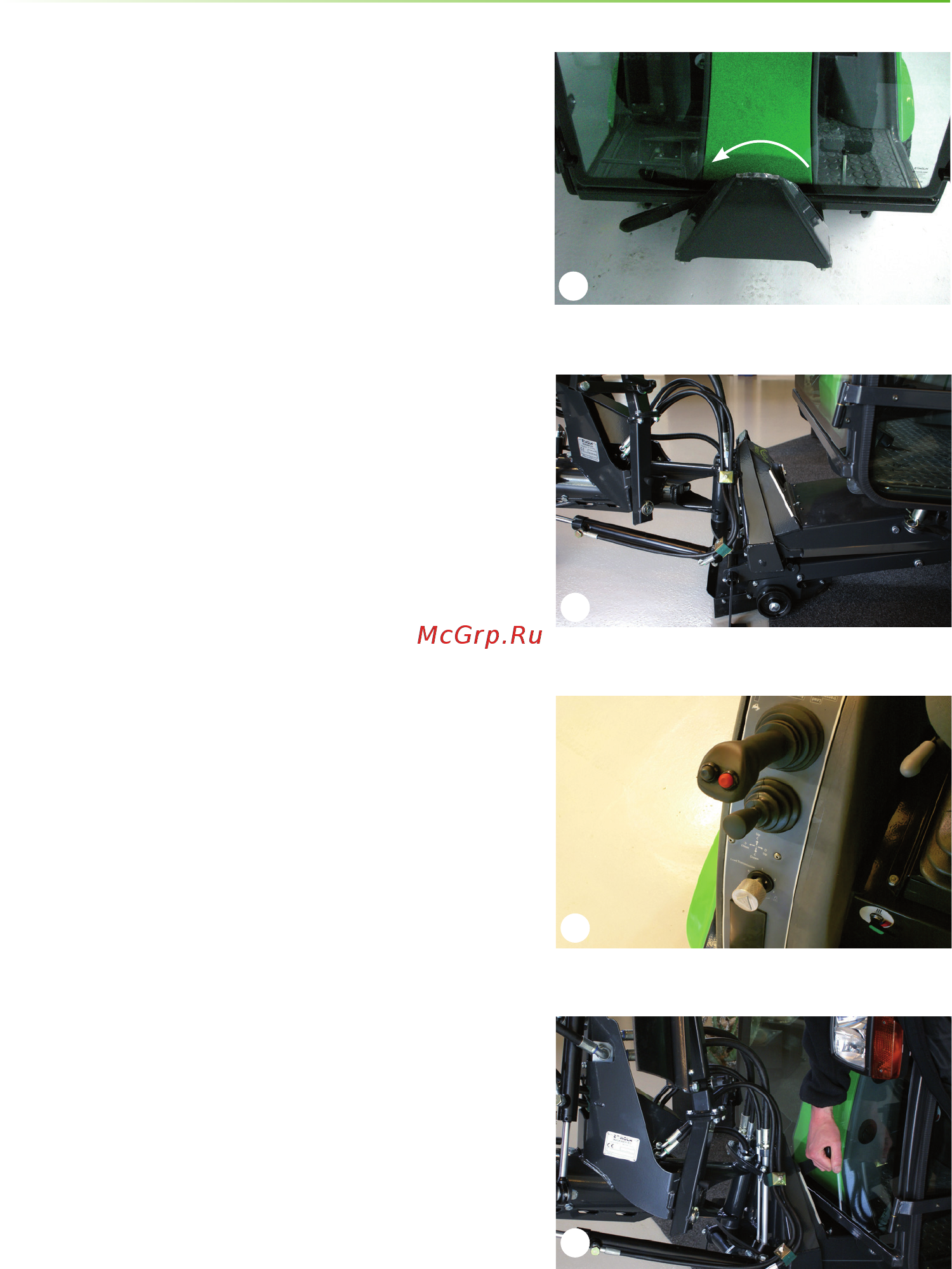

1. The locking handle on the A-frame of the basic machine
must be in the unlocked position. (Picture 1)
2. Drive the base machine right up to the A-frame of the
weed brush, so the A-frames t into each other. (Picture 2)
3. Raise the A-frame by pulling the joystick back until the
weed brush is suspended and free of the ground.
(Picture 3)
4. Stop the machine.
5. Lock the weed brush in place with the locking handle
on the A-frame. (Picture 4) The locking handle can only be
engaged when the machine has been stopped.
Removing:
Follow the procedure for tting in the reverse order.
Joystick
Locking the attachment
Locking handle
Locking
U
n
l
o
c
k
e
d
