1-7

Handling Paper | 1-7

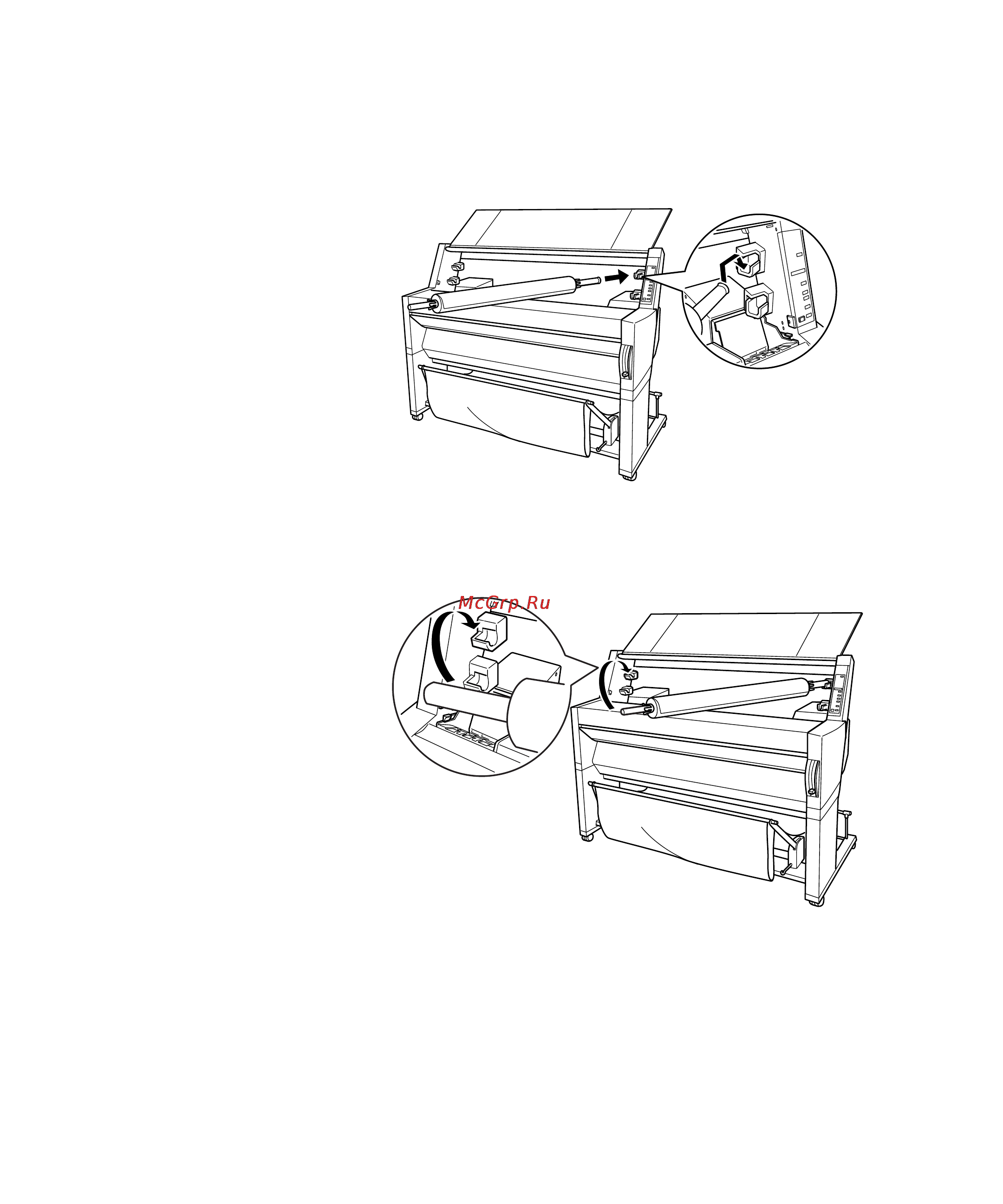

4. Insert the white end into the right mounting bracket inside the printer.

You can use either the upper or lower bracket.

5. Place the black end of the spindle into the left mounting bracket inside

the printer.
