1-19

Handling Paper | 1-19

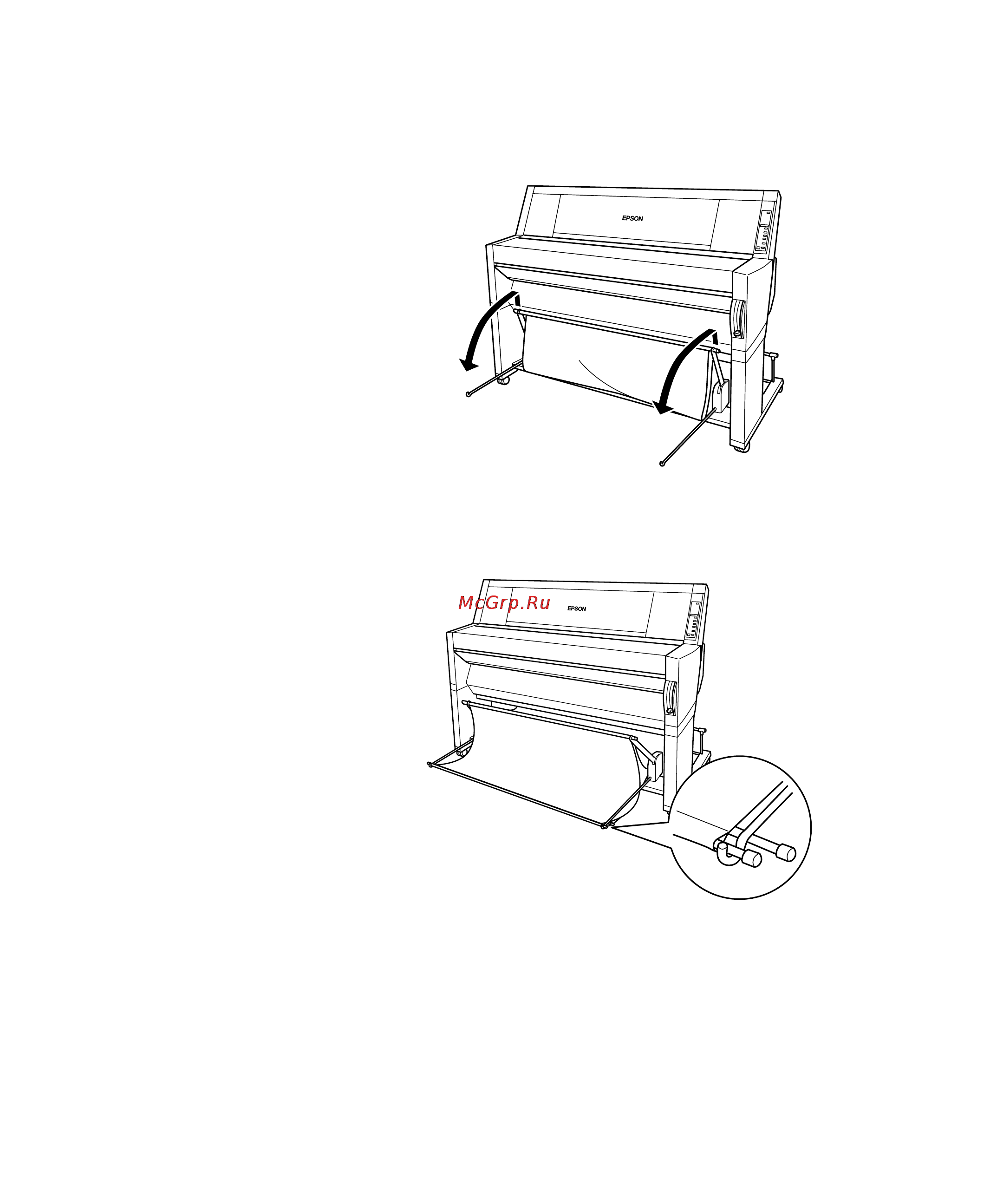

2. Place the two rods in front of the hammock hooks.

3. Place the shorter rod on the ends of the hooks. The longer rod should

rest on the floor under the hooks.
