1-20

1-20 | Handling Paper

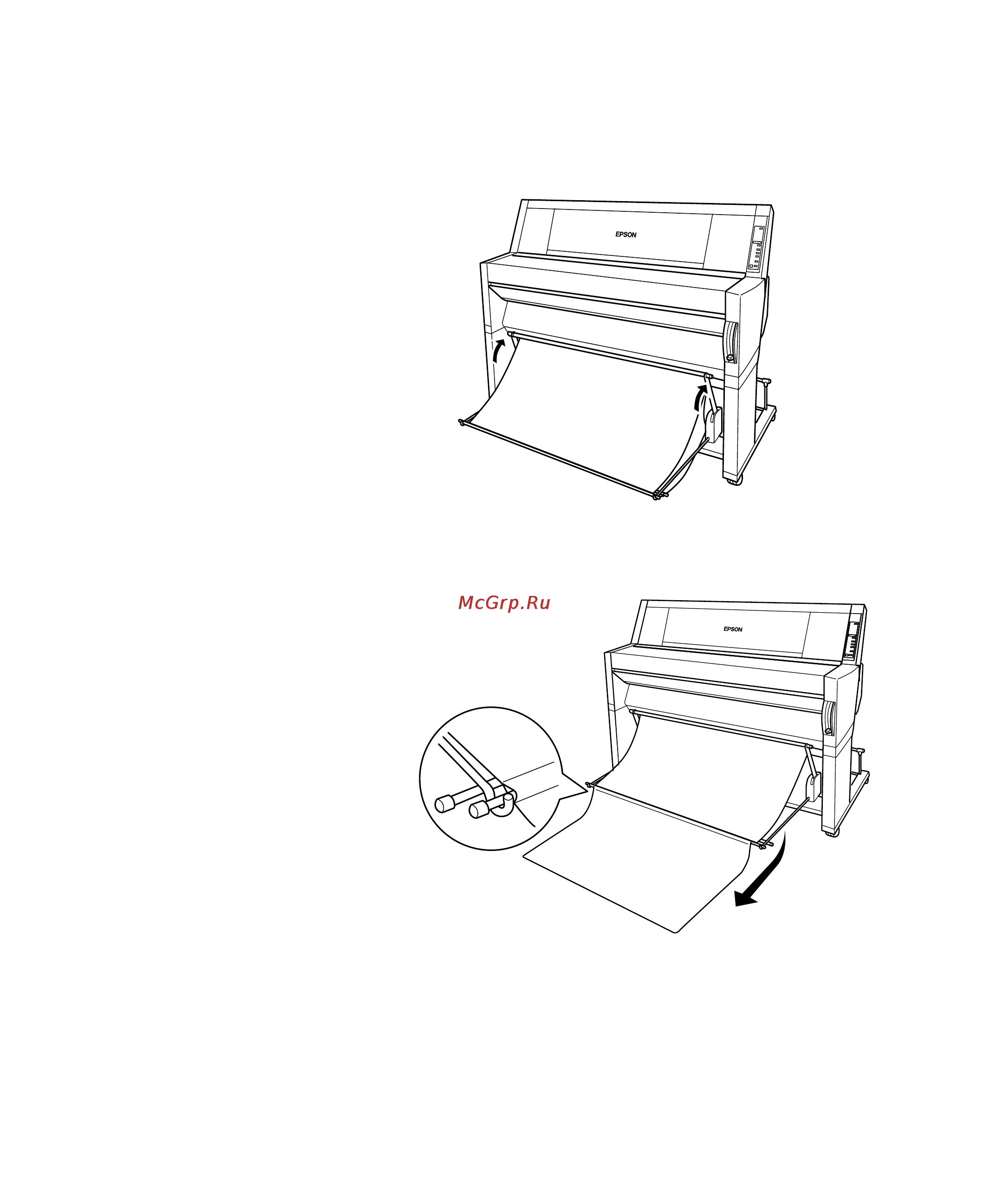

4. Push in the top of the paper hammock so that the paper will feed

forward.

5. If necessary, extend the hammock fabric out on the floor in front of the

printer (for large print jobs).
