English Instruction SheetPanel 10
Measuring dc Volts
W Caution
To prevent damage to the unit under test, ensure that the
Calibrator is in the correct mode before connecting the
test leads.

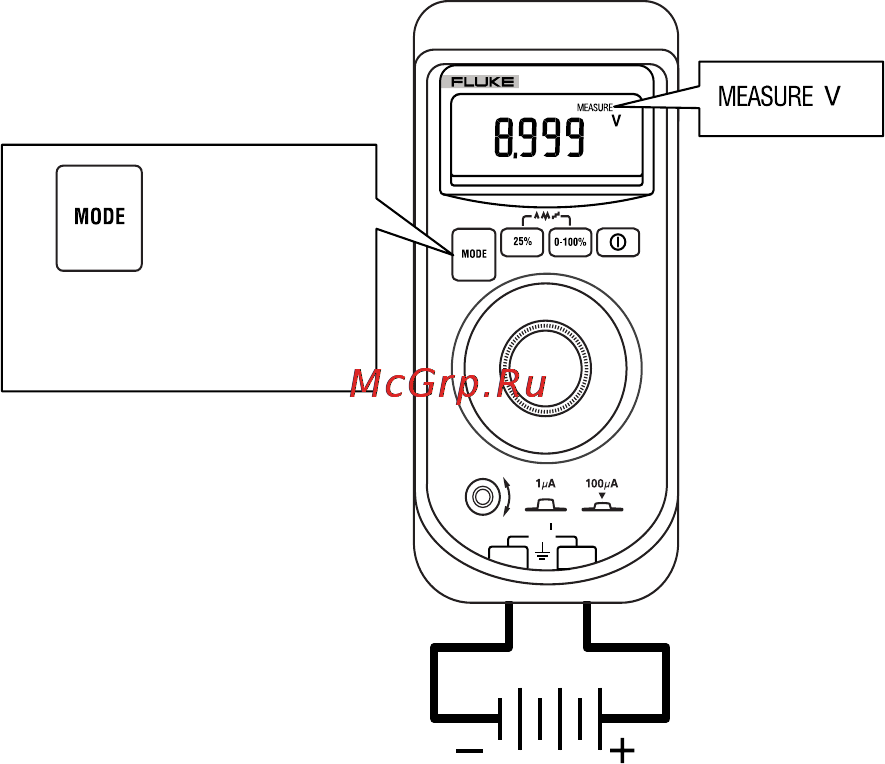

To measure dc Volts:
1. Press A to step to MEASURE mode.
MEASURE V is displayed.
2. Touch test lead probes across the load or power source.
30 V dc max.
COM
+
707
LOOP CALIBRATOR
30V
CAT
Press until MEASURE
V dc is displayed.
ADA01F.EPS
