English Instruction SheetPanel 8
Measuring dc mA
W Caution
To prevent damage to the unit under test, ensure that the
Calibrator is in the correct mode before connecting the
test leads.
To measure dc mA:
1. Press A to step to MEASURE mode.
MEASURE mA is displayed.

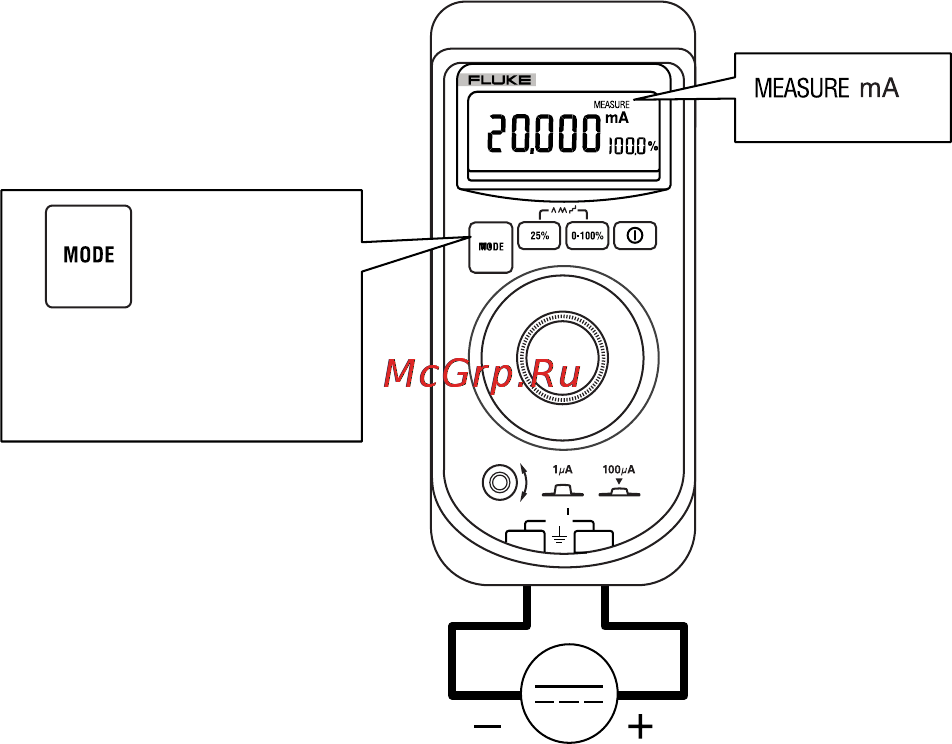

2. Touch test lead probes to the circuit across the load or power
source as shown below.
COM
+
707
LOOP CALIBRATOR
30V
CAT
Press until MEASURE
mA is displayed.
30 V dc max.
ADA03F.EPS
