English Instruction SheetPanel 13
Replacing the Battery
W
Warning
To avoid false readings, which could lead to electric shock
or injury, replace the battery as soon as M (low battery
indicator) appears on the display.
Use only a single 9 V battery, properly installed, to power
the Calibrator.
The Calibrator uses a single 9 V, alkaline battery (ANSI/NEDA
1604A or IEC 6LR61). To replace the battery:
1. Press D to turn the Calibrator OFF.
2. Remove the test leads from the terminals.
3. Remove the holster.

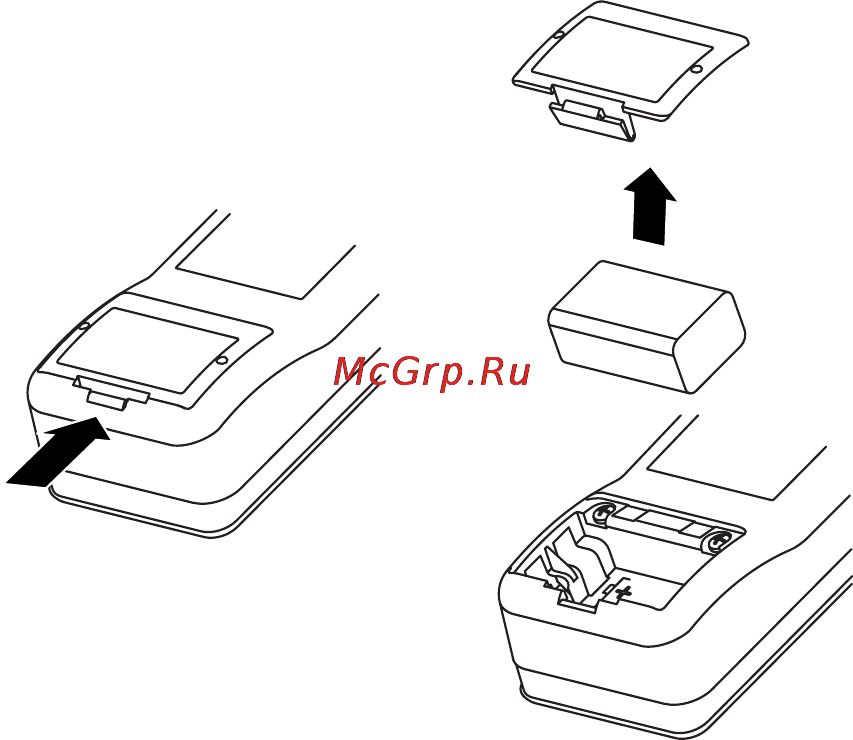

4. Lift off the battery door on the back of the Calibrator as shown.
5. Remove the battery.
6. Insert the replacement battery and restore the battery door.
Make sure it is securely in place.
7. Return the Calibrator to its holster.
ADA07F.EPS
HART Mode
To enable or disable the Calibrator's HART mode (Highway-
Addressable Remote Transducer), see the Power-on Option in the
Pushbutton Functions section. Default is HART resistor off.
