Using the mA Sourcing (Output) Modes

The Calibrator outputs current for calibrating and testing 0 to 20 mA

and 4 to 20 mA current loops and instruments.

In SOURCE mode, the Calibrator supplies the current.

In SIMULATE mode, the Calibrator simulates a 2-wire transmitter in

an externally-powered current loop.

Changing the mA Output Span

The Calibrator has two mA output spans:

• 4 mA to 20 mA (0 % to 100 %) [default]

• 0 mA to 20 mA (0 % to 100 %) [optional]

To change the output span, turn the Calibrator off. Press A + D

simultaneously. The selected setting is saved until it is changed

again.

Sourcing mA

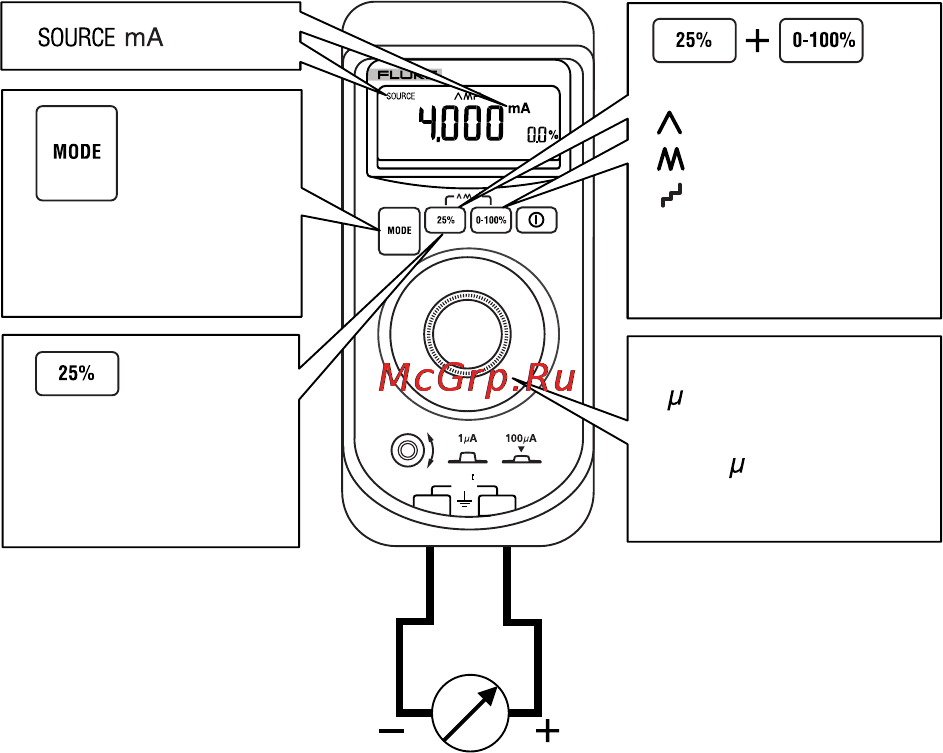

Use SOURCE mode to supply current to a passive circuit.

A path must exist for current to flow between the

+ and COM

terminals. Otherwise the display indicates an overload (OL) when

you set an output value.

COM

707

LOOP CALIBRATOR

30V

CAT

Press until SOURCE

mA is displayed.

Press to step current

up/down in 25 %

steps of full scale.

Turn to step up/down

1 A. Press in and

turn to step up/down

in 100 A increments.

Press simultaneously

once for slow ramp

twice for fast ramp

three times for

stepped ramp.
