English Instruction SheetPanel 6

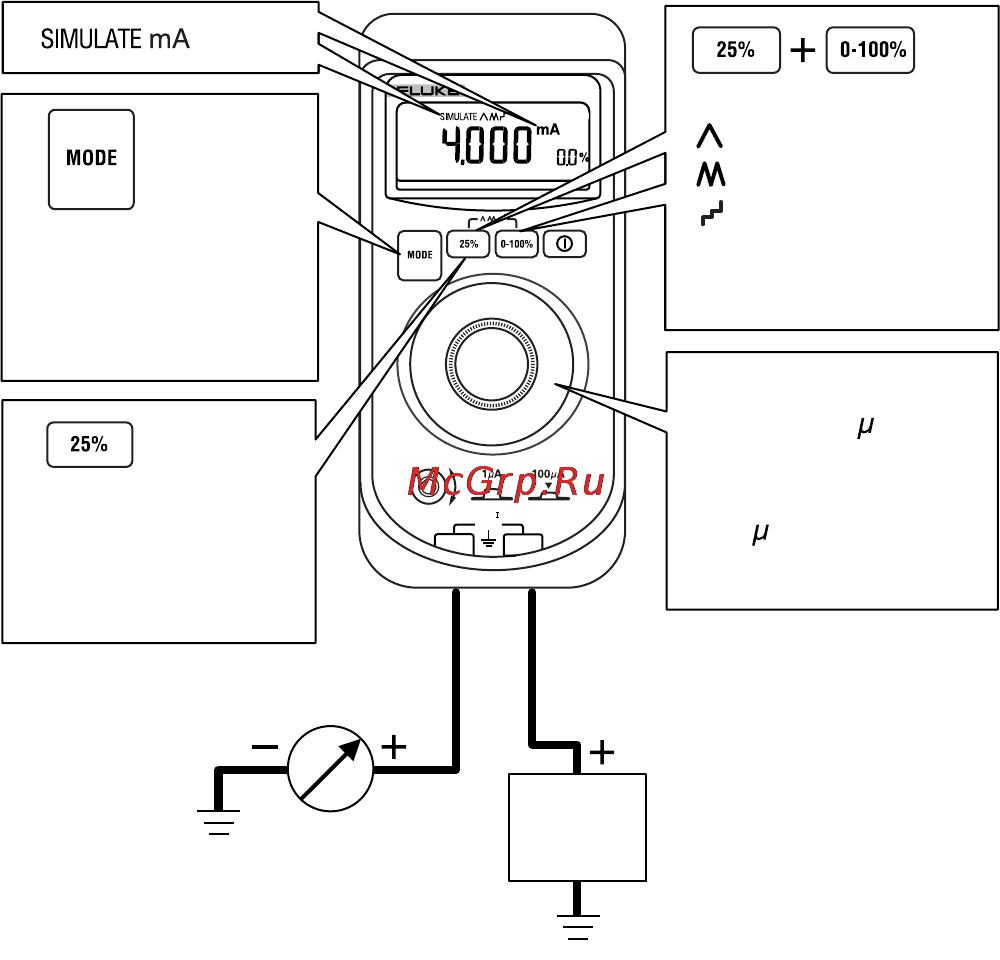

Simulating a Transmitter
When simulating the operation of a transmitter, the Calibrator
regulates the loop current to a known value selected by you.
A 12 V to 28 V loop supply must be available. Insert the test leads as
shown below.
Power
supply
30 V dc
max.
COM
+
707
LOOP CALIBRATOR
30V
CAT
Press until
SIMULATE mA is
displayed.
to step current
up or down 25 %
of full scale.
Press
Turn to step
up/down 0.1 A.
Press in and rotate
to step up/down in
100 A increments.
Press simultaneously
once for slow ramp
twice for fast ramp
three times for
stepped ramp.
ADA05F.EPS
