Installation
10
Connecting to an Door button/Door sensor

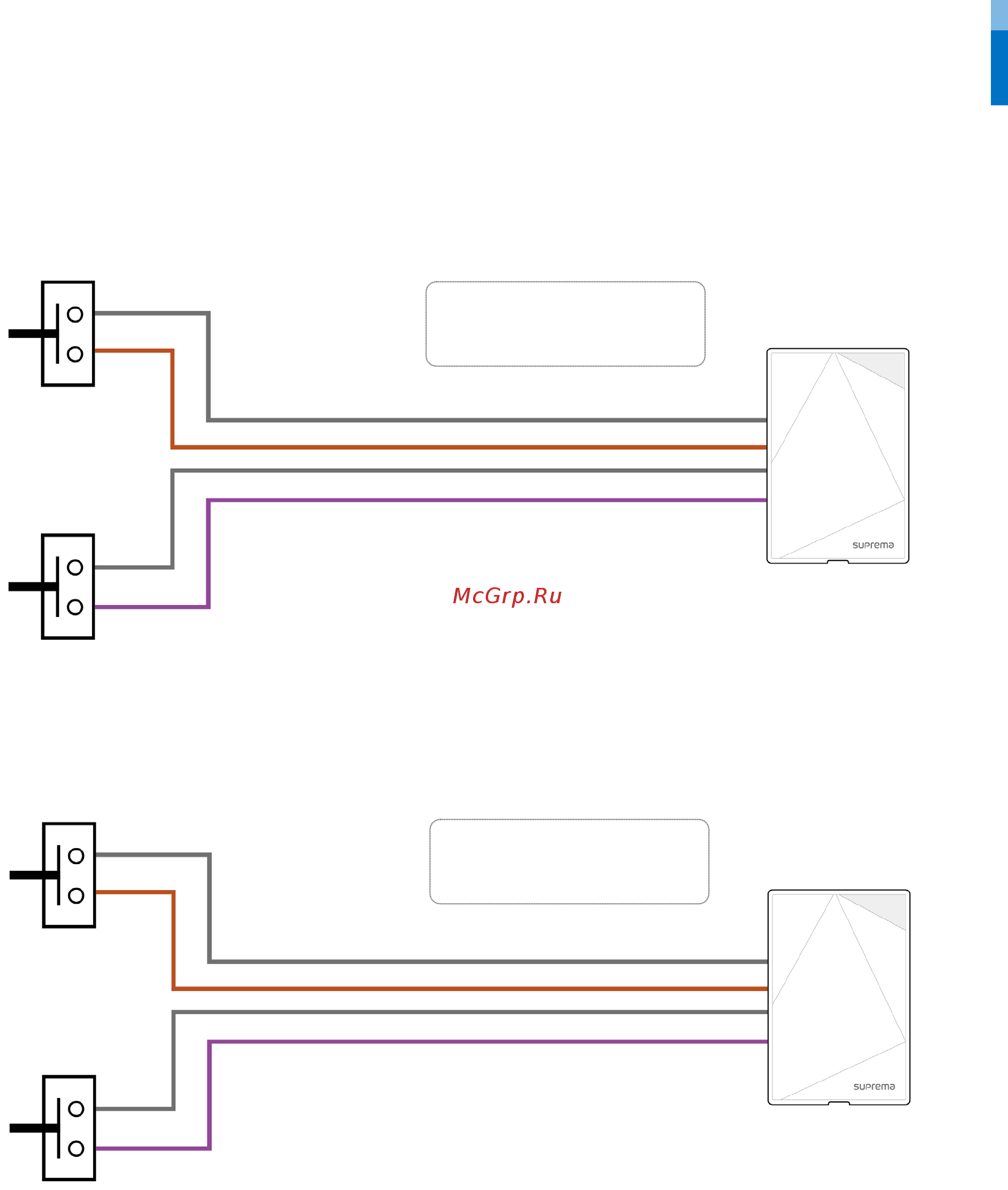

Digital input connection (Door button, Door sensor)
Digital input connection (Alarm, Emergency switch)
Xpass S2
Input 1
2
7
2
6
Input 0
2 - TTL GND Gray
6 - TTL IN0 Purple
7 - TTL IN1 Brown
2 - TTL GND Gray
6 - TTL IN0 Purple
7 - TTL IN1 Brown
Xpass S2
Door sensor
2
7
2
6
Door button
