Installation

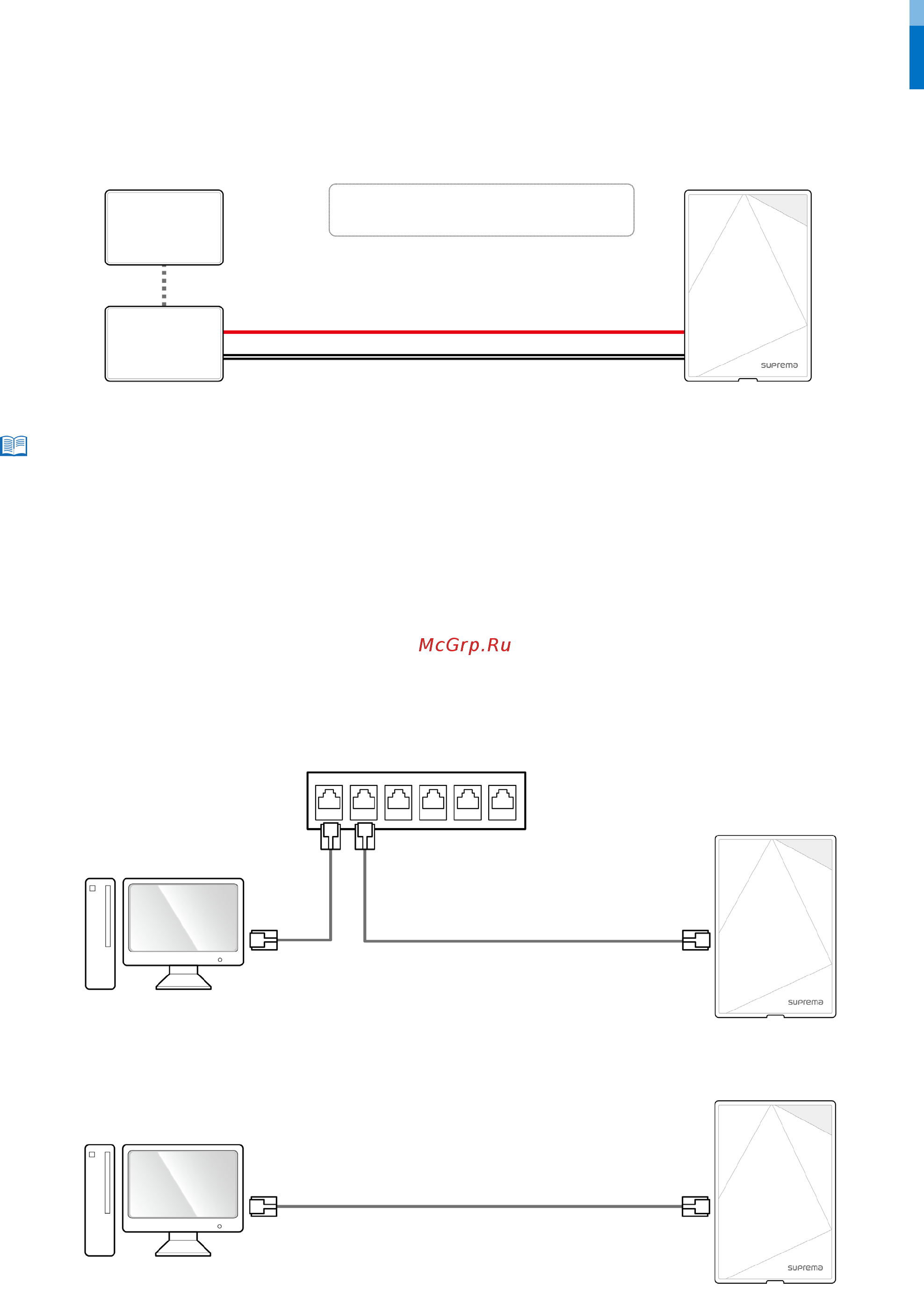

Connecting to Power

• Use a power adapter that has a DC 12 V (± 10%) specification of with the minimum current of 1,500 mA and has IEC/EN 60950-1 certification. If the

power adapter is shared by other devices, the power adapter should provide a current more than the sum of the power consumption from this

device (1,500 mA) and other devices.

• Use a separate power supply for Secure I/O 2, electric lock and Xpass S2 respectively. If connecting and using the power supply to these devices

together, the devices may malfunction.

Connecting to a Network

TCP/IP

LAN connection (connecting to a hub)

A normal CAT-5 cable can be used to connect to a hub.

LAN connection (connecting directly to a PC)

Xpass S2 can be connected directly to a PC by using a normal type CAT-5 cable because it supports an automatic MDI/MDIX function.

Xpass S2

Hub

Note

18 - PWR +VDC Red

14 - PWR GND Black (White stripe)

UPS

(Optional)

DC power

Xpass S2
