Suprema Xpass S2 [6/19] Getting started

Getting Started

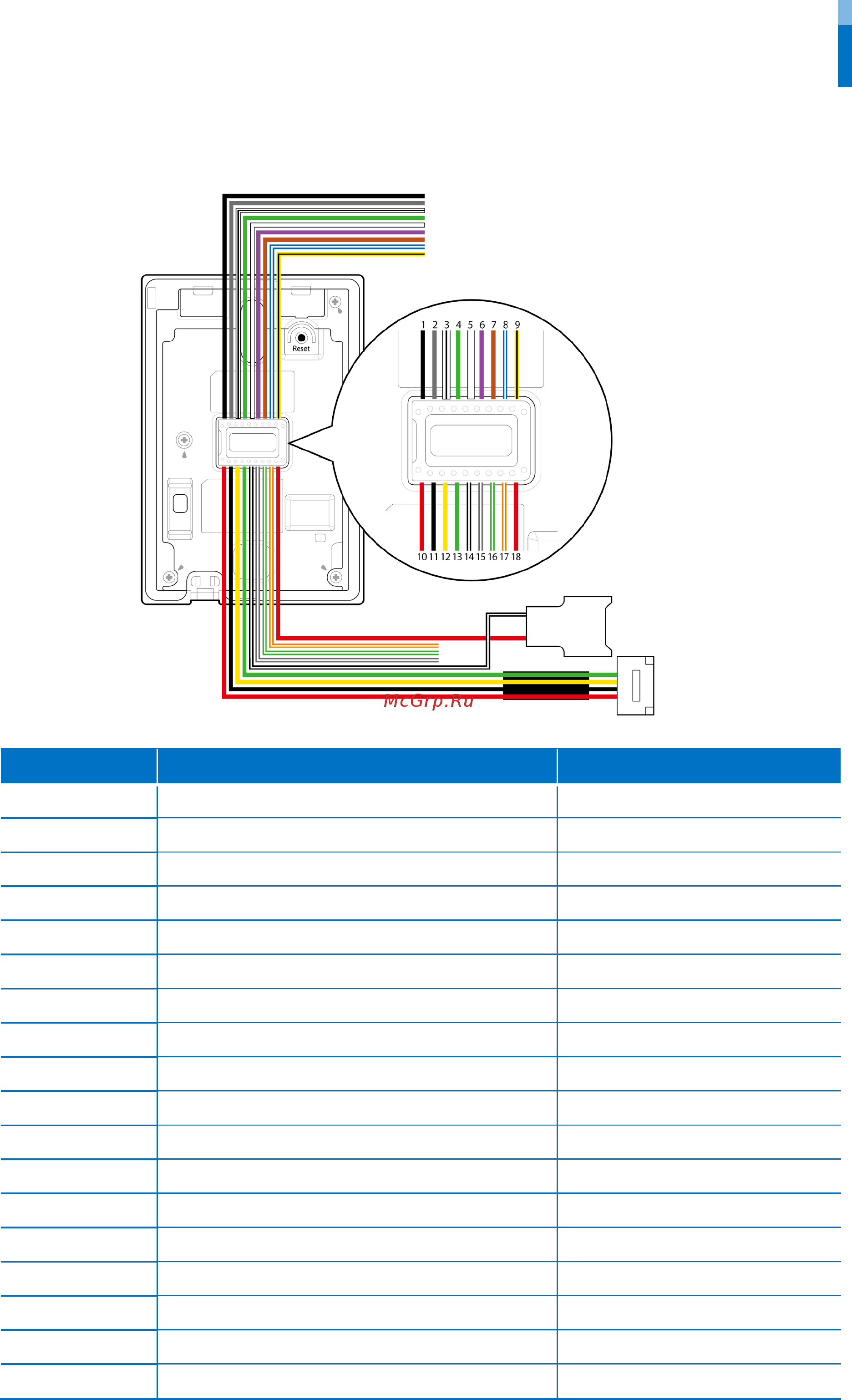

Cables and connectors

Pin Name Color

1 WG GND Black

2 TTL GND Gray

3 485 GND White (Black stripe)

4 WG D0 Green

5 WG D1 White

6 TTL IN0 Purple

7 TTL IN1 Brown

8 485 TRXP Blue (White stripe)

9 485 TRXN Yellow (Black stripe)

10 ENET TXN Red

11 ENET TXP Black

12 ENET RXN Yellow

13 ENET RXP Green

14 PWR GND Black (White stripe)

15 RLY NO Gray (White stripe)

16 RLY COM Green (White stripe)

17 RLY NC Orange (White stripe)

18 PWR +VDC Red
