Installation
12

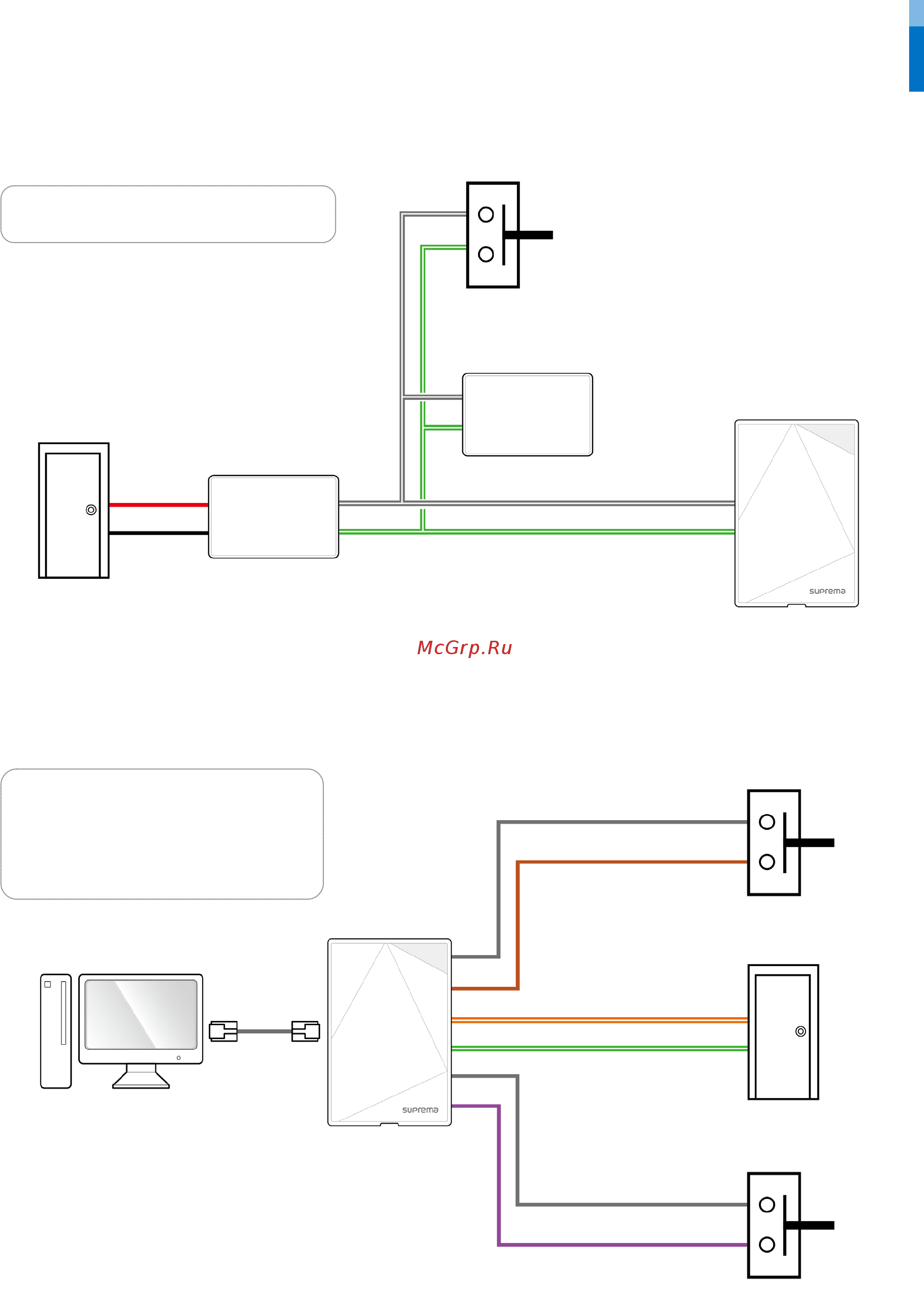

Connecting to an Automatic door
Connecting as a standalone
Door button
Door sensor
Door
Input 1
Relay
Input 0
2
7
17
16
2
6
Xpass S2
2 - TTL GND Gray
6 - TTL IN0 Purple
7 - TTL IN1 Brown
16 - RLY COM Green (White stripe)
17 - RLY NC Orange (White stripe)
PC
15 - RLY NO Gray (White stripe)
16 - RLY COM Green (White stripe)
Xpass S2
Sensor
Automatic door
controller
Door button
Door lock
15
16
