Installation

Connecting to Secure I/O 2

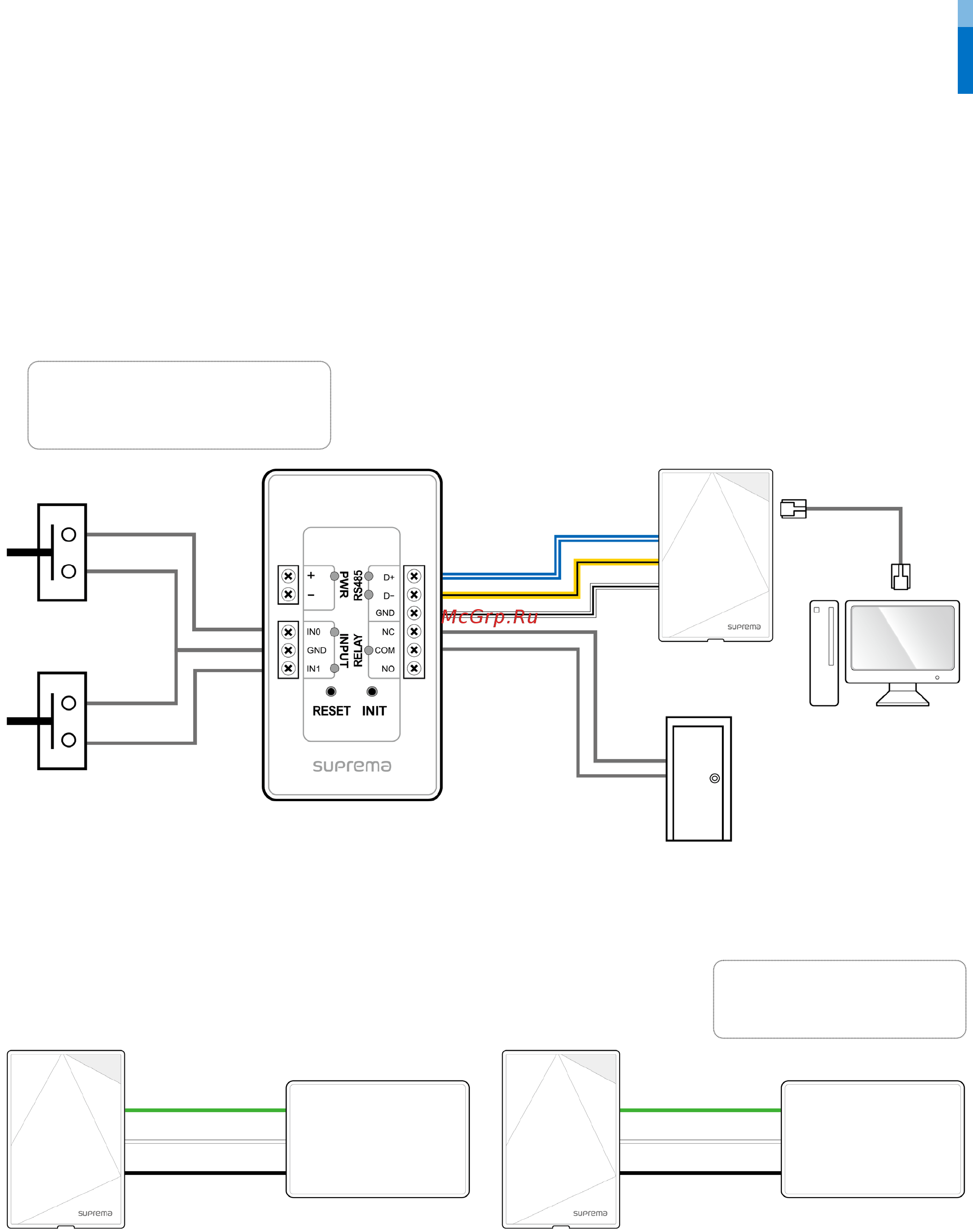

Refer to the following figure for connecting.

• RS-485 should be AWG24, twisted pair, and maximum length is 1.2 km.

• Connect a termination resistor (120Ω) to both ends of a RS-485 daisy chain connection. It should be installed at both ends

of the daisy chain. If it is installed in the middle of the chain, the performance in communicating will deteriorate because it

reduces the signal level.

• Up to 32 devices can be connected via daisy chain (1 master device and 31 other devices).

Connecting as a Wiegand device

RFID reader

1 - WG GND Black

4 - WG D0 Green

5 - WG D1 White

Controller

Xpass S2

Using as a Wiegand output device

Using as a Wiegand input device

Door lock

Input 0

Door button

Door sensor

Input 1

3 - 485 GND White (Black stripe)

8 - 485 TRXP Blue (White stripe)

9 - 485 TRXN Yellow (Black stripe)

Xpass S2

Secure I/O 2
