8 NX504E/FX504E
English
This document uses the following inline graphics and conventions to indicate operations
using the buttons on the operation panel.
Number Inline graphic Description of operation
1
MENU
Short press This displays the main menu screen.
2
DISP
Short press This switches to the audio screen.
3
VOL+
VOL-
Short press Use this to adjust the volume of the audio-visual
function.
4
Smart Access
Short press This starts up Smart Access.
5
POWER
Short press This turns off the screen and stops audio output.
6
— Touch This is the monitor and touch panel. This
functions as a touch panel by touching the
screen when it is displayed.

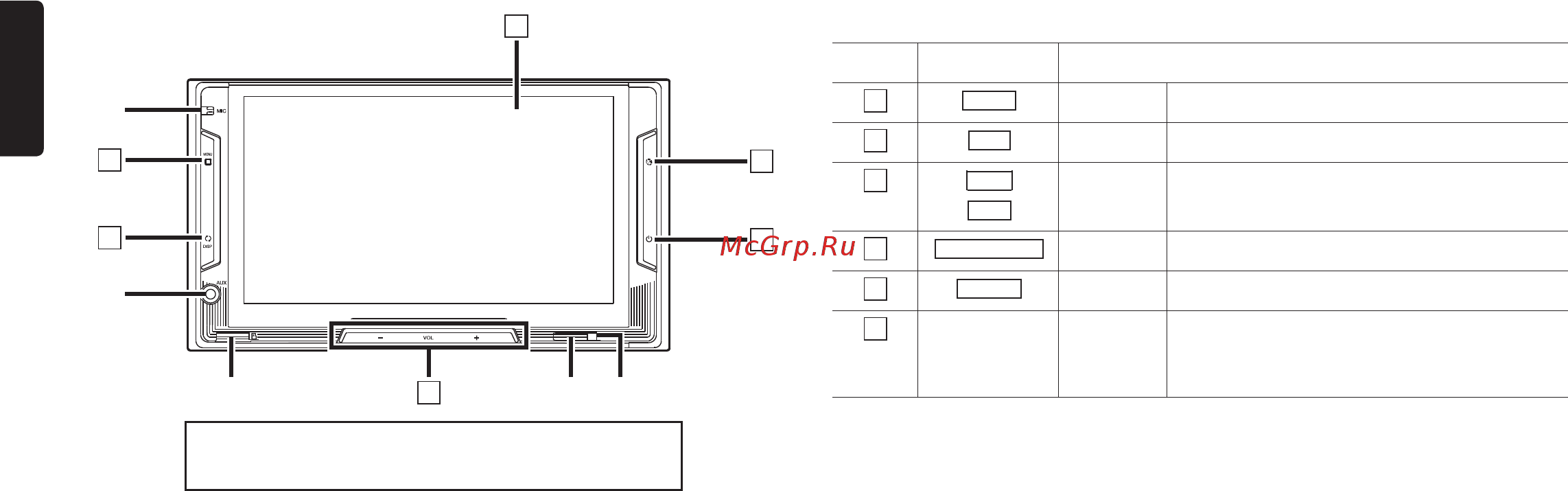

FX504E
1
4
5
✽
3
✽
1
✽
2
2
✽
5
✽
4
3
6
Insert and remove the microSD card after turning off
the unit, because the microSD card might get damage.
✽
1 This is the built-in microphone. This is used as the microphone for the hands free function
when the unit is connected to a Bluetooth compatible cellphone by a wireless connection.
✽
2 This is the AUX terminal. Audio and video from external devices connected to this terminal can
be played when the audio mode is switched to AUX.
P.25
✽
3 This is where the microSD card is inserted to enjoy data in microSD cards.
P.10
✽
4 This is the remote control sensor. This receives the signal from the remote control (sold
separately).
✽
5 This is the Antitheft Indicator. This light blinks when the Antitheft Activation setting is set to “ON”
to indicate that the antitheft function is activated.
P.39
