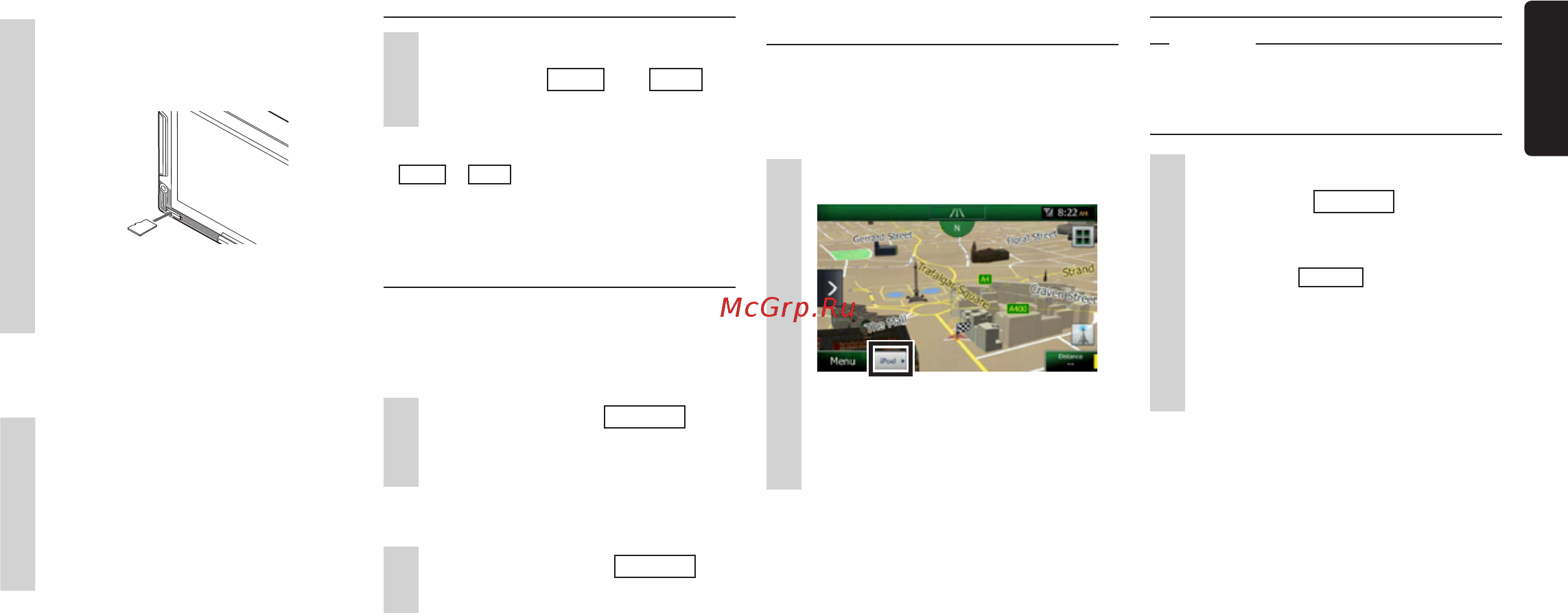

NX504E/FX504E 11
English
❏
How to insert the microSD card
1
Insert the microSD card into the
loading slot with its label surface
face down.
Firmly insert the microSD card as far
as it can go until you hear it click in
place.
❏
How to remove the microSD
card
1
Push in the microSD card.
The microSD card springs out slightly.
2
Remove the microSD card.
To remove the microSD card, grip it
with your fingers and pull it out. The
microSD card might spring out.
Adjusting the audio volume
1
Turn the rotary volume knob
(NX504E) or
VOL+
and
VOL-
(FX504E).
MEMO:
•
VOL+
or
VOL-
changesthevolume
continuously.(FX504Eonly)
Switching the display screen
(NX504E only)
The audio screen and map screen are
switched by the following operation.
❏
Switching to the audio screen
1
In the map screen
NAVI AV
The audio screen of the selected
source is displayed.
❏
Switching to the map screen
1
In the audio screen
NAVI AV
The map screen is displayed.
Displaying the AV control bar
(NX504E only)
The AV control bar for quickly accessing
audio-visual functions can be displayed.
Display content differs according to the
currently selected audio-visual type.
1
AV control bar display key
The AV control bar of the currently
selected audio-visual is displayed. To
hide the AV control bar, touch the bar
display key.
Turning off the screen
Notice
•Whilethescreenisoff,thevoiceguidance
ofthenavigationdoesnotwork.(NX504E
only)
1
Press the rotary volume knob
(NX504E) or
POWER
(FX504E).
The screen turns off.
Press the rotary volume knob
(NX504E) or
POWER
(FX504E) again
to display the screen as before.
When the audio screen is previously
displayed, the audio main menu
screen of the selected source is
displayed.
MEMO:
•Thescreentemporarilyturnsonwhenyou
receiveacallorusethecamera.
