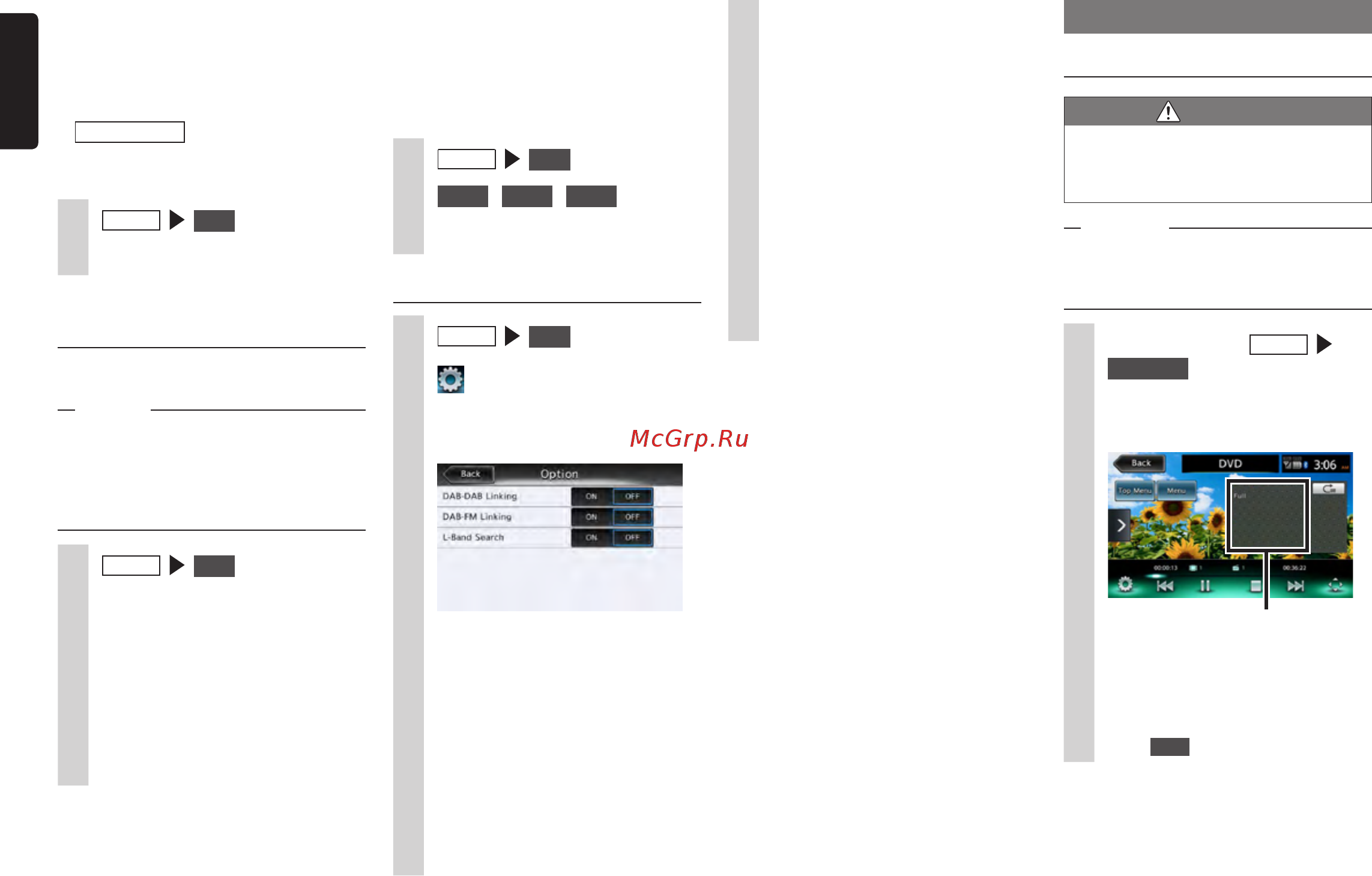

14 NX504E/FX504E
English
Viewing DVDs (
NX504E
only)
Playing DVDs
WARNING
• If the driver wants to view video on
a DVD, he or she should always stop
at a safe place before doing so.
Notice
•Forsafety’ssake,viewvideoonaDVD
onlywhenthevehiclehasstopped.While
youaredriving,youcanenjoyonlyaudio.
1
Load the DVD, or
MENU
DVD / CD
The DVD loaded in the unit is played.
Menu keys are displayed by touching
the screen.
The screen size and play status
are displayed.
If five seconds passes with no
operations, the keys displayed on
screen are hidden.
To manually hide the keys,
touch Back .
❏
Selecting a service from the
preset service list
If you register services that you often use in
the preset service list, you can select them
from the list to start receiving them.
Preparations
●
Register the service as a preset to select
from the preset service list.
1
MENU
DAB
2
Select the desired service.
Registering the service as a
preset
Up to six services can be registered as
presets in each band.
Notice
•Secondaryservicescannotberegistered
aspresets.Onlyprimaryservicesare
registeredeveniftheserviceisregistered
whilethesecondaryserviceisbeing
received.
1
MENU
DAB
2
Receive the service you want to
register.
3
Long press the service to be
overwritten in the preset service
list until you hear a sound.
The station currently being received is
overwritten to and registered to that
service.
❏
Using reception bands
When the service differs according to
region, reception bands can be switched
and used at the touch of a button by setting
preset services in that area to each of
DAB1, DAB2, and DAB3.
1
MENU
DAB
2
DAB1
,
DAB2
,
DAB3
The preset service list display is
switched.
DAB Settings
1
MENU
DAB
2
3
Set the functions using
respective keys.
DAB-DAB Linking:
Select whether to automatically
search for an alternative DAB
service if the current DAB signal
reception is bad. (Default: ON)
This function does not operate
while receiving a secondary
service.
Even if the reception of the original
service comes back, the alternative
service is not switched to the
original automatically.
DAB-FM Linking:
Select whether to temporarily
switch the audio output to RDS
if DAB signal reception is bad.
(Default: ON)
This function does not operate
while receiving a secondary
service.
If the DAB signal reception comes
back or an available DAB service is
found by “DAB-DAB Linking”, the
service is switched automatically.
L-Band Search:
Select whether to add L-Band to
the selectable frequency range.
(Default: ON)
