12
TASCAM CD-9010CF
2 – Names and Functions of Parts
; POWER switch
Turns the power ON or OFF.
CAUTION
Before turning on the power, turn down the volume of other
equipment connected to this unit. Failure to do so might cause
sudden loud sounds, which could harm your hearing or result in
other trouble.
z AC IN connector
Connect the included power cord here.
x KEYBOARD connector
Connect a USB keyboard here.
By default, the unit is set to use a Japanese keyboard. To use
a US English keyboard, which is arranged differently from
Japanese keyboards, change the setting in the
SYSTEM
menu.
(See “Setting the keyboard language” on page 47.)
CAUTION
Do not connect any USB device other than a USB keyboard here.
c REMOTE (PARALLEL)
This D-sub 37-pin I/O connector is for parallel control.
Use it for external control, including fader starting. (See
"Using the parallel connector" on page 50.)
v REMOTE (SERIAL)
This D-Sub 15-pin I/O connector is for serial control.
Connect a TASCAM RC-9010/RC-9010S remote control (sold
separately) here.

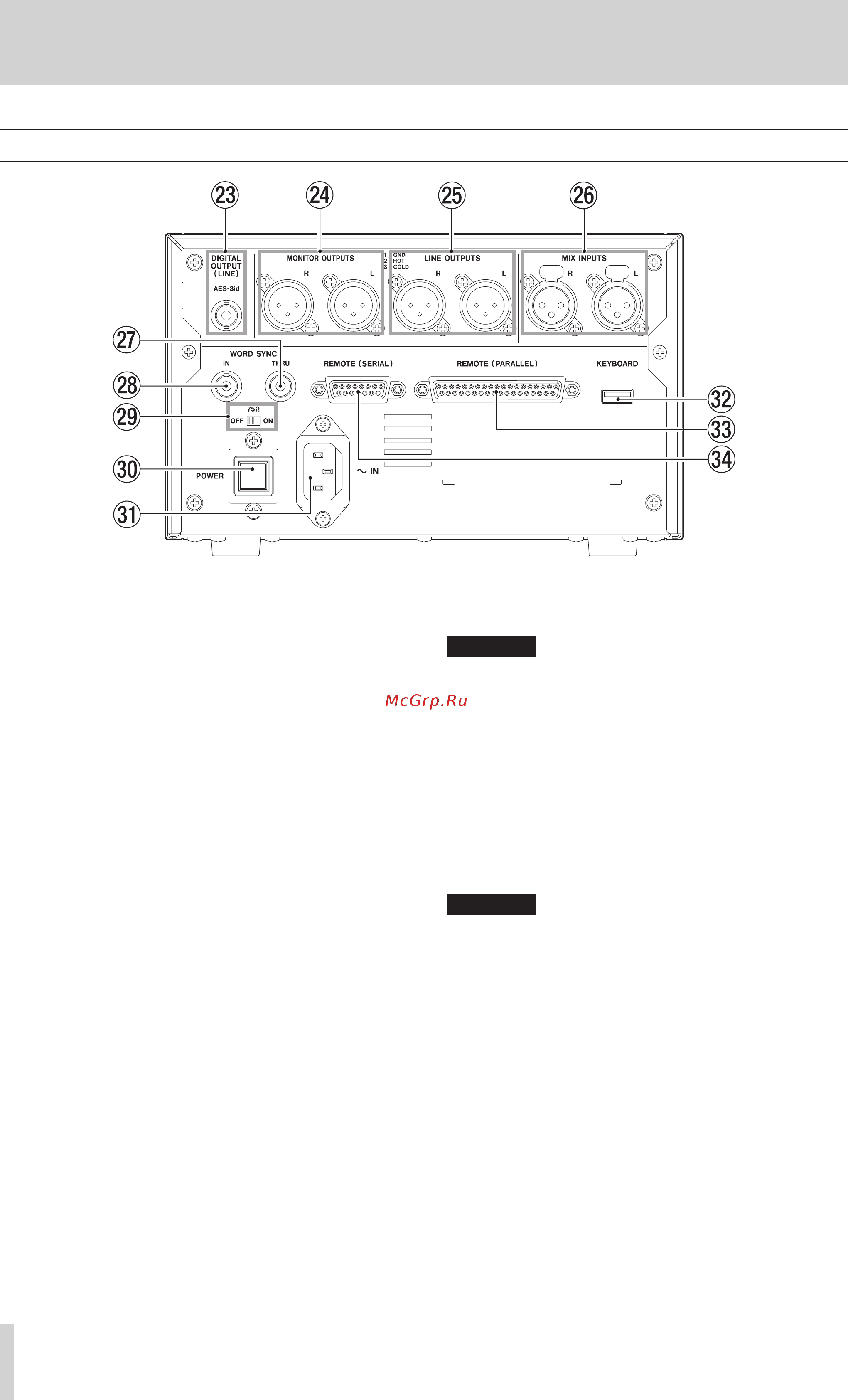

Rear panel
d DIGITAL OUTPUT
This is an AES-3id digital output.
The digital output signal depends on the master clock
setting. (See "Setting the master word clock" on page 43.)
f MONITOR OUTPUTS (R/L) (balanced)
These balanced analog XLR outputs can be connected to a
monitoring system.
The nominal output level is +4 dBu (or +6 dBu only when the
maximum output level is +15 dBu).
(1: GND, 2: HOT, 3: COLD)
g LINE OUT OUTPUTS (R/L) (balanced)
These are balanced analog XLR outputs.
The default nominal output level is +4 dBu (+6 dBu only
when the maximum output level is +15 dBu), but can be set
to –20 dBu.
(1: GND, 2: HOT, 3: COLD)
h MIX INPUTS (R/L) (balanced)
These balanced analog XLR inputs are used for mix input
with a nominal output level of +4 dBu.
(1: GND, 2: HOT, 3: COLD)
Signals input here are mixed with the playback signal from
the CD or CF card and output from the LINE OUTPUTS.
Even when the power is off, signals input here will be output
unchanged through the LINE OUTPUTS.
j WORD SYNC THRU
The input word clock signal is thru output from this
connector, allowing it to be sent to other digital devices.
k WORD SYNC IN
Input a word clock signal through this connector. When
this unit is set to use an external clock (EXT), the word clock
input through this connector is used.
l 75Ω (ON/OFF) switch
Turns the 75Ω word clock terminator ON or OFF.
