22
TASCAM DP-24SD
3 – Names and Functions of Parts
& MONITOR LEVEL knob
Use this knob to adjust the output level of the output
signals.
* MARK SET button
During recording or playback, press this button to set a mark
manually. (See “Location marks” on page 44.)
( AUTO PUNCH button/indicator
Press this button to turn the auto punch mode on and off.
When auto punch mode is turned on,
Auto Punch
is
displayed on the Home screen. (See “Automatic punching in
and out” on page 46.)
) IN button
Press this button to locate the IN point.
Press and hold the MARK SET button and press this button
to set the IN point.
Press and hold the JUMPBACK (PREVIEW) button and
press this button to perform the pre-roll playback up to the
current position and stop. (See “Checking cueing points
(preview)” on page 46.)
Q REHEARSE button/indicator
Use this button to turn the Rehearse mode on and off. In
addition to auto punch in/out, you can also use the Rehearse
mode for ordinary recording. (See “Rehearsing the recording”
on page 39.)
W OUT button
Press this button to locate the OUT point.
Press and hold the MARK SET button and press this button
to set the OUT point.
Press and hold the JUMPBACK (PREVIEW) button and
press this button to perform the post-roll playback from the
current position, return and stop. (See “Checking cueing
points (preview)” on page 46.)
E REPEAT button/indicator
Press to this button to turn Repeat Playback mode on and
off. (See “Using repeat playback” on page 46.)
R JUMPBACK (PREVIEW) button
Press this button to rewind the specified number of seconds
from the current position and start playback. (See “Jumpback
playback” on page 46.)
T REC SAFE button
Press to disable recording on all tracks.

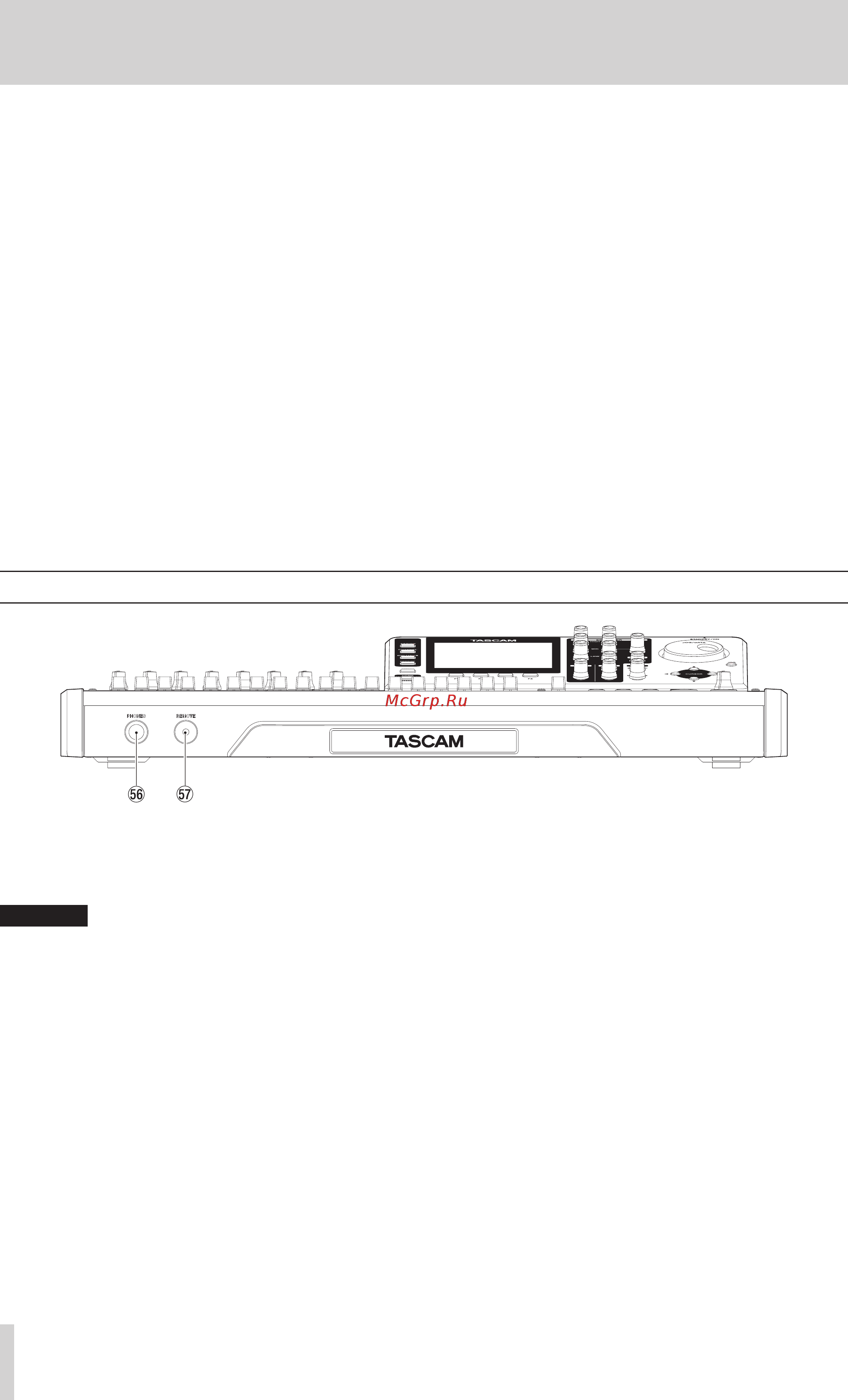

Front panel
Y PHONES jack
Use this stereo standard jack to connect stereo headphones.
Use the MONITOR LEVEL knob on the top panel to adjust
the volume.
CAUTION
Before connecting headphones, use the MONITOR LEVEL
knob on the top panel to set to the volume to minimum. A
loud noise could occur, resulting in damages to equipment
and people's hearing.
U REMOTE jack (2.5mm dia. TRS jack)
Connect the TASCAM RC-3F foot switch (sold separately).
This allows you to remotely control a variety of operations,
including punch in/out (start and stop recording).
