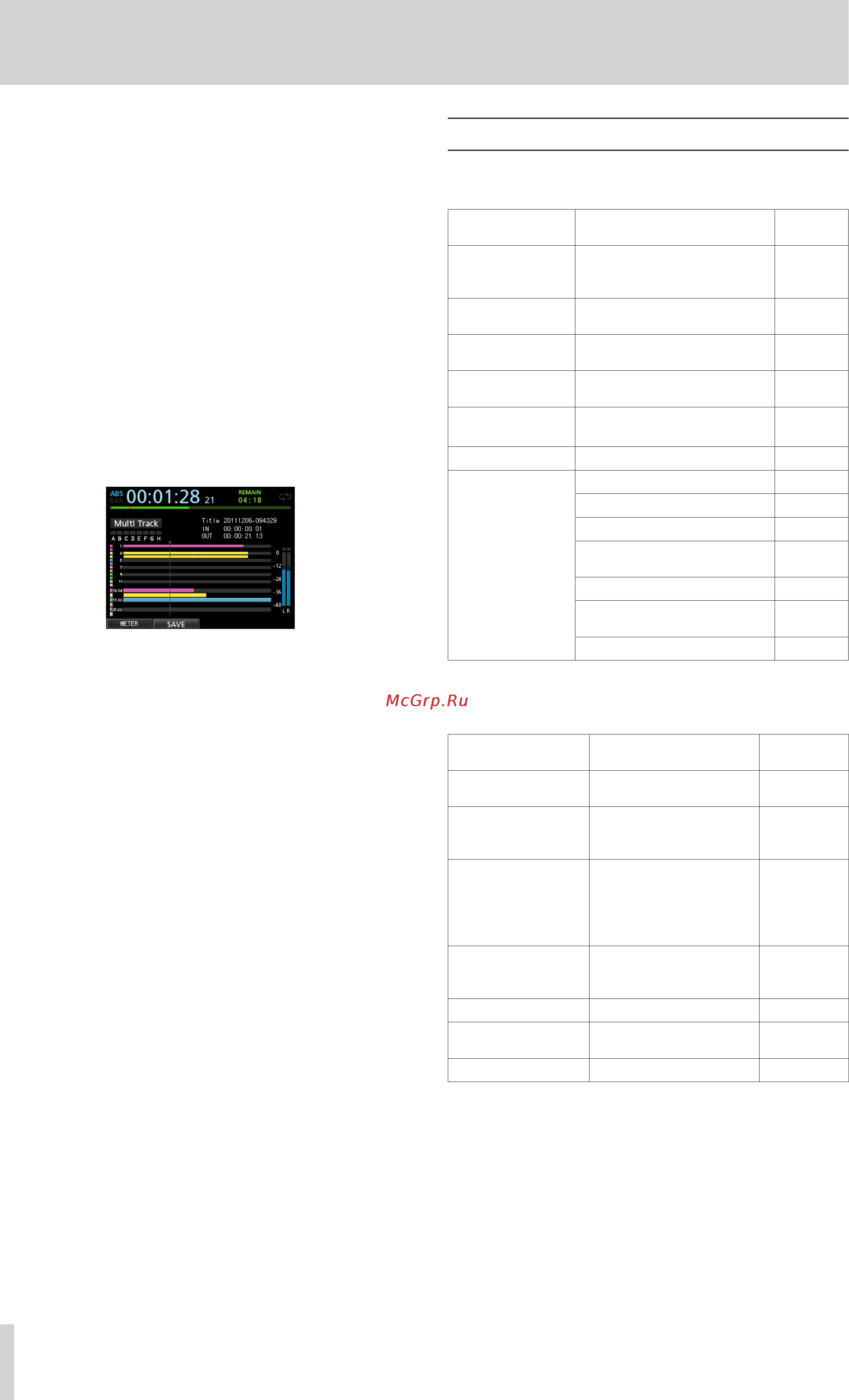

24
TASCAM DP-24SD
3 – Names and Functions of Parts
8 Track level meter
Displays input signal levels during recording and playback
signal levels during playback.
9 Song name display
Displays the song name during playback.
0 IN/OUT point time display
Press and hold the MARK SET button and press the IN or
OUT button to display the set IN or OUT point.
q Stereo level meter
Displays the signal level output from the STEREO OUT jacks.
w TIMELINE/METER display
When the level meter is displayed on the recorder track
section of the Home screen, press the F1 (
TIMELINE
)
button to change from level meter display to time line
display.
When the time line is displayed on the recorder track section
of the Home screen, press the F1 (
METER
) to change from
time line display to level meter display.
Timeline display on the Home screen
e SAVE display
Press the F2 (
SAVE
) button to open the
SONG SAVE
(Saving a song) pop-up window.
Menu structure
Press the MENU button to open the
MENU
screen.
The menu contains the following items.
Menu item Function
Reference
page
SONG
Performs song loading, saving
and creation, and other
song-related operations.
page 32
AUDIO DEPOT
Performs import and export of
WAV files.
page 68
INFORMATION
Provides information about a
song, file, and system.
page 64
TUNER
Performs the tuning of musical
instruments.
page 62
USB
Performs USB settings. page 67
FORMAT
Formats SD cards. page 65
PREFERENCE
Setting the date and time page 27
Adjusting the contrast page 29
Peak hold display page 37
Using a foot switch to punch
in/out
page 42
jumpback playback page 46
Setting automatic power
saving
page 63
Setting automatic monitoring page 63
You can also use dedicated buttons to open specific setting
screens.
The menu contains the following items.
Button Function
Reference
page
ASSIGN
Assigns track sources to
INPUT A to H.
page 35
MIXER
Displays the Mixer screen
to make equalizer settings
for tracks and inputs.
page 37,
page 55
DYNAMICS
Assigns dynamic
type effects such as
compressor, etc., and
makes parameters
settings.
page 53
EFFECT
Assigns each type of effect
and makes parameter
settings.
page 53
BOUNCE Performs track bouncing. page 43
MIXDOWN/
MASTERING
Creates and adjusts
master files.
page 57
METRONOME Sets the metronome. page 61
