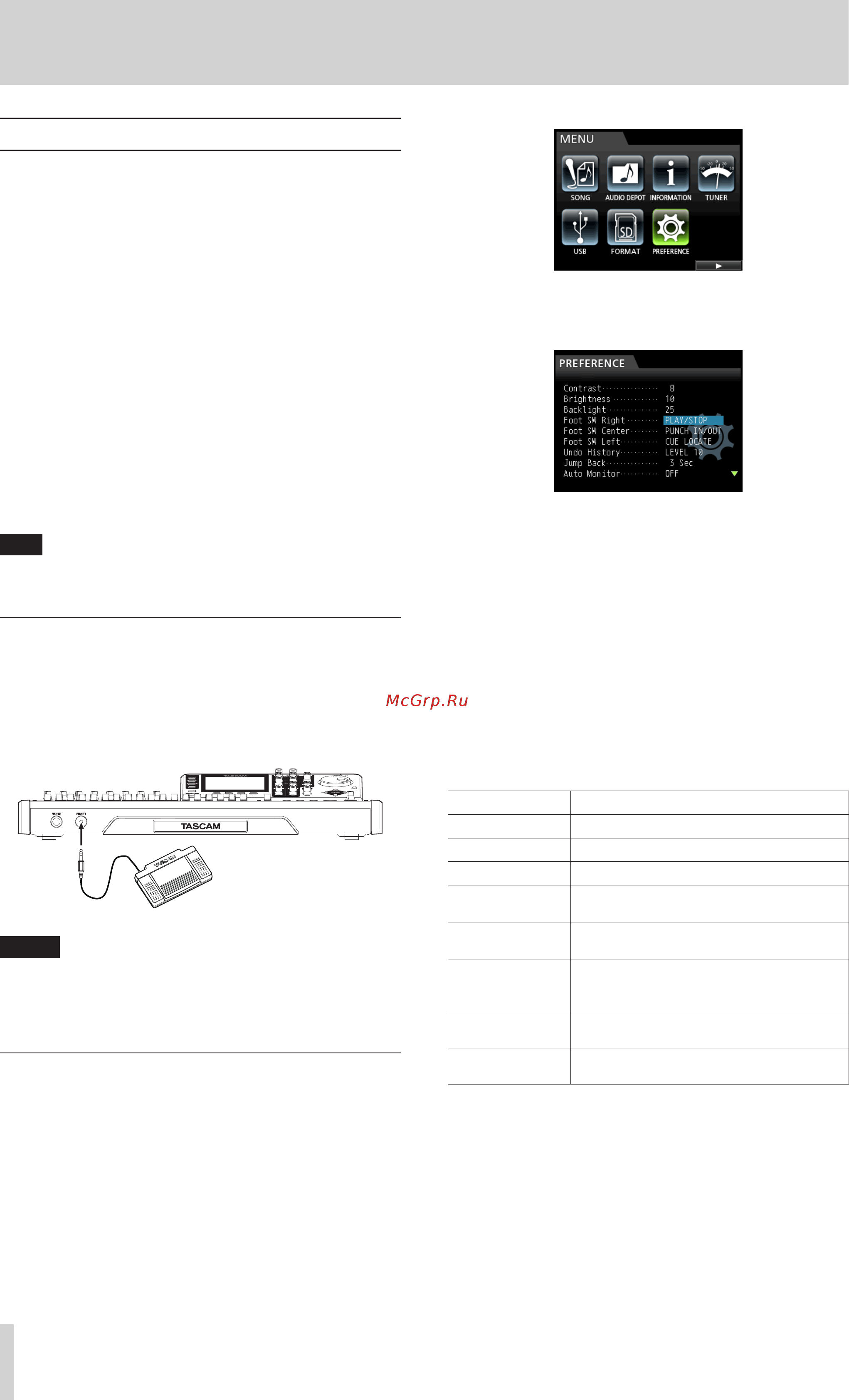

![Tascam DP-24SD [42/80] Recorder functions](/views2/1553216/page42/bg2a.png)
42
TASCAM DP-24SD
7 - Recorder Functions
Punching in and out
Punching in/out is a technique to replace a part of an already
recorded track.
Start playback and when you reach the part that you want
to replace, switch to record (punch in), then switch back to
playback (or stop) when you finish the part that you want to
replace (punch out).
1. Decide what part of the track you plan to replace.
Choose a point to begin where the new recording can sit
well with the existing recording.
2. Press the REC buttons of the tracks that you want to replace
to put them into recording standby (REC buttons start
flashing).
3. Start playback before the part you want to replace.
4. When the part you want to replace is reached, press the
RECORD (0) button and start your performance.
The unit switches to recording (punch in).
5. When you finish the replacement recording, press the PLAY
(7) button.
The unit switches to playback (punch out).
TIP
You can also press the STOP (8) button to punch out at the
end of the replacement recording.
Using a foot switch to punch in/out
You can connect the dedicated foot switch (TASCAM RC-3F) to
the REMOTE jack on the front panel and use it to punch in and
out.
In step 4 above, step on the foot switch instead of pressing the
RECORD (0) button, and in step 5, step on the foot switch
again instead of pressing the PLAY (7) button.
Foot switch
TASCAM RC-3F (Optional)
NOTE
Step on the switch (pedal) that you have set to
PUNCH
IN/OUT
in the foot switch settings. In the initial settings,
the pedal C (center) is set to
PUNCH IN/OUT
. (See
"Setting the foot switch" below.)
Setting the foot switch
Set the foot switch on the
PREFERENCE
screen.
1. When the recorder is stopped, press the MENU button to
open the
MENU
screen.
2. Use the JOG/DATA dial or the CURSOR (5/b/g/t)
buttons to select (green highlight)
PREFERENCE
, and
then press the F4 (t) button.
The
PREFERENCE
screen appears.
3. Use the CURSOR (5/b) buttons to select (blue highlight)
Foot SW Right
.
4. Use the JOG/DATA dial to select the function that you want
to assign to the pedal R (right) of the TASCAM RC-3F foot
switch.
Options:
PLAY
,
REC
,
STOP
,
FF
,
REW
,
PUNCH IN/
OUT
,
PLAY/STOP
(Default: Pedal R),
CUE
LOCATE
5. In the same way, set the functions for the pedal C (center) in
Foot SW Center
, and for the pedal L (left) in
Foot
SW Left
.
Options:
PLAY
,
REC
,
STOP
,
FF
,
REW
,
PUNCH IN/
OUT
(Default: Pedal C),
PLAY/STOP
,
CUE
LOCATE
(Default: Pedal L)
6. After making the settings, press the HOME button to return
to the Home screen.
8
Foot switch function list
Function Description
PLAY
Same as the unit's PL AY (7) button
REC
Same as the unit's RECORD (0) button
STOP
Same as the unit's STOP (8) button
FF
Same as the unit's F FWD (,) (TO LAST
REC) button
REW
Same as the unit's REW (m) (TO ZERO)
button
PUNCH IN/OUT
Punches in when pressed during playback,
punches out when pressed during
recording.
PLAY/STOP
Starts playback when stopped, stops in
other states.
CUE LOCATE
Locates the last point where playback
started.
